mpn:
brand:
manufacturer:
MPN:
Description:

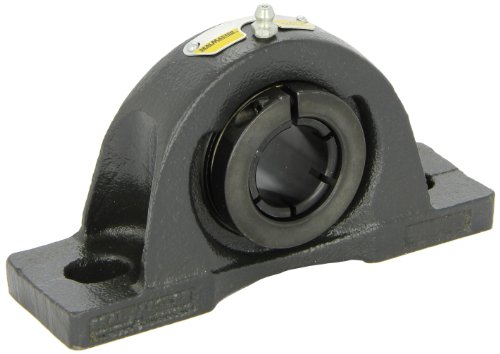

Sealmaster NP-39T CXU, Two Bolt Pillow Block Bearing, 2.4375'' Diameter, Skwezloc Locking, Cast Iron Housing, Standard Felt Seal
Weight:
14.55
Weight:
14.55 LB
Preferred Price:
455.52
Price:
455.52
Min Simple Price:
257.36
Absolute Min Price:
365.45
Min Price:
365.45
qty:
21
simpleSku:
MDk1MQ:::NP-39T CXU
sku:
MDk1MQ::AA:NP-39T CXU@y0
condition:
11
seller:
Lily Bearing
amzMan:
sealmaster
HazMat:
False
DropShip:
True
Attributes
| Key ^ | Value |
|---|---|
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| base to bore centerline:, base width: | 2.7500 in |
| Base to Center Height | 2.75 Inch | 69.85 Millimeter |
| bolt center-to-center length: | 6.8750 to 7.6250 in |
| bolt size: | .6250 in |
| Bolt Spacing Maximum | 7.625 Inch | 193.675Millimeter |
| Bolt Spacing Minimum | 6.875 Inch | 174.625Millimeter |
| bore diameter: | 2.4375 in |
| bore type: | Round |
| Brand, Manufacturer | Sealmaster |
| Category | Pillow Block Bearings |
| Duty Series | Standard |
| duty type: | Normal Duty |
| Estimated Weight | 14.55 |
| Expansion / Non-expansion | Non-expansion |
| expansion type: | Non-Expansion Bearing (Fixed) |
| finish/coating: | Uncoated |
| Global Part Number GPN | 6620 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Housing Configuration | 1 Piece Solid |
| Housing Material, housing material: | Cast Iron |
| Housing Style | 2 Bolt Pillow Block |
| Inch - Metric | Inch |
| Insert Material | Cast Steel/Black Oxide |
| Insert Part Number | 2-27T-CXU |
| Length Thru Bore | 2.563 Inch | 65.09 Millimeter |
| Locking Device, locking device: | Skwezloc |
| lubrication type: | Lubrication Fitting |
| manufacturer catalog number: | 713800 |
| Manufacturer Name | REGAL BELOIT |
| Mounting Bolts | 5/8 Inch |
| Mounting Method | Concentric Collar |
| mounting: | Two-Bolt Base |
| Nominal Bolt Center to Center | 7.3 Inch | 184 Millimeter |
| Number of Mounting Holes | 2 |
| operating temperature range: | Max 200 |
| Other Features | Single Row | Standard Duty | Air Handling Duty | Skwezloc | Has Flinger |
| overall height: | 3.3125 in |
| overall length: | 3.7031 in |
| overall width: | 2.6250 in |
| Part Number, title | NP-39T CXU |
| price | $ 302.78 / each |
| Relubricatable | Yes |
| replacement bearing:, Replacement Insert | 2-27T ATO |
| Seal Type | Standard Felt Seal |
| seal type: | Felt Seal |
| Seals | Felt Labyrinth |
| series: | NP |
| Shaft Diameter (in) | 2.4375 |
| Type | Two Bolt Pillow Block |
| UNSPSC | 31171511 |
| Weight / kgm | 6.77 |
| Weight / LBS | 14.9 |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | Lily Bearing | NP-39T CXU | 257.36 | 257.36 | 1 | In Stock | SEALMASTER | 14.894 | 257.36 @ Qty: 1+ | |
 | motorsandcontrol.com | NP-39T CXU | 384.5 | 384.5 | 1 | In Stock | Sealmaster | 14.55 | 384.5 @ Qty: 1+ | |
| us.rs-online.com | 73758293 | 400.08 | 400.08 | 1 | In Stock | Sealmaster | 400.08 @ Qty: 1+ | |||
 | motionindustries.com | 01621638 | 503.08 | 503.08 | 1 | In Stock | Sealmaster | 503.08 @ Qty: 1+ |
