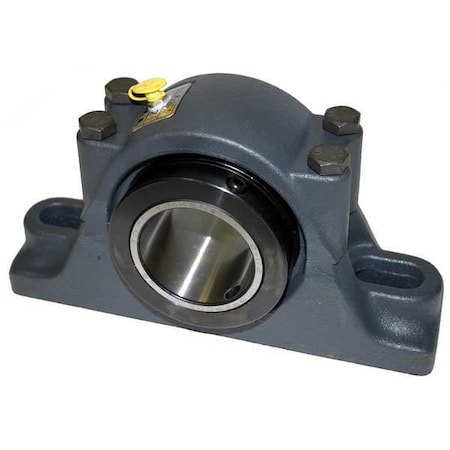

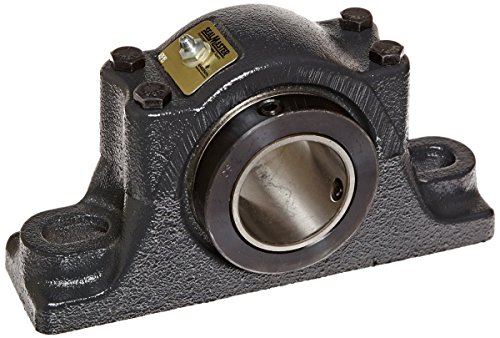

Sealmaster RPB 308-C4

Sealmaster RPB 308-C4 Pillow Block Tapered Roller Bearing, Non-Expansion Type, Heavy-Duty, Regreasable, Concentric Double Set-Screw Collar, Contact Seals, Cast Iron Housing, 3-1/2" Bore, 3-3/4" Base to Center Height, 11-1/32" Bolt Hole Spacing Width, ?3 degrees Misalignment Angle

Sealmaster RPB 308-C4 Pillow Block Tapered Roller Bearing, Non-Expansion Type, Heavy-Duty, Regreasable, Concentric Double Set-Screw Collar, Contact Seals, Cast Iron Housing, 3-1/2" Bore, 3-3/4" Base to Center Height, 11-1/32" Bolt Hole Spacing Width, ?3 degrees Misalignment Anglezoom

Attributes

Key Value
Base Height2.063 in
base to bore centerline:3.7500 in
Base Width4.5 in
base width:4.5000 in
Bearing Housing Materia.Cast Iron
Bearing Insert TypeTapered Roller
bearing type:Tapered Roller
bolt center-to-center l.10.5625 to 11.5000 in
Bolt Size5/8 in
bolt size:.6250 in
Bore Dia.3 1/2 in
Bore Diameter3 1/2 in
bore type:Round
Center Height3.75 in
Dimension A3 3/4 in
Dimension B13 3/4 in
Dimension C10-9/16 in to 11-1/2 in
Dimension D4 1/2 in
Dimension E1 37/64 in
Dimension G2 1/16 in
Dimension H7 3/4 in
Dimension J5 in
Dimension L5 35/64 in
duty type:Standard Duty
expansion type:Non-Expansion Bearing (.
finish/coating:Uncoated
housing construction:Split Pillow Block
housing material:Cast Iron
locking device:Double Set Screw
lubrication type:Lubrication Fitting
manufacturer catalog nu.551278
Mount Hole Center-to-Ce.10 9/16 in
Mount Hole Center-to-Ce.11 1/64 in
Mounting Bolt Size5/8 in
mounting:Four-Bolt Base
operating temperature r.Max 250
Overall Height7 3/4 in
Overall Length13 3/4 in
Overall Width5 in
overall width:5.0000 in
replacement bearing:RCI-308
seal type:Contact Seal
series:RPB
Shaft Locking TypeSet Screws
standards met:ABMA, ISO

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomMRO Supply22556251531.441In StockSealMaster1531.44 @ 1
us.rs-online.com737588431803.681In StockSealmaster1803.68 @ 1
thumbzoommotionindustries.com005959431959.891In StockSealmaster1959.89 @ 1
thumbzoomZoroG02783762177.341In Stock15Sealmaster59.62177.34 @ 1
