Sealmaster SRF-10

B008G0BYPQ

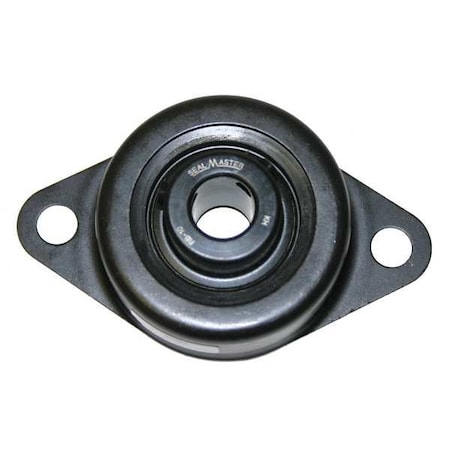

Sealmaster SRF-10 Standard-Duty Flange Unit, 2 Bolt, Rubber Mounted, Felt Seals, Setscrew Locking Collar, Pressed Steel Housing, 5/8" Bore, 4-1/2" Overall Length, 3-5/8" Bolt Hole Spacing Width, ?2 Degrees Misalignment Angle

Sealmaster SRF-10 Standard-Duty Flange Unit, 2 Bolt, Rubber Mounted, Felt Seals, Setscrew Locking Collar, Pressed Steel Housing, 5/8" Bore, 4-1/2" Overall Length, 3-5/8" Bolt Hole Spacing Width, ?2 Degrees Misalignment Anglezoom

Attributes

Key Value
Bearing Housing Materia.Pressed Steel
Bearing Insert Material52100 Chrome Steel
Bearing Insert TypeBall
Bearing TypeTwo Bolt Flange
Bolt Hole Center-to-Cen.3 5/8 in
Bolt Size3/8 in
Bore Dia.5/8 in
Bore Diameter5/8 in
Dimension A4 1/2 in
Dimension B3 5/8 in
Dimension D1 1/16 in
Dimension E1 9/32 in
Dimension G1 13/32 in
Dimension H7/8 in
Dimension J2 45/64 in
Dimension M2 41/64 in
Duty SeriesStandard
Estimated Weight1.00
Family SeriesSealmaster Bearings, SR.
Gross Weight0 lbs
Housing MaterialRubber
Insert MaterialCast Steel/Black Oxide,.
Item NumberSRF-10
Locking DeviceSetscrew, Set Screw
ManufacturerSealmaster
Manufacturer Part Number700665
Mount Hole Center-to-Ce.3.625 in
Mount Hole Center-to-Ce.3.625 in
Mount Hole Size7/16 in
Mounting Bolt Size7/16 in
Net Weight0.0625 lbs
Overall Height2 45/64 in
Overall Length4 1/2 in
Overall Width1 3/8 in
Part NumberSRF-10
Product SeriesSRF
Replacement InsertSRC-10
Seal TypeStandard Felt Seal
SeriesSRF
Shaft Diameter (in)0.625 ", 0.625
Shaft Locking TypeSet Screws
Shaft Range0.5-0.99
TypeTwo Bolt Flange
UPC Code662461005460

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomGalcoSRF-10-SMST97.511In StockSealmaster0.062597.51 @ 1
thumbzoommotorsandcontrol.comSRF-1097.511In StockSealmaster1.097.51 @ 1
thumbzoomapexindustrialautomation.comSRF-1097.51162Sealmaster97.51 @ 1
us.rs-online.com72115673104.71In StockSealmaster104.7 @ 1
thumbzoomZoroG8123105122.991In StockSealmaster0.8122.99 @ 1
