Sealmaster SRF-12

B008G0BX3Y

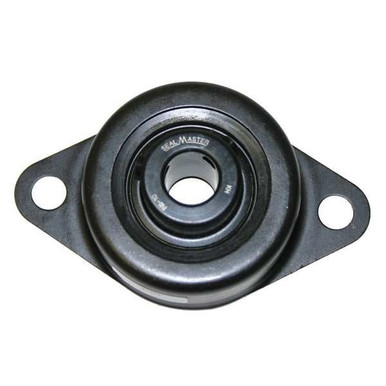

Sealmaster SRF-12 Standard-Duty Flange Unit, 2 Bolt, Rubber Mounted, Felt Seals, Setscrew Locking Collar, Pressed Steel Housing, 3/4" Bore, 4-1/2" Overall Length, 3-5/8" Bolt Hole Spacing Width, ?2 Degrees Misalignment Angle

Sealmaster SRF-12 Standard-Duty Flange Unit, 2 Bolt, Rubber Mounted, Felt Seals, Setscrew Locking Collar, Pressed Steel Housing, 3/4" Bore, 4-1/2" Overall Length, 3-5/8" Bolt Hole Spacing Width, ?2 Degrees Misalignment Anglezoom

Attributes

Key Value
Bearing Housing Materia.Pressed Steel
Bearing Insert Material52100 Chrome Steel
Bearing Insert TypeBall
Bearing TypeTwo Bolt Flange
Bolt Hole Center-to-Cen.3 5/8 in
Bolt Size3/8 in
Bolt Spacing3.625 Inch | 92.08 Mill.
Bore0.75 Inch | 19.05 Milli.
Bore Dia.3/4 in
Bore Diameter3/4 in
BrandSEALMASTER
Cartridge Pilot Depth0 Inch | 0 Millimeter
Cartridge Pilot Diameter0 Inch | 0 Millimeter
CategoryFlange Block Bearings
Current Stock9
Dimension A4 1/2 in
Dimension B3 5/8 in
Dimension D1 1/16 in
Dimension E1 9/32 in
Dimension G1 13/32 in
Dimension H7/8 in
Dimension J2 45/64 in
Dimension M2 41/64 in
Duty SeriesStandard
EAN0662461005477
Estimated Weight1.00
Expansion / Non-expansi.Non-expansion
Family SeriesSealmaster Bearings, SR.
Global Part Number GPN16988
Gross Weight0.78 lbs
Harmonized Tariff Code8483.20.40.40
Housing Configuration1 Piece Solid
Housing MaterialRubber, Stamped Steel
Housing Style2 Bolt Flange Block
Inch - MetricInch
Insert MaterialCast Steel/Black Oxide,.
Insert Part NumberSRC-12
International ShippingNo
Item NumberSRF-12
Lead TimeExpected to ship in 1-2.
Length Thru Bore1.406 Inch | 35.7 Milli.
Locking DeviceSetscrew, Set Screw
ManufacturerSEALMASTER
Manufacturer NameREGAL BELOIT
Manufacturer Part Number700666
Mount Hole Center-to-Ce.3.625 in
Mount Hole Center-to-Ce.3.625 in
Mount Hole Size7/16 in
Mounting Bolt Size7/16 in
Mounting Bolts3/8 Inch
Mounting MethodSet Screw
MpnSRF-12
Net Weight0.725 lbs
Nominal Bolt Circle Dia.3.6 Inch | 90.5 Millime.
Number of Mounting Holes2
Other FeaturesSingle Row | Standard D.
Overall Height2 45/64 in
Overall Length4 1/2 in
Overall Width1 3/8 in
Part NumberSRF-12
Pilot ConfigurationNo Pilot
price$ 71.35 / each
Product SeriesSRF
RelubricatableNo
Replacement InsertSRC-12
Seal TypeStandard Felt Seal
SealsFelt Labyrinth
SeriesSRF
Shaft Diameter (in)0.75 ", 0.75
Shaft Locking TypeSet Screws
Shaft Range0.5-0.99
SKUZO-G5228851
SubCategoryPower Transmission
titleSRF-12
TypeTwo Bolt Flange
UNSPSC31171501
UPC Code662461005477
Weight / kgm0.34
Weight / LBS0.75

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomLily BearingSRF-1260.651In StockSEALMASTER0.74860.65 @ 1
thumbzoommotorsandcontrol.comSRF-1281.241In StockSealmaster1.081.24 @ 1
thumbzoomGalcoSRF-12-SMST86.821In StockSealmaster0.7886.82 @ 1
us.rs-online.com7211567487.211In StockSealmaster87.21 @ 1
thumbzoomRadwellSRF-1290.5815SEALMASTER0.7590.58 @ 1
thumbzoomPurvisSRF-12100.061In StockSealmaster100.06 @ 1
thumbzoomZoroG5228851101.99144Sealmaster0.75101.99 @ 1
thumbzoomsimsupply.comZO-G5228851120.819Sealmaster120.8 @ 1
motionindustries.com00580632130.771In StockSealmaster130.77 @ 1
