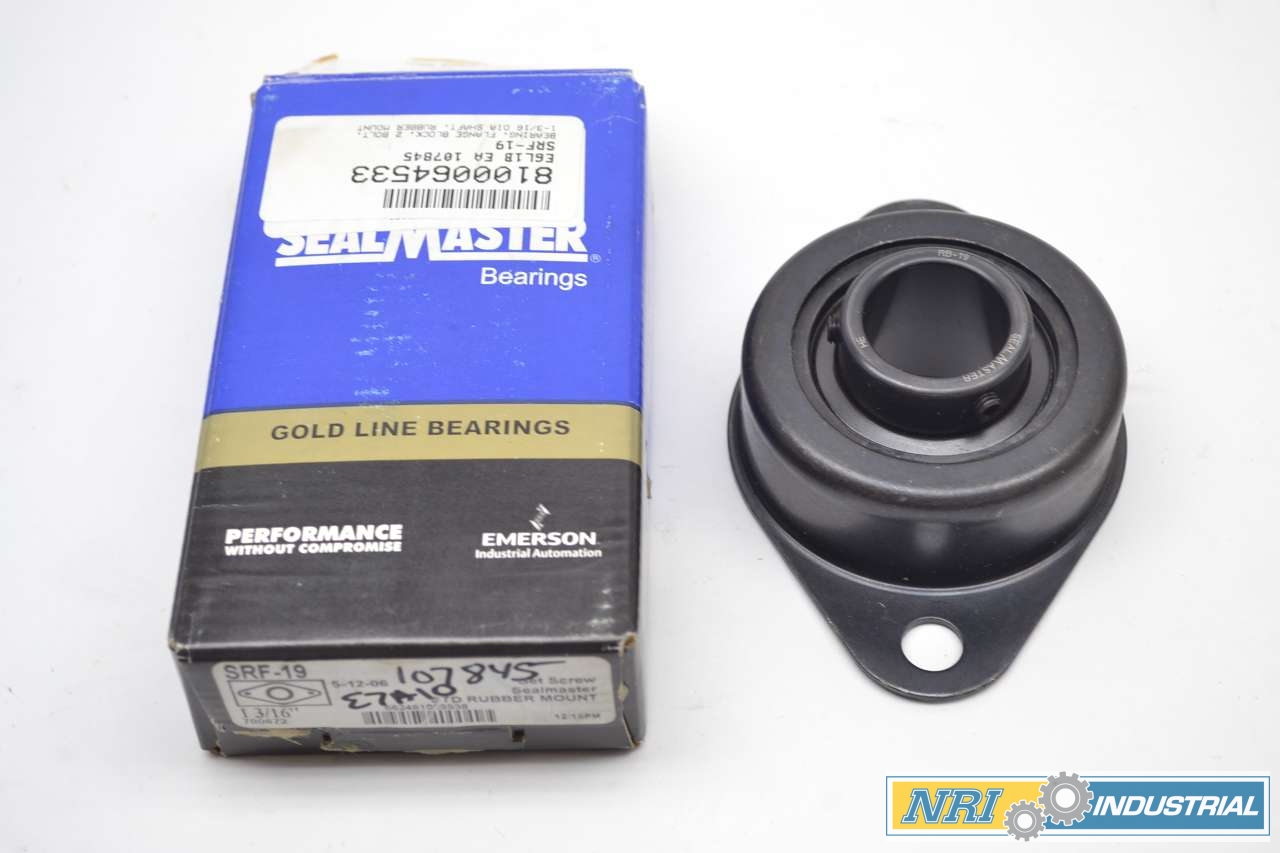

Sealmaster SRF-19

mpnSRF-19
brandname: Sealmaster
manufacturername: Sealmaster

Sealmaster SRF-19 Standard-Duty Flange Unit, 2 Bolt, Rubber Mounted, Felt Seals, Setscrew Locking Collar, Pressed Steel Housing, 1-3/16" Bore, 5-3/8" Overall Length, 4-3/8" Bolt Hole Spacing Width, ?2 Degrees Misalignment Angle

Brand: Sealmaster
PartNumber: SRF-19
Size: ?2 degrees
PackageQuantity: 1
Binding: Misc.
Manufacturer: Regal
Label: Regal

Attributes

Key	Value
Bearing Housing Materia.	Pressed Steel
Bearing Insert Material	52100 Chrome Steel
Bearing Insert Type	Ball
Bearing Lubrication	Sealmaster GoldPlex-HP .
Bearing Material Grade	52100
Bolt Hole Center-to-Cen.	4 3/8 in
Bolt Size	7/16 in
Bolt Spacing	4.375 Inch \| 111.13 Mil.
Bore	1.188 Inch \| 30.175 Mil.
Bore Dia.	1 3/16 in
Bore Diameter	1 3/16 in
Bore Type	Cylindrical
Brand	SEALMASTER
Cartridge Pilot Depth	0 Inch \| 0 Millimeter
Cartridge Pilot Diameter	0 Inch \| 0 Millimeter
Category	Flange Block Bearings
Closure	Double Sealed
Country of Origin (subj.	Multiple
Dimension A	5 3/8 in
Dimension B	4 3/8 in
Dimension D	1 1/4 in
Dimension E	1 5/8 in
Dimension G	1 21/32 in
Dimension H	1 1/16 in
Dimension J	3 1/2 in
Dimension M	3 1/4 in
Duty Series	Standard
Dynamic Load Capacity	600 lb
EAN	0662461005538
Estimated Weight	1.50
Expansion / Non-expansi.	Non-expansion
Features	Lock Pin and Dimple for.
Finish	black oxide
Global Part Number GPN	17000
Harmonized Tariff Code	8483.20.40.40
Housing Configuration	1 Piece Solid
Housing Material	Rubber, Stamped Steel, .
Housing Material Finish	black oxide
Housing Material Grade	52100
Housing Style	2 Bolt Flange Block
Housing Type	Rhombus
Inch - Metric	Inch
Insert Material	Cast Steel/Black Oxide
Insert Part Number	SRC-19
Item	2 Bolt Flange Bearing
Length Thru Bore	1.656 Inch \| 42.06 Mill.
Locking Device	Setscrew
Locking Type	Set Screw
Lubricant Material	NLGI #2 Equivalent
Lubrication Openings	None
Manufacturer	SEALMASTER
Manufacturer Name	REGAL BELOIT
Maximum Speed	5,450 RPM
Maximum Temperature	220 Degrees F
Minimum Temperature	-20 Degrees F
Mount Hole Center-to-Ce.	4.375 in
Mount Hole Center-to-Ce.	4.375 in
Mount Hole Size	1/2 in
Mounting Bolt Size	7/16 in
Mounting Bolts	7/16 Inch
Mounting Method	Set Screw
Nominal Bolt Circle Dia.	4.4 Inch \| 111 Millimet.
Number of Mount Holes	2
Number of Mounting Holes	2
Other Features	Single Row \| Standard D.
Overall Height	3 1/2 in
Overall Length	5 3/8 in
Overall Width	1 21/32 in
Part Number	SRF-19
Pilot Configuration	No Pilot
price	$ 95.23 / each
Relubricatable	No
Replacement Insert	SRC-19
Rolling Element Rows	1
Seal Material	Felt
Seal Type	Contact, Standard Felt .
Seals	Felt Labyrinth
Self Lubricating Bearing	No
Series	SRF
Shaft Diameter (in)	1.1875
Shaft Locking Type	Set Screws
Static Load Capacity	360 lb
Static Radial Load Capa.	2,567 lbf
System of Measurement	Inch
Temp. Range	-20 Degrees to 220 Deg.
title	SRF-19
Type	Two Bolt Flange
UNSPSC	31171501
Weight / kgm	0.681
Weight / LBS	1.5
