Semikron SKKH330/18E

B01JSZM9LU

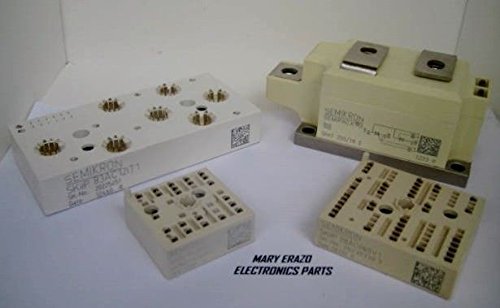

Semikron SKKH330/18E Module Original

Semikron SKKH330/18E Module Originalzoom

Attributes

Key Value
Additional Feature HIGH RELIABILITY, UL R.
ApprovalsUR
Aux. Cathode(s)Yes
Case Connection ISOLATED
CircuitSCR-Diode w/ aux Cathode
Configuration SINGLE WITH BUILT-IN D.
DC Gate Trigger Current. 200 mA
DC Gate Trigger Voltage. 3 V
Desc. of Quick-Connects 2G-2K
Desc. of Screw Terminals A-K-AK
di/dt (Amps/MicroSec.)250
dV/dt (Volts/MicroSec.)1,000
Family SeriesSemikron Danfoss Elektr.
Free Wheeling DiodeNo
Gross Weight1.411 lbs
Holding Current-Max 500 mA
Igt 200 mA
It (avg)305 A
Item Number SKKH330/18E
JESD-30 Code R-XUFM-X5
JESD-609 Code e2
Leakage Current-Max 50 mA
ManufacturerSemikron Danfoss Elektr.
Manufacturer Package Co. CASE A 76B
Manufacturer Part Number SKKH330/18E , 07898560
Mounting Centers80 mm
Net Weight1.411 lbs
Nominal Depth (mm)115 mm
Nominal Height (mm)52 mm
Nominal Width (mm)50 mm
Non-Repetitive Pk On-st. 9.5 kA
Number of Elements 1
Number of Terminals 5
On-State Current-Max 330 kA
Operating Temperature-M. 130 ?C
Operating Temperature-M. -40 ?C
Package Body Material UNSPECIFIED
Package Description FLANGE MOUNT, R-XUFM-X.
Package TypeSEMIPACK3
Product SeriesSKK
ThermistorNo
Tq50 ?s
VaristorNo
Vrrm1,800 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomGalcoSKKH330/18E-SEKG342.411In StockSemikron Danfoss Elektronik1.411342.41 @ 1
