SIEMENS

B07SRW5S6V

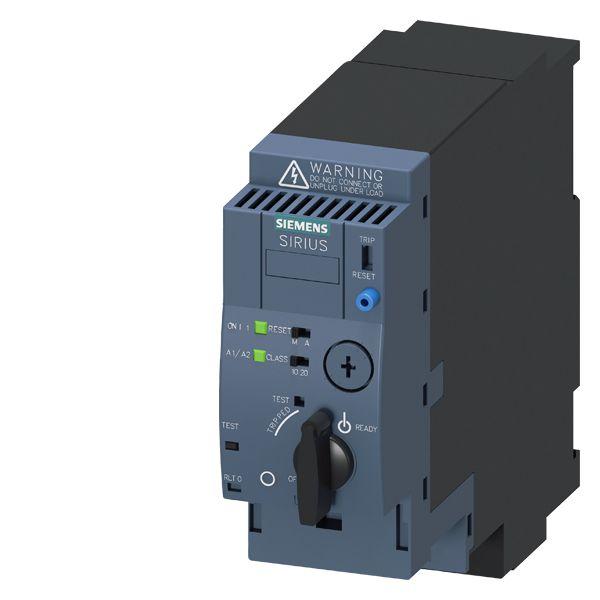

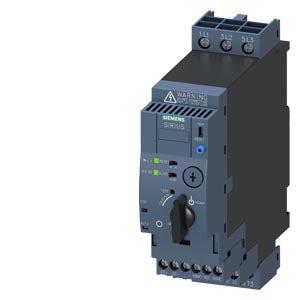

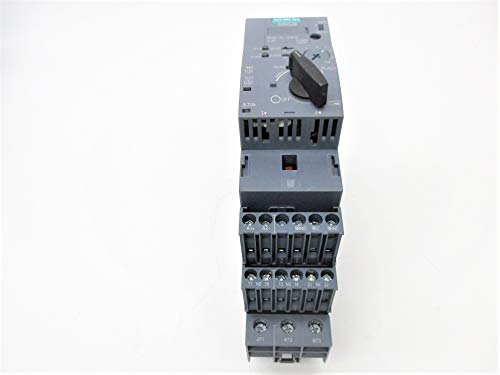

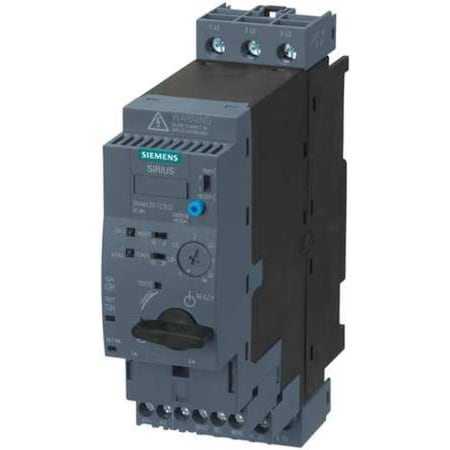

Siemens 3RA6120-1DB32 NSNP

Siemens 3RA6120-1DB32 NSNPzoom

Attributes

Key Value
24 V AC/DC, 50...60 HzVoltage (V)
3...12 AAmperage
3RA6120-1DB32Stock Code
754554961705UPC
Accessory GroupAuxiliary Contacts, Man.
ActionReversing
Adjustable pick-up valu.12 A
Adjustable pick-up valu.3 A
Ambient temperature / d.60 ?C
Ambient temperature / d.-20 ?C
Amperage Rating12
Amps AC12.0 A
Auxiliary Contact Form1NC/1NO
Auxiliary Contact Rating1NC
CategoryMotors, Actuators, Sole.
Coil Voltage24
Coil Volts24V AC/DC
Connection typeThreaded
Control / Drive TypeMotor Starter
Control supply voltage .24 V
Control supply voltage .24 V
Country of OriginDE
Country of Origin (subj.Germany
CSA,UL,EACUL Listed
Current - Output12A
Depth6.5 in
Dimensions170 mm H x 45 mm W x 16.
Enclosure NEMA RatingNo Enclosure
Enclosure TypeIP20
Failure rate [FIT] / wi.100 FIT
FeaturesEnd of Service Life Ind.
For Use With/Related Pr.-
Frequency Rating50/60
Height6.69 in
HP @ 3 Phase - 208V3 hp
HP @ 3 Phase - 240V3 hp
HP @ 3 Phase - 480V5 hp
HP @ 3 Phase - 575V10 hp
Hz50/60
IncludesEnd of Service Life Ind.
Interface-
IP20IP Rating
ItemIEC Magnetic Motor Star.
ManufacturerSiemens Industry, Inc.
MfrSiemens
Motor Power10
Motor TypeAC Motor
Mounting TypeDIN Rail
Number of Motors1
Number of Poles3
Operating current / at .12 A
Operating Cycles10000000
Operating power / at AC.5.50 k kW
Operating Temperature-20 to 60, -20?C ~ 60?C
Overload RelaySolid State
Overload Relay Amp Sett.3.0 to 12.0
PackageBulk
Phase3
Product StatusActive
Product TypeIEC Magnetic Motor Star.
Reset TypeAutomatic/Manual
Series3RA6, -
SiemensBrand
StandardsCCC, CSA, IEC, UL 508
TypeModule, Fuseless Snap-O.
Type of assignment:continousoperationaccor.
UNSPSC39121521
UPC754554961705
Voltage - Load690V
Voltage - Supply24VAC/DC
Voltage Rating690
Wattage7.5
Wattage - Load7500 W
Weight-
Width1.77 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomsustainablesupply.comC1160749371.531In StockSiemens3.25371.53 @ 1
thumbzoomkempstoncontrols.co.uk3RA6120-1DB32450.23618251In StockSiemens450.2361825 @ 1
thumbzoomstandardelectricsupply.com2192598609.91In StockSiemens609.9 @ 1
thumbzoomZoroG4293782617.931In Stock25Siemens3.25617.93 @ 1
Dale-Electric3RA6120-1DB32644.551In StockSiemens Industry, Inc.644.55 @ 1
Digi-Key14635884676.421In StockSiemens676.42 @ 1
steinerelectric.com512163743.821In StockSiemens743.82 @ 1
thumbzoomturtle.comITE 3RA6120-1DB32796.561In StockSiemens796.56 @ 1
thumbzoomMRO Supply6140819846.01In Stock14Siemens846.0 @ 1
thumbzoomwilliamsautomation.com3RA6120-1DB321100.0119SIEMENS1100.0 @ 1
thumbzoombulbspro.com3RA6120-1DB321102.521In StockSiemens1102.52 @ 1
