- mpn3RP25052BW30
- brandname: SIEMENS
- manufacturername: SIEMENS

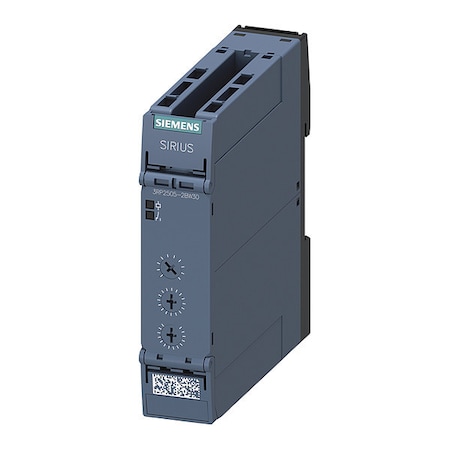

Siemens 3RP25052BW30 Timing Relay, Multifunction, 2 Change-Over Contacts, 27 Functions, Timing Range 0.05s to 100h, 12 to 240V AC/DC at 50/60Hz, with LED, Spring Terminal
- Brand: SIEMENS
- PartNumber: 3RP25052BW30
- Model: 3RP2505-2BW30
- Color: Titanium Grey
- Size: 17.5mm
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Siemens
- Label: Siemens
Attributes
| Key | Value |
|---|
| AC Contact Rating - Rel. | 3A @ 24/250/400V |
| Adjustment Method | Push Button |
| Adjustment Method - Tim. | Rotary Dip Switch |
| Base Product Number | 3RP2505 |
| Base Type | Not Applicable |
| Body Depth - Relay | 3.54 in |
| Body Height - Relay | 3.94 in |
| Body Width - Relay | 0.89 in |
| Brand | Siemens |
| Category | Time Relay, Industrial . |
| Circuit | DPDT (2 Form C) |
| Coil Rating | 3VA |
| Coil Volts | 12 to 240V AC |
| Contact Amp Rating (Res. | 0.7A |
| Contact Form | DPDT, (2) SPDT |
| Contact Form - Relay | (2) SPDT |
| Contact Material | Silver Tin Oxide |
| Contact Rating | R300 / B300 |
| Contact Rating @ Voltage | 3A @ 250VAC |
| Control Voltage | 24 |
| Country of Origin | DE |
| Country of Origin (subj. | Germany |
| Current Rating | 1.5 A |
| Current Stock | 5 |
| DC Contact Rating - Rel. | 0.10A @ 250V, 0.20A @ 1. |
| Delay Time | 0.05 Sec ~ 100 Hrs |
| Electrical Connection | Screw Clamp |
| Estimated Weight | 1.00 |
| Function | Programmable (Multi-Fun. |
| Function - Timing Relay | Flasher (Break or Pulse. |
| Hz | 50/60 |
| Hz - Electrical | 50 Hz, 60 Hz |
| International Shipping | No |
| Item | Multi-Function Time Del. |
| Item - Relay | Multi-Function Timing R. |
| Light Source | LED |
| Manufacturer | Siemens Industry, Inc.,. |
| Max. Time Setting | 100 hr. |
| Max. Time Setting - Tim. | 4 day 4 hr |
| Mfr | Siemens |
| Min. Time Setting | 0.05 sec. |
| Min. Time Setting - Tim. | 0.05 sec |
| Mounting | DIN Rail |
| Mounting - Relay | DIN Rail |
| Mounting Type | DIN Rail Mount, DIN Rail |
| Mpn | 3RP25052BW30 |
| Number of Functions | 27 |
| Number of Pins - Relay | 10 |
| Operating Functions | 11 |
| Operating Voltage | 24 V |
| Overall Height - Relay | 3.94 in |
| Package | Bulk |
| Part Number | 3RP25052BW30 |
| Pins | 10 |
| Power Consumption - Rel. | 3.0 VA |
| Primary Type | Time Delay Relays |
| Product Status | Active |
| Relay Type | Mechanical Relay |
| Series | SIRIUS 3RP25, 3RP25 Ser. |
| SKU | ZO-G2109331 |
| Socket | Not Applicable |
| Standards | CCC, CE, CSA, EAC, UL |
| Status Indicator | LED |
| SubCategory | Electrical |
| Termination | Screw |
| Termination Style | Spring Terminal |
| Timing Adjustment Method | Screwdriver Slot |
| Timing Initiate Method | - |
| Timing Relay Functional. | Flasher, Off Delay, On . |
| UNSPSC | 39122329 |
| UPC | 887621914899 |
| UPC Code | 887621914899 |
| Voltage - Supply | 12 ~ 240VAC/DC |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | motorsandcontrol.com | 3RP2505-2BW30 | 135.94 | 1 | In Stock | | Siemens | 1.0 | 135.94 @ 1 |
 | Radwell | 3RP25052BW30 | 136.62 | 1 | In Stock | | SIEMENS | | 136.62 @ 1 |
 | Zoro | G2109331 | 198.78 | 1 | In Stock | | Siemens | 0.32 | 198.78 @ 1 |
| Digi-Key | 14635851 | 221.95 | 1 | In Stock | | Siemens | | 221.95 @ 1 |
 | sustainablesupply.com | C2812584 | 230.06 | 1 | In Stock | | Siemens | 0.32 | 230.06 @ 1 |
 | simsupply.com | ZO-G2109331 | 230.68 | 1 | 5 | | Siemens | | 230.68 @ 1 |
| us.rs-online.com | 70961833 | 266.73 | 1 | In Stock | | Siemens | | 266.73 @ 1 |
| Dale-Electric | 3RP25052BW30 | 376.8 | 1 | In Stock | | Siemens Industry, Inc. | | 376.8 @ 1 |
