- mpn3RT10361AM20
- brandname: Siemens
- manufacturername: Siemens

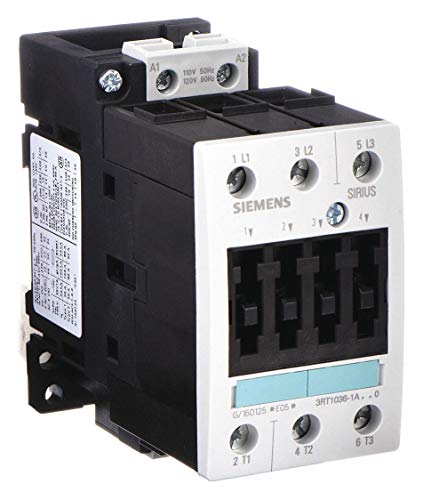

IEC Magnetic Contactor, 208VAC, 50A, 3P
- Brand: SIEMENS
- PartNumber: 3RT10361AM20
- PackageQuantity: 1
- Manufacturer: SIEMENS
- Label: SIEMENS
Attributes
| Key | Value |
|---|
| Action | Non-Reversing |
| Coil Volts | 208VAC |
| Contact Current Rating | 50 A |
| Control Voltage | 208 VAC |
| Country of Origin (subj. | Germany |
| Current Rating | 50 A |
| Depth | 4.53", 0.118" (3mm) |
| Dimensions | 112 x 55 x 115 mm |
| Enclosure NEMA Rating | No Enclosure |
| Frame / Series / Class . | S2 |
| Full Load Amps-Inductive | 50 |
| Full Load Amps-Resistive | 60 |
| Function | IEC Contactor |
| Height | 2.17" |
| Horsepower Rating | 50 HP |
| Horsepower, Max, 1 Phas. | 3 |
| Horsepower, Max, 1 Phas. | 7.5 |
| Horsepower, Max, 1 Phas. | 10 |
| Horsepower, Max, 3 Phas. | 15 |
| Horsepower, Max, 3 Phas. | 15 |
| Horsepower, Max, 3 Phas. | 40 |
| Horsepower, Max, 3 Phas. | 50 |
| HP @ 1 Phase - 120V | 3 |
| HP @ 1 Phase - 230V | 10 |
| HP @ 1 Phase - 240V | 10 |
| HP @ 3 Phase - 208V | 15 |
| HP @ 3 Phase - 240V | 15 |
| HP @ 3 Phase - 480V | 40 |
| HP @ 3 Phase - 575V | 50 |
| Hz | 50/60 |
| Item | IEC Magnetic Contactor |
| Length | 4.409" (112mm) |
| Maximum Operating Tempe. | 60 C |
| Minimum Operating Tempe. | -25 C |
| Mounting Type | DIN Rail Mounted |
| Number of Poles | 3 |
| Power Rating | 22 kW |
| Primary Type | IEC Contactor |
| Reversing | No |
| Series | 3RT Series |
| Size | S2 |
| Standards | UL, CSA, IEC, CAC ; CE . |
| Temperature Operating R. | -25 to 60 C |
| Terminal Type | Screw Terminal |
| Termination | Screw |
| Type | Contactor |
| UPC Code | 754554472300 |
| Voltage Rating | 400 VAC |
| Width | 2.17", 2.165" (55mm) |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| us.rs-online.com | 70239751 | 246.36 | 1 | In Stock | | Siemens | | 246.36 @ 1 |
 | Zoro | G4320933 | 251.89 | 1 | In Stock | 32 | Siemens | | 251.89 @ 1 |
