mpn:
brand:
manufacturer:
MPN:
Weight:
1.85
Weight:
1.85 LB
Preferred Price:
283.97
Price:
283.97
Min Simple Price:
160.44
Absolute Min Price:
227.82
Min Price:
227.82
Dimensions:
[5.0, 3.0, 3.0]
qty:
7
simpleSku:
TI1NDU:::3RT10361AP60
sku:
TI1NDU::DQ:3RT10361AP60@y0
condition:
11
seller:
Zoro
amzMan:
siemens
HazMat:
False
DropShip:
True
Attributes
| Key ^ | Value |
|---|---|
| Action | Non-Reversing |
| Coil Volts | 240VAC |
| Contact Current Rating | 50 A |
| Control Voltage | 240 VAC |
| Country of Origin (subject to change) | Germany |
| Depth | 4.53", 0.118" (3mm) |
| Dimensions | 112 x 55 x 115 mm |
| Enclosure NEMA Rating | No Enclosure |
| Frame / Series / Class / Code, Size | S2 |
| Full Load Amps-Inductive, HP @ 3 Phase - 575V | 50 |
| Full Load Amps-Resistive | 60 |
| Height, Width | 2.17" |
| Horsepower Rating | 50 HP |
| HP @ 1 Phase - 120V, Number of Poles | 3 |
| HP @ 1 Phase - 230V, HP @ 1 Phase - 240V | 10 |
| HP @ 3 Phase - 208V, HP @ 3 Phase - 240V | 15 |
| HP @ 3 Phase - 480V | 40 |
| Hz | 50/60 |

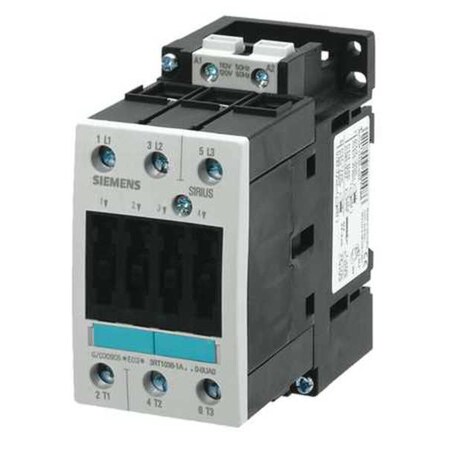

| Item | IEC Magnetic Contactor |
| Length | 4.409" (112mm) |
| Maximum Operating Temperature | 60 C |
| Minimum Operating Temperature | -25 C |
| Mounting Type | DIN Rail Mounted |
| Power Rating | 22 kW |
| Primary Type | IEC Contactor |
| Reversing | No |
| Series | 3RT Series |
| Standards | UL, CSA, IEC, CAC ; CE Approved ; CSA Certified ; GOST Certified ; UL Recognized |
| Temperature Operating Range | -25 to 60 C |
| Terminal Type | Screw Terminal |
| Termination | Screw |
| Type | Contactor |
| UPC Code | 754554411217 |
| Voltage Rating | 400 VAC |
| Width | 2.165" (55mm) |
