mpn:
brand:
manufacturer:
MPN:
Description:

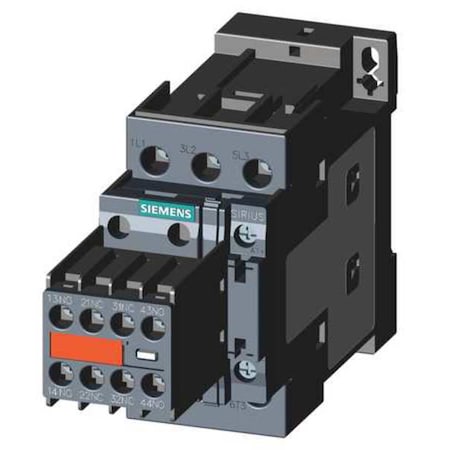

Sirius 3RT 3 Pole Contactor, 25 A, 11 kW, 24 V dc Coil
Weight:
0.125
Weight:
1.45 LB
Preferred Price:
282.01
Price:
282.01
Min Simple Price:
159.42
Absolute Min Price:
226.21
Min Price:
226.21
Dimensions:
[7.0, 4.0, 3.0]
qty:
21
simpleSku:
jQ5Mjg:::3RT20261BB443MA0
sku:
jQ5Mjg::D8:3RT20261BB443MA0@y0
condition:
11
seller:
industrialzone.com
amzMan:
siemens
HazMat:
False
DropShip:
True
Attributes
| Key | Value |
|---|---|
| Action | Non-Reversing |
| Category | Contactors |
| Coil Volts | 24 V DC |
| Connection: | screw-type terminals |
| Contact Current Rating | 25 A |
| Contact Rating: | A600 / Q600 |
| Control Voltage | 24 V |
| Country of Origin | DE |
| Depth | 4.21 in, 0.118 in |
| Dimensions | 85 x 45 x 151 mm |
| Estimated Weight | 1.45 |
| Frame Size | S0 |
| Full Load Amps-Inductive | 25 A |
| Full Load Amps-Resistive | 40 A |
| Height | 1.77 in |
| Horsepower Rating | 25 HP |
| HP @ 1 Phase - 120V | 2 hp |
| HP @ 1 Phase - 230V | 3 |
| HP @ 1 Phase - 240V | 3 hp |
| HP @ 3 Phase - 208V | 5 hp |
| HP @ 3 Phase - 240V | 7 1/2 hp |
| HP @ 3 Phase - 575V | 20 hp |
| Item | IEC Magnetic Contactor |
| Length | 3.346 in |
| Manufacturer | Siemens Industry, Inc., Siemens |
| Maximum Operating Temperature | 60 C |
| Minimum Operating Temperature | -25 C |
| Mounting Hole Diameter | 0.19 in |
| Mounting Hole Distance - Height | 2.36 in |
| Mounting Hole Distance - Width | 1.38 in |
| Mounting Type | DIN Rail Mount |
| Mounting: | screw and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 50022 +/-180? rotation possible on vertical mounting surface; can be tilted forward and backward by +/- 22.5? on vertical mounting surface |
| NEMA Size | Not Applicable |
| Number of Poles | 3 |
| Operating Temperature: | 60.0 -25.0 C |
| Overall Depth | 3.63 in |
| Overall Height | 6.26 in |
| Overall Width | 2.13 in |
| Part Number | 3RT20261BB443MA0 |
| Phase: | 3 |
| Power Rating | 11 kW |
| Primary Type | IEC Contactor |
| Reversing | No |
| Series | 3RT Series |
| Size | S0 |
| Size: | S0 |
| Standards | CAC ; CE Recognized ; CSA Certified ; EAC Certified ; GOST Certified ; IEC 60947-5-1 ; UL Listed |
| Sub Brand: | SIRIUS |
| Temperature Operating Range | -25 to 60 C |
| Terminal Type | Screw Terminal |
| Termination | Screw |
| Type | General Purpose Contactors |
| Type: | 3RT2 contactor |
| UNSPSC | 39121529 |
| UPC | 662643913811 |
| UPC Code | 662643913811 |
| Voltage Rating | 24 V |
| Width | 0 in, 1.77 in |
All Prices
| Img | Seller | Supplier SKU | Requested Price | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | industrialzone.com | 3RT20261BB443MA0 | 159.42 | 223.188 | 2 | In Stock | Siemens | 2.0 | 159.42 @ Qty: 2+ | |
 | Zoro | G4320705 | 200.99 | 200.99 | 1 | 1 | Siemens | 1.45 | 200.99 @ Qty: 1+ | |
 | sustainablesupply.com | C2812546 | 202.33 | 202.33 | 1 | In Stock | Siemens | 1.4 | 202.33 @ Qty: 1+ | |
| standardelectricsupply.com | 2270742 | 204.0 | 204.0 | 1 | In Stock | Siemens | 204.0 @ Qty: 1+ | |||
| us.rs-online.com | 70239857 | 277.92 | 277.92 | 1 | In Stock | Siemens | 277.92 @ Qty: 1+ | |||
 | motorsandcontrol.com | 3RT2026-1BB44-3MA0 | 393.42 | 393.42 | 1 | In Stock | Siemens | 1.45 | 393.42 @ Qty: 1+ | |
| Dale-Electric | 3RT20261BB443MA0 | 399.33 | 399.33 | 1 | In Stock | Siemens Industry, Inc. | 399.33 @ Qty: 1+ | |||
 | turtle.com | ITE 3RT20261BB443MA0 | 487.29 | 487.29 | 1 | In Stock | Siemens | 487.29 @ Qty: 1+ |
