mpn:
brand:
manufacturer:
MPN:
Description:

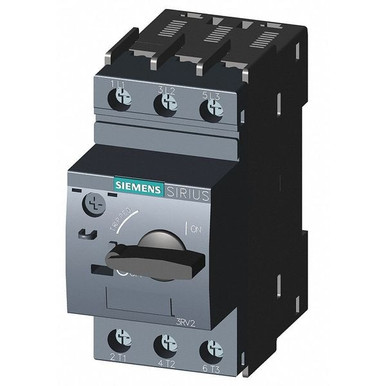

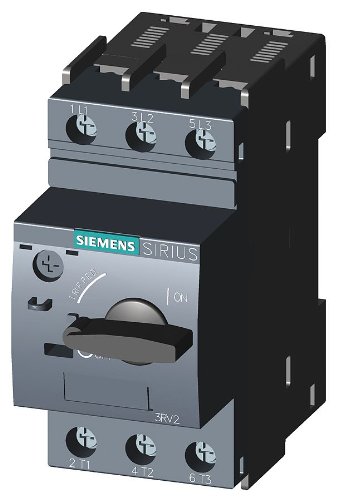

Circuit Breaker for Motor Protection, S00 0.45-0.63A, Screw, 3RV2 Series
Weight:
0.125
Weight:
0.125 LB
Preferred Price:
149.91
Price:
149.91
Min Simple Price:
81.92
Absolute Min Price:
116.32
Min Price:
116.32
Dimensions:
[4.0, 4.0, 2.0]
qty:
21
simpleSku:
TI1NDU:::3RV20110GA10
sku:
TI1NDU::EO:3RV20110GA10@y0
condition:
11
seller:
industrialzone.com
amzMan:
siemens
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| Actuator Type | Rotary |
| Amps | 0.63 |
| Amps AC | 0.45 to 0.63 |
| Approval Agency | CCC, CSA, EAC, IECEx, UL |
| Brand, Manufacturer, Mfr | Siemens |
| Breaker Type | Thermal |
| Category | Circuit Breakers, Circuit Protection |
| Connection type | Screw connection |
| Connection: | screw-type terminals |
| Country of Origin | DE |
| Current Rating | 0.63 A |
| Current Rating (Amps) | 630mA |
| Current Stock | 9 |
| Depth | 96 mm, 3.78 in |
| Description | MSP S00 0.45-0.63A SCREW |
| Description/Special Features | Thermal-Magnetic Trip Mechanism |
| Detailed Description | Circuit Breaker Thermal 630mA 690 V AC DC Rotary DIN Rail |
| Digi-Key Part Number | 3473-3RV20110GA10-ND |
| Dimensions | 3.819 x 1.772 x 3.78 ; 97 x 45 x 96 in ; mm |
| Enclosure NEMA Rating | No Enclosure |
| Enclosure Type | IP20 |
| Environmental Conditions: | 80 -50 C |
| Estimated Weight | 1.00 |
| For Use With | Class 10 Electrical Motor |
| Frame / Series / Class / Code, Size | S00 |
| Height | 97 mm |
| HP @ 3 Phase - 480V | 5/8 hp |
| Illumination | None |
| Illumination Voltage (Nominal) | - |
| Integrated undervoltage tripper present, International Shipping, Phase Loss Sensitivity, Pilot Light | No |
| Item | Manual Motor Starter |
| Lead Time | Expected to ship in 1-2 business days |
| Length | 3.819 in |
| Lowest value of setting range for overload tripper | 0.45 ampere |
| Manufacturer | Siemens Industry, Inc. |
| Manufacturer Product Number, Mpn, Part Number | 3RV20110GA10 |
| Manufacturer Standard Lead Time | 15 Weeks |
| Max. Voltage | 600V AC |
| Mounting Type | Screw/Snap-On, DIN Rail |
| Mounting: | screw and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 60715 any |
| Number of auxiliary contacts as opener, Number of auxiliary contacts as shutter | 0 |
| Number of Poles, Number Of Poles: | 3 |
| Operating Cycles: | 100000 |
| Operating Temperature: | 60 -20 C |
| Operator | Rotary Knob |
| Overload Relay Amp Setting | 0.45 to 0.63A |
| Package | Bulk |
| Primary Type | Motor Protector |
| Product Status | Active |
| Rated current [In] for the power loss specification | 1 ampere |
| Rated operating power with AC-3, 400 V | 0 kilowatt |
| rated service short-circuit breaking capacity Ics at 400 V, 50 Hz | 100000 ampere |
| Series | 3RV2 Series, 3RV2 |
| SKU | ZO-G4287857 |
| Special Features | Current Limiting, Switching and Protecting Three-Phase Induction Motors, Manual Motor Controllers |
| Standard: | CE / UL / CSA / CCC |
| Standards | UL Listed, GOST, CE Marked, IEC, UL 508, ABS, CCC, CE, CSA, UL |
| Sub Brand: | SIRIUS |
| SubCategory | Electrical |
| Terminal Type | Screw |
| Thermal Setting Range (Amps) | 0.45-0.63 |
| Trip Class | 10A |
| Type | Circuit Breaker |
| Type: | 3RV2 circuit breaker |
| UNSPSC | 39121601 |
| UPC, UPC Code | 662643921588 |
| Voltage Rating, Voltage Rating - AC | 690 V |
| Voltage Rating: | 690.0 |
| Width | 0 in, 45 mm |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | industrialzone.com | 3RV20110GA10 | 81.92 | 147.456 | 3 | In Stock | Siemens | 2.0 | 81.92 @ Qty: 3+ | |
| standardelectricsupply.com | 2249444 | 101.91 | 101.91 | 1 | In Stock | Siemens | 101.91 @ Qty: 1+ | |||
| steinerelectric.com | 661110 | 106.37 | 106.37 | 1 | In Stock | Siemens | 106.37 @ Qty: 1+ | |||
 | Zoro | G4287857 | 126.0 | 126.0 | 1 | In Stock | Siemens | 0.6 | 126.0 @ Qty: 1+ | |
 | sustainablesupply.com | C1160953 | 139.53 | 139.53 | 1 | In Stock | Siemens | 0.6 | 139.53 @ Qty: 1+ | |
| Dale-Electric | 3RV20110GA10 | 157.41 | 157.41 | 1 | In Stock | Siemens Industry, Inc. | 157.41 @ Qty: 1+ | |||
 | simsupply.com | ZO-G4287857 | 157.49 | 157.49 | 1 | 9 | Siemens | 157.49 @ Qty: 1+ | ||
 | motorsandcontrol.com | 3RV2011-0GA10 | 161.65 | 161.65 | 1 | In Stock | Siemens | 1.0 | 161.65 @ Qty: 1+ | |
 | Digi-Key | 14635812 | 169.3 | 169.3 | 1 | 1 | Siemens | 169.3 @ Qty: 1+ | ||
| us.rs-online.com | 70240343 | 170.87 | 170.87 | 1 | In Stock | Siemens | 170.87 @ Qty: 1+ | |||
 | Newark | 89AH1790 | 171.54 | 171.54 | 1 | In Stock | SIEMENS | 171.54 @ Qty: 1+ | ||
 | turtle.com | ITE 3RV20110GA10 | 246.81 | 246.81 | 1 | In Stock | Siemens | 246.81 @ Qty: 1+ | ||
| kirbyrisk.com | 3162504 | 300.86 | 300.86 | 1 | In Stock | Siemens | 300.86 @ Qty: 1+ |
