SIEMENS 3RV20111KA10

B00DEFJ28E

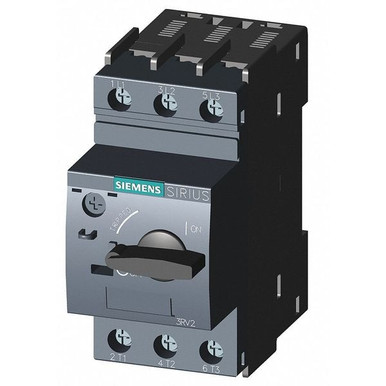

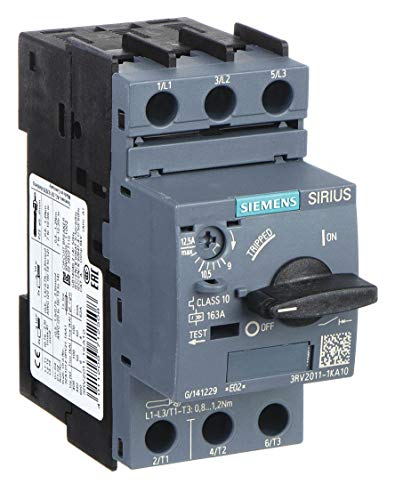

Siemens - 3RV20111KA10 - Manual Motor Starter, IEC, 9 to 12.5A, 3P

Siemens - 3RV20111KA10 - Manual Motor Starter, IEC, 9 to 12.5A, 3Pzoom

Attributes

Key Value
Amps12.5
Amps AC9 to 12.5
BrandSiemens
Catalog Number3RV20111KA10
CategoryCircuit Breakers
Connection:screw-type terminals
Country of OriginDE
Current Rating12.5 A
Current Stock47
Depth96 mm, 3.78 in
Description/Special Fea.Thermal-Magnetic Trip M.
Dimensions3.819 x 1.772 x 3.78 ; .
Display3RV20111KA10 MSP S00 9-.
Enclosure NEMA RatingNo Enclosure
Enclosure TypeIP20
Environmental Condition.80 -50 C
Estimated Weight1.00
For Use WithClass 10 Electrical Mot.
Frame / Series / Class .S00
Height97 mm
Horsepower Rating10 hp
Horsepower, Max, 1 Phas.0.5
Horsepower, Max, 1 Phas.1.5
Horsepower, Max, 1 Phas.2
Horsepower, Max, 3 Phas.3
Horsepower, Max, 3 Phas.3
Horsepower, Max, 3 Phas.7.5
Horsepower, Max, 3 Phas.10
HP @ 1 Phase - 120V1/2 hp
HP @ 1 Phase - 230V2 hp
HP @ 230V (1ph)2
HP @ 230V (3ph)3
HP @ 3 Phase - 208V3 hp
HP @ 3 Phase - 240V3 hp
HP @ 3 Phase - 460-575V7.5/10
HP @ 3 Phase - 480V7 1/2 hp
HP @ 3 Phase - 575V10 hp
HP @ 460V (3ph)7.5
Integrated undervoltage.No
International ShippingNo
ItemManual Motor Starter
Lead TimeExpected to ship in 1-2.
Length3.819 in
ManufacturerSiemens Industry, Inc.,.
Max. Voltage600V AC
Mounting TypeScrew/Snap-On
Mounting:screw and snap-on mount.
Mpn3RV20111KA10
Number of auxiliary con.0
Number of Poles3
Number Of Poles:3
Operating Cycles:100000
Operating Temperature:60 -20 C
OperatorRotary Knob
Overload Relay Amp Sett.9 to 12.5A
Part Number3RV20111KA10
Phase Loss SensitivityNo
Pilot LightNo
Primary TypeMotor Protector
Series3RV2 Series
SizeS00
SKUZO-G4287972
Special FeaturesCurrent Limiting, Switc.
Standard:CE / UL / CSA / CCC
StandardsUL Listed, GOST, CE Mar.
Sub Brand:SIRIUS
SubCategoryElectrical
Terminal TypeScrew
Thermal Setting Range (.9.0-12.5
Trip Class10A
TypeCircuit Breaker
Type:3RV2 circuit breaker
UNSPSC39121601
UPC662643924176
UPC Code662643924176
Voltage Rating690 V, 690
Voltage Rating:690.0
Width0 in, 45 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomindustrialzone.com3RV20111KA10108.022In StockSiemens2.0108.02 @ 2
standardelectricsupply.com2222031133.811In StockSiemens133.81 @ 1
thumbzoommotorsandcontrol.com3RV2011-1KA10161.51In StockSiemens1.0161.5 @ 1
thumbzoomZoroG4287972161.99183Siemens0.75161.99 @ 1
thumbzoomsustainablesupply.comC1161560190.311In StockSiemens0.75190.31 @ 1
thumbzoomsimsupply.comZO-G4287972191.8147Siemens191.8 @ 1
Dale-Electric3RV20111KA10215.441In StockSiemens Industry, Inc.215.44 @ 1
thumbzoomNewark89AH1810219.011In StockSIEMENS219.01 @ 1
us.rs-online.com70240356229.23135Siemens229.23 @ 1
thumbzoomcrescentelectric.com614985330.171In StockSiemens330.17 @ 1
thumbzoomturtle.comITE 3RV20111KA10364.331In StockSiemens364.33 @ 1
kirbyrisk.com2478301395.051In StockSiemens395.05 @ 1
