Description:

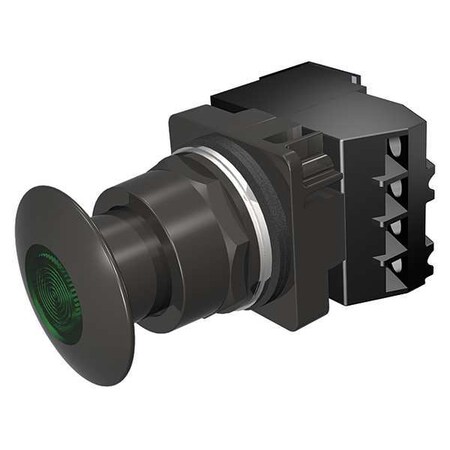

Illuminated Push Button, 30 mm, Maintained Pull / Maintained Push, Type of Operator 44mm Mushroom Head, Basic Material Epoxy, Metal Head Material, 1NO/1NC Contact Form, Black Epoxy Coated Zinc Die Cast Bezel, Color Green, Lamp Module Voltage 480V AC, Lamp Module Type Transformer, Lamp Type Incandescent, Lamp Voltage 6V AC, Replacement Lamp Mfr. No. 52AABN, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/P600, Number of Operators 1, NEMA Rating 1, 12, 13, 3, 3R, 4, 4X
Attributes
| Key | Value |
|---|---|
| Action | Maintained Pull / Maintained Push |
| Basic Material | Epoxy |
| Bezel | Black Epoxy Coated Zinc Die Cast |
| Color | Green |
| Contact Form | 1NO/1NC |
| Contact Rating | 10A @ 600V AC |
| Contact Type | 1NO/1NC |
| Head Material | Metal |
| Item | Illuminated Push Button |
| Lamp Module Type | Transformer |
| Lamp Module Voltage | 480V AC |
| Lamp Type | incandescent |
| Lamp Voltage | 6V AC |
| NEMA Contact Rating Designation | A600/P600 |
| NEMA Rating | 1, 12, 13, 3, 3R, 4, 4X |
| Number of Operators | 1 |
| Replacement Lamp | Mfr. No. 52AABN |
| Size | 30 mm |
| Standards | CSA, UL |
| Terminal Connection | Pressure Plate |
| Type of Operator | 44mm Mushroom Head |
| Voltage | 480V AC |
