mpn:
brand:
manufacturer:
MPN:
Description:

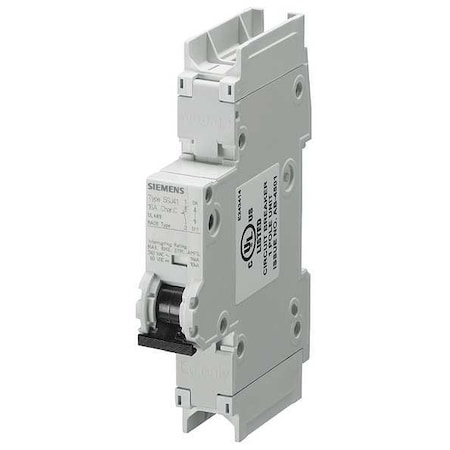

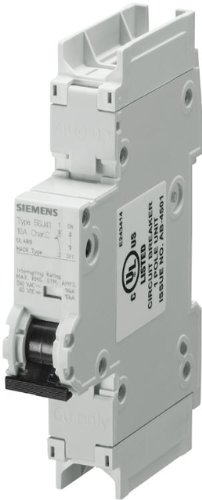

Miniature Circuit Breaker, Amps 15 A, Number of Poles 1, Curve Type D, AC Voltage Rating 240V AC, DC Voltage Rating 60V DC, Max. AIR Rating 14 kA, Terminal Connection Screw Clamp, Series 5SJ4, Trip Type Thermal Magnetic, Application Commercial, Industrial, Min. Wire Size 14 AWG, Max. Wire Size 4 AWG, Length 4.48 in, Width 0.9 in, Depth 3.3 in, Standards CSA C22.2 No. 5-02, EN60898, EN60947-2, UL 489 Listed
Weight:
0.639999999463
Weight:
0.639999999463 LB
Preferred Price:
84.47
Price:
84.47
Min Simple Price:
46.16
Absolute Min Price:
65.54
Min Price:
65.54
Dimensions:
[5.0, 4.0, 1.0]
qty:
21
simpleSku:
TI1NDU:::5SJ41188HG41
sku:
TI1NDU::RA:5SJ41188HG41@y0
condition:
11
seller:
standardelectricsupply.com
amzMan:
siemens
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| AC Voltage Rating | 240V AC |
| Actuator Type | Lever, Handle |
| Adapter Rating:, Element:, Material:, Response Time:, Size:, Type Of Indicators: | N/A |
| Amperage Rating, Amps | 15 |
| Amps, Current Rating | 15 A |
| Application | Commercial, Industrial |
| Approval Agency | CCC, CE, EAC, UL489 |
| Approvals, UL Rating | UL 489 |
| Breaker Type, Illumination Voltage (Nominal) | - |
| Category | Circuit Protection, Circuit Breakers |
| Characteristic | D Curve |
| Circuit Breaker Mounting Style | Standard Mounting Rail |
| Class:, Curve Type, Trip Curve | D |
| Connection type | Line/Load/Screw |
| Connection: | Identical wire screw connections on line and load side. |
| Country of Origin | DE |
| Current Rating (Amps) | 15A |
| DC Voltage Rating | 60V DC |
| Depth | 3.3 in |
| Dimensions | 110 mm H x 18 mm W x 70 mm D |
| Enclosure Type | IP20 |
| Estimated Weight | 1.00 |
| Frame Size, Number of Poles, Phase, Poles | 1 |
| Frequency Rating | 50 |
| Frequency Rating: | 50 Hz |
| Housing Material | Thermoplastic |
| Illumination | None |
| Interrupt Rating, kA Rating | 14 |
| Interrupt Rating:, Short Circuit Rating: | 14kA |
| Item | Miniature Circuit Breaker |
| Length, Length (Straight Wireway) | 4.48 in |
| Manufacturer | Siemens Industry, Inc. |
| Manufacturer, Mfr | Siemens |
| Max. AIR Rating | 14 kA |
| Max. Wire Size | 4 AWG |
| Min. Wire Size | 14 AWG |
| Mounting, Mounting Type, Mounting type | Din Rail |
| Mounting: | On standard mounting rail (DIN 35mm) |
| Package | Box |
| Part Number | 5SJ41188HG41 |
| Product Status | Active |
| Series | 5SJ4, 5SJ4 Series |
| Series, Sub Brand: | SENTRON |
| Standard: | UL 489, CSA 22.2 NO. 5-02, HACR, IEC/EN 60 898, IEC/EN 60 947-2 |
| Standards | CSA C22.2 No. 5-02, EN60898, EN60947-2, UL 489 Listed, UL489 |
| Temperature Rating (Degrees F) | -25 to 55 |
| Terminal Connection | Screw Clamp |
| Trip Type | Thermal Magnetic |
| Type | Type HSJ |
| Type: | HSJ |
| UNSPSC | 39121601 |
| UPC, UPC Code | 662643167849 |
| Voltage | 240VAC, 60VDC, 125VDC |
| Voltage Rating | 240 |
| Voltage Rating - AC | 400 V |
| Voltage Rating - DC | 60 V |
| Voltage Rating, Voltage Rating: | 240 V |
| Width | 0.9 in |
| Wire Size | 14 to 4 |
