SIEMENS B390

B005XH6QWQ

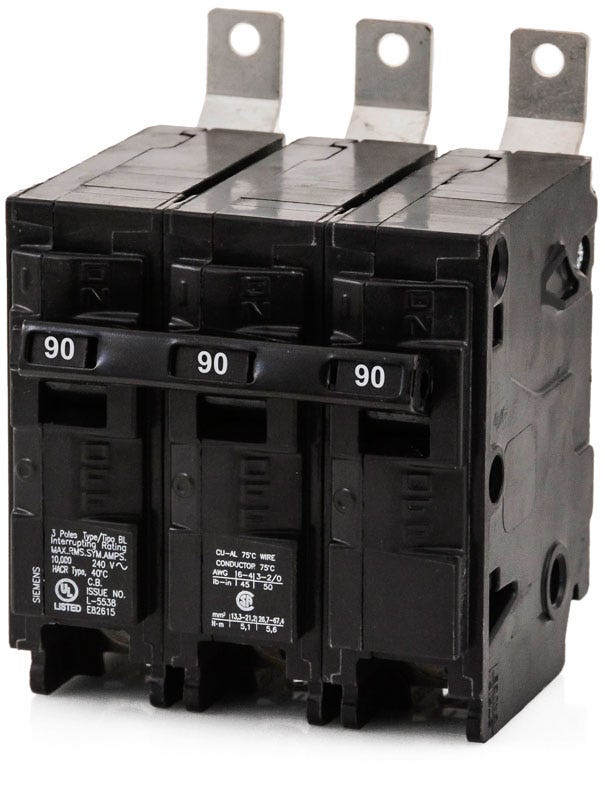

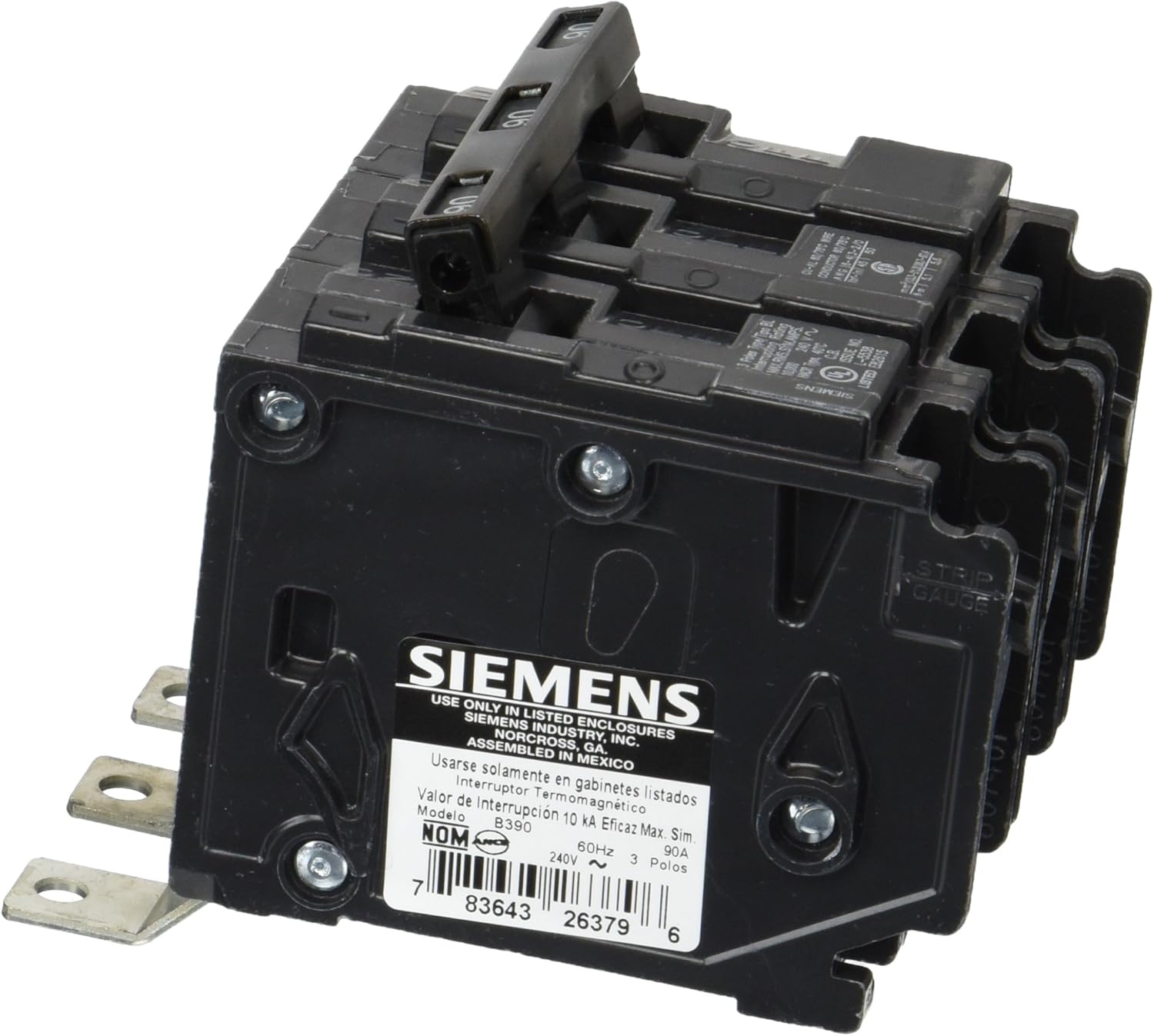

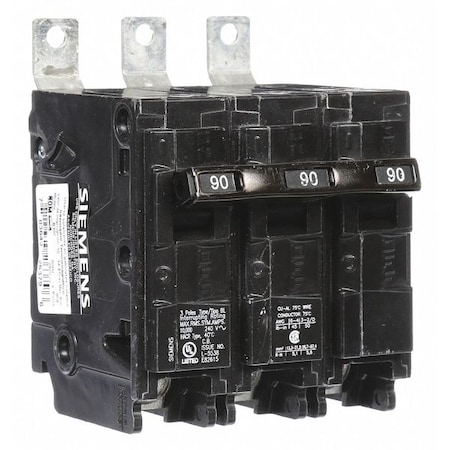

Siemens B390 90-Amp Three Pole 240-Volt 10KAIC Bolt in Breaker, Color

Siemens B390 90-Amp Three Pole 240-Volt 10KAIC Bolt in Breaker, Colorzoom

Attributes

Key Value
(3P) Three PolePole
1.50Width (in)
2.5Length (in)
240VACVoltage (V)
3.75Height (in)
90 AmpAmperage
90AAmp Rating
AC Voltage Rating240V AC
Amperage90A
Amps90 A
ApplicationElectrical Distribution
ApprovalUL Listed, CSA Certifie.
ASINB005XH6QWQ
AWG 6-4 | 3 -2/0Wire Gauge
B390Stock Code
Batteries Included?No
Batteries Required?No
BOLT-ONBreaker Style
BrandSiemens
Catalog NumberB390
CategoryCircuit Breakers
Circuit Breaker ActuatorToggle
Circuit Breaker Mountin.Bolt On
Circuit Breaker TypeStandard
ColorCOLOR
Continuous current / ra.90 A
Country of OriginMX, Mexico
CSA, UL ListedUL Listed
Current Rating90 A
DC Voltage RatingNot Rated
Depth12.8 in
Depth [in]:3 in
Design of the overload .THERMAL-MAGNETIC
Design of the product:BL
DisplayB390 BREAKER 90A 3P 240.
Estimated Weight1.00
For Use WithSiemens P1 Panelboards
Frame Size125A/BL
Gtin783643263796
GTIN00783643263796
Height3.7 in
Height [in]:3.75 in
Included ComponentsB390
Is Discontinued By Manu.No
ItemMiniature Circuit Break.
Item model numberB390
Item Package Quantity1
Length3.7 in
Length (Straight Wirewa.3.7 in
Made in USANo
ManufacturerSiemens Industry, Inc.,.
Max. AIR Rating10kA at 240V AC
Max. Wire Size1/0 AWG
Min. Wire Size2 AWG (Al), 4 AWG (Cu)
MountingBolt On
Mounting TypeBolt-On
MpnB390
Number Of Pieces1
Number of Poles3
Number Of Poles:3
Part NumberB390
Phase3, Three
Poles3
SeriesBL
SiemensBrand
Size of the circuit-bre.BL(125A)
StandardULLISTED/CSA/NOMCERTIFI.
Standard:ULLISTED/CSA/NOMCERTIFI.
StandardsCSA Certified, HACR Rat.
Suitability for operati.ELECTRICALDISTRIBUTION
Supply voltage frequenc.TRUE
Terminal ConnectionLug
Type/Tipo BL BreakerFamily
UNSPSC39121601
Upc783643263796
UPC783643263796
UPC Code783643263796
Voltage / between phase.240 V
Voltage Rating240 V
Width4.5 in
Width [in]:3 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomAmazonB005XH6QWQ61.971In StockSiemens61.97 @ 1
thumbzoommostelectric.comB390113.61In StockSiemens113.6 @ 1
AmazonTPB007ICKPGW124.451In Stock2Siemens124.45 @ 1
AmazonUNKB007ICKPGW124.451In StockSiemens124.45 @ 1
thumbzoomAllfusesB390127.791130Siemens127.79 @ 1
steinerelectric.com27778132.021In StockSiemens132.02 @ 1
thumbzoomsuppliesdepot.comB390136.951In StockSIEMENS136.95 @ 1
simplybreakers.comB390158.991In StockSiemens \/ ITE158.99 @ 1
thumbzoomKelly HayesB390164.1118Siemens164.11 @ 1
thumbzoomsuperbreakers.comB390168.21In StockSiemens168.2 @ 1
Dale-ElectricB390280.181In StockSiemens Industry, Inc.280.18 @ 1
standardelectricsupply.com19687292.831In StockSiemens292.83 @ 1
thumbzoomindustrialzone.comB390424.21In StockSiemens0.97424.2 @ 1
thumbzoombulbspro.comB390456.441In StockSiemens456.44 @ 1
thumbzoomsustainablesupply.comC1210911481.01In StockSiemens0.96481.0 @ 1
kirbyrisk.com559893513.411In StockSiemens513.41 @ 1
thumbzoomZoroG0380405542.991In StockSiemens0.96542.99 @ 1
thumbzoomRadwellB390560.013SIEMENS ITE SIEMENS560.0 @ 1
thumbzoommotorsandcontrol.comB390615.731In StockSiemens1.0615.73 @ 1
thumbzoomcrescentelectric.com108577836.081In StockSiemens836.08 @ 1
us.rs-online.com71300683870.691In StockSiemens870.69 @ 1
