SIEMENS NGG3B090L

B0052MGGVS

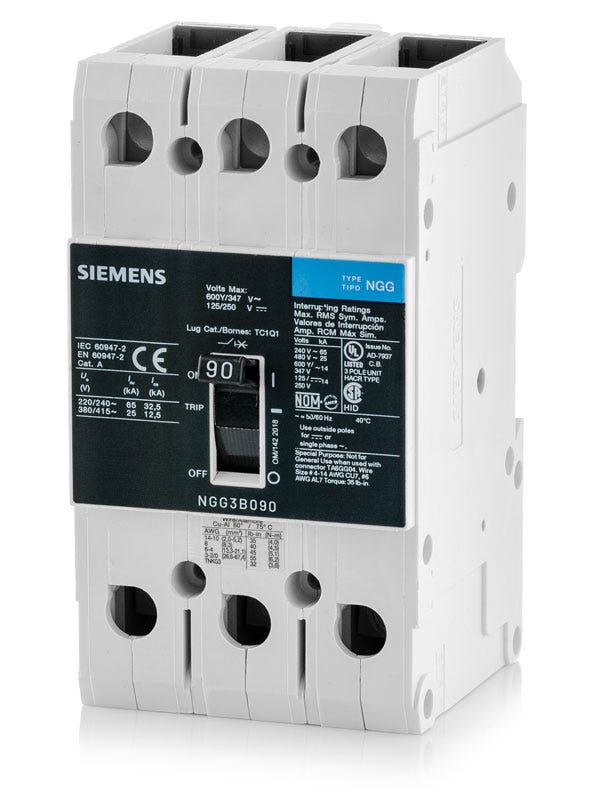

SIEMENS NGG3B090L Breaker NGG 90A 3P 480V 25K LUGS, Black

SIEMENS NGG3B090L Breaker NGG 90A 3P 480V 25K LUGS, Blackzoom

Attributes

Key Value
(3P) Three PolePole
2.9''Width (in)
3''Height (in)
480VVoltage (V)
5.4''Length (in)
783643413894UPC
90 AmpsAmperage
90AAmp Rating
Actuator TypeToggle
Amperage90
Amperage Rating90, 90 A
BrandSiemens
CategoryCircuit Breakers
Circuit Breaker TypeMolded Case
Connection typeFeed-Through
Continuous current / ra.90 A
Country of OriginMX
CSA, UL ListedUL Listed
Current Rating90 A
Design of the overload .THERMAL-MAGNETIC
Design of the product:MOLDEDCASECIRCUITBREAKER
Dimensions5.4 in H x 3 in W x 2.8.
Estimated Weight2.81
FrameNGG
Frame TypeGG
Frequency Rating50/60, 50/60 Hz
FunctionsLI - Long-Time and Inst.
Gtin783643413894
Height (in)5.4
Height [in]:5.4 in
Interrupt Rating14 to 25, 14 to 25 kA
Interrupting Rating25kA
Length (in)2.9
ManufacturerSiemens Industry, Inc.,.
Max Wire Size2 AWG(Al), 1 AWG(Cu)
Min Wire Size8 AWG(Al), 8 AWG(Cu)
Mounting TypeDIN Rail Mount, Din Rail
Mounting type:DINRAIL/SCREW
NGG3B090LStock Code
Number of Poles3
Number Of Poles:3
Part NumberNGG3B090L
Phase3
Poles3
ProtectionThermal Magnetic
SeriesNGG, NGG Series
SiemensBrand
Special FeaturesHVCR Rated
Standard:UL/CSA/IEC/NOM
StandardsHVCR Rated
Suitability for operati.ELECTRICALDISTRIBUTION
Temperature Rating (Deg.40, 40 deg C
Terminal ConnectionFeed-Thru
TerminationBox Lug
Trip TypeLI/Thermal Magnetic
Tripping characteristic.STANDARD
TypeThermal/Magnetic, Low V.
UNSPSC39121601
UPC783643413894
Upc783643413894
UPC Code783643413894
Voltage600 VAC
Voltage / between phase.347 V
Voltage / between phase.600 V
Voltage Protection Rati.480V
Voltage Rating600Y/347/480, 600Y/347/.
Width (in)3
Width [in]:3 in
Wire Size8 to 1/0/8 to 2/0 AWG

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
simplybreakers.comNGG3B090L380.991In StockSiemens \/ ITE380.99 @ 1
thumbzoomAllfusesNGG3B090L400.9918Siemens400.99 @ 1
thumbzoomindustrialzone.comNGG3B090L433.31In StockSiemens4.0433.3 @ 1
thumbzoomsuperbreakers.comNGG3B090L441.8117Siemens441.81 @ 1
thumbzoomRaptor SuppliesAG8TGM584.20644751In StockSIEMENS584.2064475 @ 1
thumbzoomstandardelectricsupply.com2150245730.81In StockSiemens730.8 @ 1
kirbyrisk.com21566181066.881In StockSiemens1066.88 @ 1
us.rs-online.com702411651739.1912Siemens1739.19 @ 1
thumbzoommotorsandcontrol.comNGG3B090L1803.041In StockSiemens2.811803.04 @ 1
Dale-ElectricNGG3B090L1830.091In StockSiemens Industry, Inc.1830.09 @ 1
thumbzoomturtle.comITE NGG3B090L2216.971In StockSiemens2216.97 @ 1
thumbzoombulbspro.comNGG3B090L2671.491In StockSiemens2671.49 @ 1
