- mpnTPS3E12200X02
- brandname: Siemens
- manufacturername: Siemens

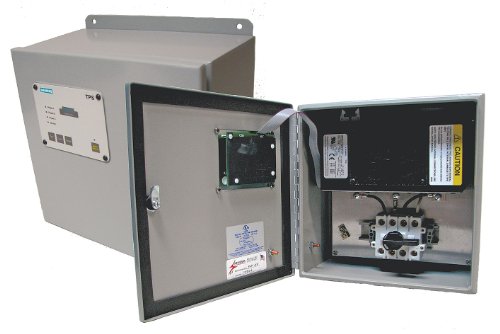

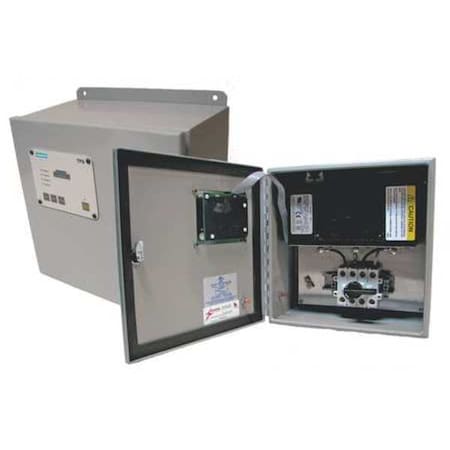

Surge Protection Device 3 Phase 277/480V
- Brand: SIEMENS
- PartNumber: TPS3E12200X02
- PackageQuantity: 1
- Manufacturer: Siemens
- Label: Siemens
Attributes
| Key | Value |
|---|
| Alternate Mfr Part Numb. | TPS3E12200X02 |
| Basic Material | Metallic |
| Category | Surge Suppressers |
| Color | Gray |
| Connection: | WIRELEADS |
| Country of Origin | USA, US |
| Country of Origin (subj. | United States |
| Depth | 7.0 in, 7 in |
| Depth [in]: | 7.5 in |
| Enclosure Material | Steel |
| Enclosure NEMA Rating | 1, 12, 3R, 4, 1; 4; 12;. |
| Filtering | Yes |
| Filtering / Nonfiltering | Filtering |
| Height [in]: | 12 in |
| Includes | Audible Alarm; Dry Cont. |
| IP Rating | 10, 14, 52, 56, 10; 14;. |
| Item | Surge Protection Device |
| Item? | 19T309 |
| Length | 12.0 in, 12 in |
| Length (Straight Wirewa. | 12.0 in |
| Lightning Impulse Curre. | 20 kA |
| Manufacturer | Siemens Industry, Inc. |
| Material: | Steel |
| Max. Continuing Operati. | 320V AC, 320 V AC |
| Max. Operating Temp. | 140 Degrees F, 140 ?F |
| Max. Surge Current per . | 100kA (L-G, L-N), N-G, . |
| Max. Surge Current Per . | 100kA |
| Max. Surge Current per . | 200 kA |
| Max. Surge Current Per . | 200kA |
| Mfr. Model? | TPS3E12200X02 |
| Min. Operating Temp. | -15 Degrees F, -15?F |
| Modes of Protection | L-G, L-L, L-N, N-G, L-G. |
| Modular | Yes |
| Modular / Nonmodular | Modular |
| Mounting Style | Surface |
| Mounting: | EXTERNAL(WALL)MOUNTED |
| Noise Attenuation | -50db @ 10kHz to 100MHz |
| Nominal Discharge Curre. | 20 kA |
| Number of Poles | 3 |
| Number of Wires | 4 Wires + Ground |
| Phase | Three |
| Phase: | 3 |
| Short Circuit Current R. | 200kA |
| Standard: | UL1449/CSA22.2No.269.1 |
| Standards | ANSI/IEEE , UL/cUL 1449. |
| Sub Brand: | TPS312 |
| System Connection | Parallel |
| Type: | 200kASURGE |
| UL SPD Type | Type 2 |
| UNSPSC | 39121610 |
| UPC | 804766267567 |
| Voltage | 277/480V AC Wye |
| Voltage / between phase. | 480 V |
| Voltage Protection Rati. | 1200V (L-N, L-G, N-G), . |
| Voltage Rating: | 277 V |
| Width | 12.0 in, 12 in |
| Width [in]: | 12 in |
| Wire Gauge | 8 to 1/0 AWG |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Dale-Electric | TPS3E12200X02 | 2322.76 | 1 | In Stock | | Siemens Industry, Inc. | | 2322.76 @ 1 |
| us.rs-online.com | 72782984 | 2690.58 | 1 | In Stock | | Siemens | | 2690.58 @ 1 |
 | Zoro | G4437054 | 3197.09 | 1 | In Stock | | Siemens | 24.05 | 3197.09 @ 1 |
 | sustainablesupply.com | C1163558 | 3832.09 | 1 | In Stock | | Siemens | 24.05 | 3832.09 @ 1 |
| Grainger | 19T309 | 4055.36 | 1 | In Stock | | SIEMENS | | 4055.36 @ 1 |
