- mpnC8051F042-GQ
- brandname: Silicon Labs
- manufacturername: Silicon Labs

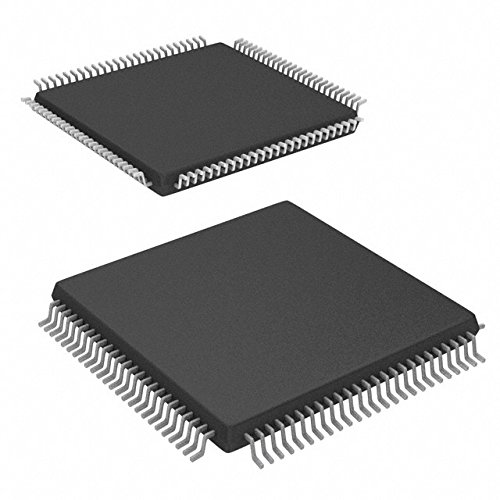

C8051F042-GQ
- Brand: SILICON LABORATORIES
- PartNumber: C8051F042-GQ
- Model: C8051F042-GQ
- PackageQuantity: 1
- Manufacturer: Silicon Laboratories Inc
- Label: Silicon Laboratories Inc
Attributes
| Key | Value |
|---|
| A/D Bit Size | 10 bit |
| A/D Channels Available | 13 |
| Alternate Part No. | 634-C8051F042-GQ |
| Base Part Number | C8051F04 |
| Base Product Number | C8051F042 |
| Brand | Silicon Labs |
| Case | TQFP100 |
| Category | Integrated Circuits (IC. |
| Connectivity | CANbus, EBI/EMI, SMBus . |
| Core | 8051 |
| Core Processor | 8051 |
| Core Size | 8-Bit |
| Data Bus Width | 8 bit |
| Data Converters | A/D 8x8b, 13x10b; D/A 2. |
| Data RAM Size | 4.25 kB |
| Data ROM Size | 64 kB |
| Data ROM Type | FLASH |
| EEPROM Size | - |
| Flash memory capacity | 64kB |
| Interface Type | CAN, SMBus, SPI, UART |
| Lead Free Status / RoHS. | - |
| Manufacturer | Silicon Labs, Silicon L. |
| Manufacturer Part No. | C8051F042-GQ |
| Manufacturer Part Number | C8051F042-GQ |
| Maximum Clock Frequency | 25 MHz |
| Maximum Operating Tempe. | + 85 C |
| Mfr | Silicon Labs |
| Minimum Operating Tempe. | - 40 C |
| Mounting | SMD |
| Mounting Style | SMD/SMT |
| Mounting Type | Surface Mount |
| Number of 10bit A/D con. | 1 |
| Number of 12bit D/A con. | 2 |
| Number of 16bit timers | 5 |
| Number of 8bit A/D conv. | 1 |
| Number of comparators | 3 |
| Number of I/O | 64 |
| Number of I/Os | 64 I/O |
| Number of inputs/outputs | 64 |
| Number of PWM channels | 5 |
| Number of Timers | 5 Timer |
| On-Chip ADC | Yes |
| On-Chip DAC | With DAC |
| Operating Supply Voltage | 2.7 V to 3.6 V |
| Operating Temperature | -40, -40?C ~ 85?C (TA) |
| Operating temperature | -40...85?C |
| Oscillator Type | Internal |
| Package | Tray |
| Package / Case | 100-TQFP |
| Package/Case | TQFP-100 |
| Packaging | Tray |
| Peripherals | Brown-out Detect/Reset,. |
| Processor Series | C8051 |
| Product Category | 8-bit Microcontrollers . |
| Product Status | Not For New Designs |
| Program Memory Size | 64 kB, 64KB (64K x 8) |
| Program Memory Type | FLASH |
| RAM Size | 4.25K x 8 |
| Series | C8051F042, C8051F04x |
| Speed | 25MHz |
| SRAM memory capacity | 4.25kB |
| Standard Package | 90 |
| Supplier Device Package | 100-TQFP (14x14) |
| Supply Voltage - Max | 3.6 V |
| Supply Voltage - Min | 2.7 V |
| Type of integrated circ. | microcontroller 8051 |
| Unit Weight | 638.060 mg |
| Voltage - Supply (Vcc/V. | 2.7V ~ 3.6V |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Hotenda | H2311365 | 9.37 | 1 | 186 | | Silicon Labs | | 9.37 @ 1 |
 | iodParts | C8051F042-GQ | 12.8 | 25 | 270 | | Silicon Labs | | 12.8 @ 25 |
 | swatee.com | C8051F042-GQ | 15.28 | 1 | 219 | | Silicon Laboratories | | 15.28 @ 1 |
| Digi-Key | 819507 | 16.29 | 1 | In Stock | | Silicon Labs | | 16.29 @ 1 |
 | TME | C8051F042-GQ | 20.75 | 1 | In Stock | | SILICON LABS | | 20.75 @ 1 |
