- mpn6202-ZTN9
- brandname: SKF
- manufacturername: SKF

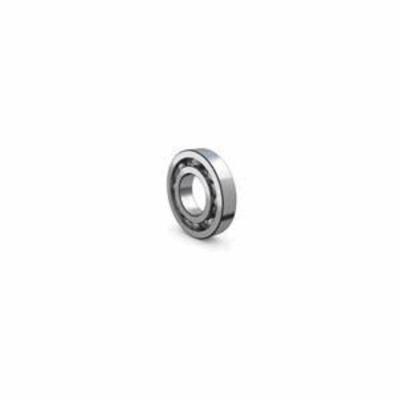

SKF 6202-ZTN9 Radial Bearing, Single Row, Deep Groove Design, ABEC 1 Precision, Single Shield, Non-Contact, Normal Clearance, Plastic Cage, 15mm Bore, 35mm OD, 11mm Width
- Brand: SKF
- PartNumber: 6202-ZTN9
- Model: 6202-ZTN9
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: SKF
- Label: SKF
Attributes
| Key | Value |
|---|
| bearing material: | Steel |
| Bearing Type | Deep Groove Ball |
| Bore | 0.591 Inch | 15 Millime. |
| Bore Type | Cylindrical |
| bore type: | Round |
| Brand | SKF |
| Cage Material | Polyamide, C0-Medium |
| cage material: | Polyamide 66 |
| Category | Single Row Ball Bearings |
| Category - BDI | 31171504 |
| Clearance | Normal |
| Closure Type | Shielded |
| closure type: | Single Shielded |
| Design | Deep-groove ball bearing |
| dynamic load capacity: | 8.06 kN |
| EAN | B00308, 7316577740700 |
| Enclosure | 1 Metal Shield, ABEC 1 . |
| fillet radius: | 0.6 mm |
| finish/coating: | Uncoated |
| Harmonized Tariff Code | Bearing, 8482.10.50.68 |
| Inch - Metric | Metric, Deep Groove |
| Inner Diameter | 15 mm |
| Inner Race Width | 1.378 Inch | 35 Millime. |
| Internal Clearance | Metric, CN |
| Internal Special Featur. | Polyamide |
| Keyword String | 0.099 |
| Long Description | 0 Inch | 0 Millimeter |
| Manufacturer Name | SKF, N/A |
| manufacturer upc number: | 7316577740700 |
| Manufacturer URL | 15MM Bore; 35MM Outside. |
| Marking Cover/Seal | Z |
| Material | Bearing steel |
| Maximum Capacity / Fill. | Ball Bearing |
| maximum rpm: | 43000 rpm |
| Minimum Buy Quantity | 0.046 |
| Norm | DIN 625 |
| Noun | Ball |
| Number of Rows | Single |
| O.D. (in) | 1.378 |
| operating temperature r. | -40 to 212 |
| Other Features | Single Row Ball Bearing |
| Outer Diameter | 35 mm |
| Outer Race Width | 0.591 Inch | 15 Millime. |
| Outer Ring Shape | Grooved |
| Outside Diameter | 1.378 Inch | 35 Millime. |
| Overall Width | 11 mm |
| Precision Class | ABEC 1 | ISO P0, No |
| price | $ 13.64 / each |
| Product Group - BDI | 1 Metal Shield |
| Rolling Element | No |
| row type & fill slot: | Single Row Non-Fill Slot |
| Seal Type | 1 Metal Shield |
| Series | 62 Series |
| Snap Ring | No |
| snap ring included: | Without Snap Ring |
| static load capacity: | 3.75 kN |
| Static Load Rating | 3.75 kN |
| title | 6202-ZTN9 |
| Type | Ball |
| UNSPSC | 8482.10.50.68, 31171504 |
| UPC Code | 7316577740700 |
| Weight / kgm | 0.046 |
| Weight / Kilogram | 7316577740700 |
| Weight / LBS | 0.099, 0.433 Inch | 11 . |
| weight: | 0.11 lb |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Lily Bearing | 6202-ZTN9 | 11.59 | 1 | In Stock | | SKF | 0.1012 | 11.59 @ 1 |
 | BDI Express | 6202-ZTN9 | 11.92153761 | 1 | In Stock | | SKF | 0.1012 | 11.92153761 @ 1 |
 | MRO Supply | 321087 | 12.83 | 3 | In Stock | | SKF Bearing | | 12.83 @ 3 |
 | motionindustries.com | 05238648 | 14.56 | 1 | In Stock | | SKF | | 14.56 @ 1 |
| us.rs-online.com | 73220128 | 15.46 | 1 | 20 | | SKF Bearings | | 15.46 @ 1 |
 | Purvis | 6202-ZTN9 | 15.56 | 1 | In Stock | | SKF | | 15.56 @ 1 |
 | Misumi USA | 6202-ZTN9 | 18.27 | 1 | In Stock | 18 | SKF | | 18.27 @ 1 |
