SKF 7310 BECBY

B000MNFEMY

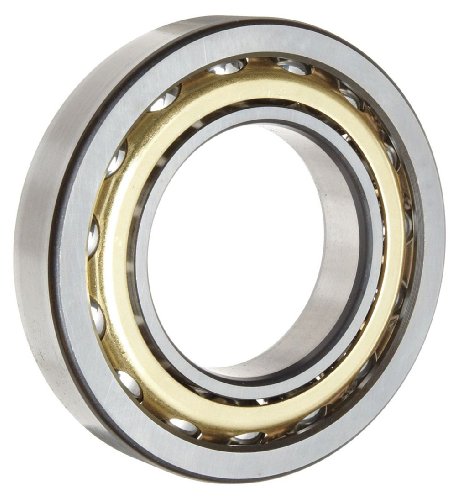

SKF 7310-BECBY Ball Bearing, Angular Contact, 50MM ID, 110MM OD, 27MM Width

SKF 7310-BECBY Ball Bearing, Angular Contact, 50MM ID, 110MM OD, 27MM Widthzoom

Attributes

Key Value
ABEC Rating3
ABEC Tolerance3
Bore1.969 Inch | 50 Millime.
Bore Dia.50 mm
Bore Diameter50 mm
Bore TypeCylindrical
BrandSKF
Cage MaterialBrass, Pressed Brass
Category - BDIAngular Contact Ball Be.
Closure TypeNone
Contact Angle40 Degree
Contact Angle (Degree)40
Current Stock3
Dynamic Load Capacity (.16,900
Dynamic Load Capacity (.75,000
EAN7316576650659
EnclosureOpen
Flush GroundYes
Harmonized Tariff Code8482.10.50.28
Housing Fillet Radius1 mm
Inch - MetricMetric
Inner Diameter50 mm
Internal ClearanceCB
International ShippingNo
ItemAngular Contact Ball Be.
Keyword StringAngular Contact
Lead TimeExpected to ship in 1-2.
Long Description50MM Bore; 110MM Outsid.
LubricationMT47 Grease
Manufacturer Item Number7310 BECBY
Manufacturer NameSKF
Max. RPM8,000 RPM
Maximum Capacity / Fill.No
Minimum Buy QuantityN/A
Mounting ArrangementUniversal
Mpn7310 BECBY
NounBearing
Number of Bearings1 (Single)
Number of RowsSingle
Number of Rows of BallsSingle Row
O.D. (in)4 1/3
Other FeaturesNormal Axial Internal C.
Outer Diameter110 mm
Outside Dia.110 mm
Outside Diameter110 mm, 4.331 Inch | 11.
Overall Width27 mm
Precision ClassABEC 3 | ISO P6
Preload160 N
Product Group - BDIB00308
Rolling ElementBall Bearing
Series7300 Series
Shaft Fillet Radius1 mm
SKUZO-G8039717
Snap RingNo
Standard Preload (lbs.)36
Standard Preload (N)160
Static Load Capacity (L.11,500
Static Load Capacity (N)51,000
Static Load Rating51 kN
SubCategoryPower Transmission
Temp. Range (F)-40 Degrees to 212 Deg.
TypeSingle Row Explorer
UNSPSC31171531
UPC7316576650659
UPC Code7316576650659
Weight / Kilogram1.13
Weight / LBS2.486
Width1.063 Inch | 27 Millime.
