- mpnNU 314 ECM/C3
- brandname: SKF
- manufacturername: SKF

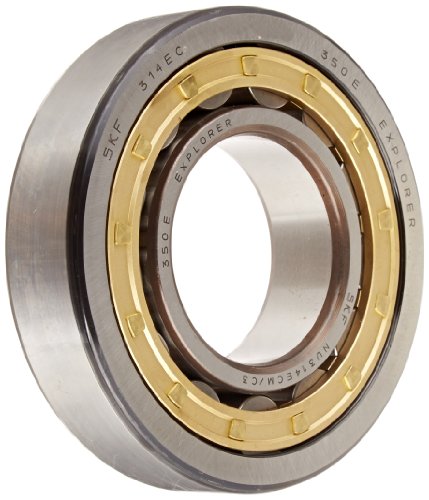

SKF NU 314 ECM/C3 Cylindrical Roller Bearing, Single Row, Removable Inner Ring, Straight Bore, High Capacity, C3 Clearance, Brass Cage, Metric, 70mm Bore, 150mm OD, 35mm Width
- Brand: SKF
- PartNumber: NU 314 ECM/C3
- Model: NU 314 ECM/C3
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: SKF
- Label: SKF
Attributes
| Key | Value |
|---|
| Bearing Type | Cylindrical Roller Bear. |
| Bore | 2.756 Inch | 70 Millime. |
| Bore Profile | Brass, Straight |
| Bore Type | Cylindrical |
| Brand | SKF |
| Cage Material | RBEC 1 | ISO P0 |
| Category | Cylindrical Roller Bear. |
| Category - BDI | 31171547 |
| Dynamic Load Rating | 235.77 kN |
| EAN | 7316576623677, B04144 |
| Global Part Number GPN | 455796 |
| Harmonized Tariff Code | Bearing, 8482.50.00.00 |
| Inch - Metric | Metric, High Capacity |. |
| Inner Diameter | 70 mm |
| Internal Clearance | C3, Yes, C3-Loose |
| Long Description | 5.906 Inch | 150 Millim. |
| Manufacturer Item Number | 70MM Bore; Straight Bor. |
| Manufacturer Name | SKF, N/A |
| Manufacturer URL | 7.108 |
| Marking Cover/Seal | None |
| Material | Bearing Steel |
| Minimum Buy Quantity | 3.23 |
| Noun | NU 314 ECM/C3 |
| Number of Raceway Ring . | Single Row |
| Number of Rows of Rolle. | Single Row, Inner Ring . |
| O.D. (in) | 5 8/9 |
| Other Features | High Capacity | Plain I. |
| Outer Diameter | 150 mm |
| Outside Diameter | 5.906 Inch | 150 Millim. |
| Overall Width | 35 mm |
| Precision Class | RBEC 1 | ISO P0, Single. |
| price | $ 485.16 / each |
| Product Group - BDI | Straight |
| Profile | Complete with Outer and. |
| Relubricatable | Metric, Yes |
| Retainer | Yes |
| Rolling Element | Complete with Outer and. |
| RPM | 5600 RPM |
| Separable | Cylindrical Roller Bear. |
| Series | 3 Series |
| Snap Ring | No, C3-Loose |
| Special Features | High Radial Load Carryi. |
| Static Load Rating | 227.76 kN |
| title | NU 314 ECM/C3 |
| UNSPSC | 31171547, 8482.50.00.00 |
| UPC Code | 7316576623677 |
| Weight / kgm | 3.23 |
| Weight / Kilogram | 7316576623677 |
| Weight / LBS | 1.378 Inch | 35 Millime. |
| Width | 1.378 Inch | 35 Millime. |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Lily Bearing | NU 314 ECM/C3 | 412.39 | 1 | In Stock | | SKF | 7.106 | 412.39 @ 1 |
 | BDI Express | NU 314 ECM/C3 | 458.30612111 | 1 | In Stock | | SKF | 7.106 | 458.30612111 @ 1 |
 | Misumi USA | NU 314 ECM/C3 | 463.34 | 1 | In Stock | 18 | SKF | | 463.34 @ 1 |
 | MRO Supply | 314676 | 483.48 | 1 | In Stock | | SKF Bearing | | 483.48 @ 1 |
| RS Delivers | 209-2123 | 502.62 | 1 | In Stock | | SKF | | 502.62 @ 1 |
| us.rs-online.com | 73230261 | 585.75 | 1 | In Stock | | SKF Bearings | | 585.75 @ 1 |
 | National Supply Network | 43342740 | 652.37 | 1 | In Stock | | SKF | | 652.37 @ 1 |
 | bscsource.com | 43342740 | 771.19 | 1 | In Stock | | SKF | | 771.19 @ 1 |
| motionindustries.com | 00071203 | 780.93 | 1 | In Stock | | SKF | | 780.93 @ 1 |
