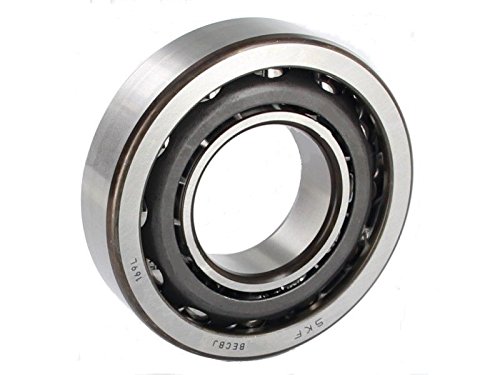

SKF 7310 BECBJ Angular Contact Ball Bearing, Single Row Explorer, 50 mm Bore, 110 mm OD, Steel Cage

SKF 7310 BECBJ Angular Contact Ball Bearing, Single Row Explorer, 50 mm Bore, 110 mm OD, Steel Cagezoom

Attributes

Key Value
ABEC Tolerance3
Bore1.969 Inch | 50 Millime.
Bore Dia.50 mm
Bore Diameter50 mm
Bore TypeCylindrical
Cage MaterialSteel
Cage Material & BrandSteel : SKF
Category - BDIAngular Contact Ball Be.
Closure TypeNone
Contact Angle40 Degree
Contact Angle (Degree)40
Contact Bearing TypeAngular Contact
Dynamic Load Capacity (.16,900
Dynamic Load Capacity (.75,000
EAN7316570795158
EnclosureOpen
Flush GroundYes
Harmonized Tariff Code8482.10.50.28
Housing Fillet Radius1 mm
Inch - MetricMetric
Inner Diameter50 mm
Internal ClearanceCB
ItemAngular Contact Ball Be.
Keyword StringAngular Contact
Long Description50MM Bore; 110MM Outsid.
LubricationMT47 Grease
Manufacturer Item Number7310 BECBJ
Manufacturer NameSKF
Max. RPM8,000 RPM
Maximum Capacity / Fill.No
Minimum Buy QuantityN/A
Mounting ArrangementUniversal
NounBearing
Number of Bearings1 (Single)
Number of RowsSingle
Number of Rows of BallsSingle Row
O.D. (in)4 1/3
Other FeaturesNormal Axial Internal C.
Outer Diameter110 mm
Outside Dia.110 mm
Outside Diameter110 mm, 4.331 Inch | 11.
Overall Width27 mm
Precision ClassABEC 1 | ISO P0
Product Group - BDIB00308
Rolling ElementBall Bearing
Series7300 Series
Shaft Fillet Radius1 mm
Snap RingNo
Standard Preload (lbs.)36
Standard Preload (N)160
Static Load Capacity (L.11,500
Static Load Capacity (N)51,000
Static Load Rating51 kN
Temp. Range (F)-40 Degrees to 212 Deg.
TypeSingle Row Explorer
UNSPSC31171531
UPC Code7316570795158
Weight / Kilogram1.153
Width1.063 Inch | 27 Millime.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomBDI Express1416250144.996912721In StockSKF2.5366144.99691272 @ 1
thumbzoomMRO Supply313591161.891In StockSKF Bearing161.89 @ 1
factorysupplyoutlet.comJI39XK165.31In Stock25SKF165.3 @ 1
thumbzoomZoroG8126185177.991In StockSkf2.6177.99 @ 1
us.rs-online.com73220881190.831In StockSKF Bearings190.83 @ 1
thumbzoomsustainablesupply.comC1573081231.441In StockSKF2.6231.44 @ 1
motionindustries.com03176201254.421In StockSKF254.42 @ 1
