SMC ZH13DSA-01-02-02

mpnZH13DSA-01-02-02
brandname: Smc
manufacturername: Smc

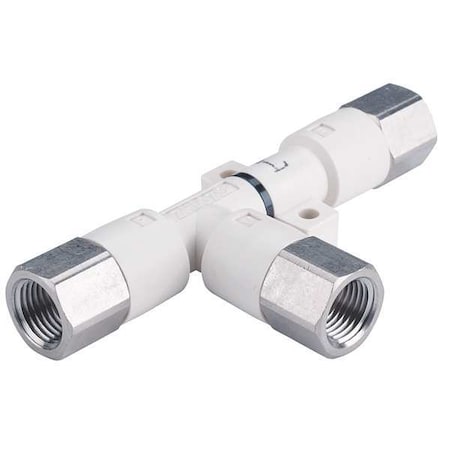

Vacuum Ejector, Inline, Body, 1/8 in NPT

Vacuum Ejector, Inline, Body, 1/8 in NPT

zoom

Brand: SMC
PartNumber: ZH13DSA-01-02-02
Model: ZH13DSA-01-02-02
PackageQuantity: 1
Binding: Misc.
Manufacturer: SMC
Label: SMC

Attributes

Key	Value
Accessories	Standard Bracket
Brand	Smc
Current Stock	41
Ejector Type	Single Stage Venturi
EXH	02 (screw-in Rc 1/4)
Exhaust Port Size	1/4 in
Exhaust Type	1/4 in NPT
Height	55.6 mm
Includes	Muffler
International Shipping	No
Item	Vacuum Ejector
Length	94.5 mm
Length (Straight Wirewa.	94.5 mm
Main Body Shape	Pipe Type
Maximum Operating Tempe.	60 Degrees C
Maximum Supply Pressure	87 psi
Mpn	ZH13DSA-01-02-02
Nozzle diameter	13 (1.3mm)
Operating Temperature R.	-5::50
Orifice Dia.	1.3 mm
Overall Length	94.5 mm
Overall Width	18.5 mm
Pressure Port Size	1/8 in NPT
SKU	ZO-G4870031
SubCategory	Pneumatics
SUP	01 (screw-in Rc 1/8)
Supply Pressure Range	30 to 87 PSI
Temp. Range	5 Degrees to 60 Degree.
VAC	02 (screw-in Rc 1/4)
Vacuum Flow Rate	40.0 lpm
Vacuum Port (Combined)	1/4 in NPT
Vacuum Port Size	1/4 in NPT
Vacuum pressure	S (-90 kPa)
Vacuum Pressure @ 40 PSI	-20 KPA
Vacuum Pressure @ 75 PSI	-48 KPA
Vacuum Pressure Range	0 to -88 KPA
Weight	53 g
Width	18.5 mm

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	smcpneumatics.com	ZH13DSA-01-02-02	22.25	1	102		SMC		22.25 @ 1
	ipneumatics.com	ZH13DSA-01-02-02	22.25	1	102		SMC		22.25 @ 1
	Airline Hydraulics	SMC ZH13DSA-01-02-02	22.25	1	116		SMC		22.25 @ 1
	Misumi USA	ZH13DSA-01-02-02	25.69	1	In Stock		SMC		25.69 @ 1
	MRO Supply	6434078	26.37	3	In Stock		SMC		26.37 @ 3
	us.rs-online.com	71449325	26.63	1	In Stock		SMC Corporation		26.63 @ 1
	Zoro	G4870031	40.29	1	55		Smc	0.25	40.29 @ 1
	RS Delivers	176-5408	46.584	1	5		SMC		46.584 @ 1
	simsupply.com	ZO-G4870031	53.66	1	41		Smc		53.66 @ 1
