CR-1-1/8-B

B08SBF2592

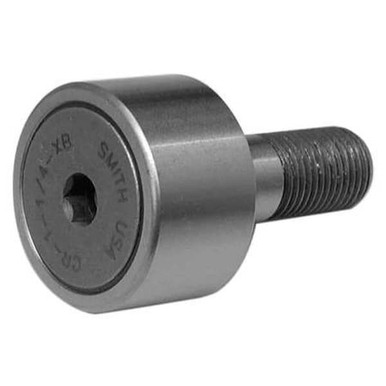

Cam Follower, Stud, Hex Socket, Unsealed

Cam Follower, Stud, Hex Socket, Unsealedzoom

Attributes

Key Value
Agency ComplianceABMA
Basic Dynamic Rating (l.3030
Bearing MaterialAlloy Steel
Bearing Material GradeAISI 52100, 52100
Bearing TypeNeedle Roller, Unsealed.
BrandSmith Bearing
Brand & Part Number Com.SMITH BEARING CR-1-1/8-B
ClosureOpen
Country of Origin (subj.Multiple
Current Stock39
Drive LocationStud
Drive TypeHex Socket
Duty TypeStandard
Dynamic Load Capacity (.3,030 lb
Dynamic Radial Load Cap.3,030 lbf
Eff. Thread Min.1/2
Face DesignHex Socket
FeaturesHex Head Stud Type Need.
Flange DiameterNot Applicable
Flange ThicknessNot Applicable
Hex Drive Size1/4 in
International ShippingNo
ItemCam Follower
Load DirectionRadial
Lube Fitting Size3/16
Lubrication OpeningsOiler Hole
Max. Static Capacity (l.3100
Maximum Temperature250 Degrees F
Min. Boss Dia.5/8
Minimum Temperature-30 Degrees F
MpnCR-1-1/8-B
Number of Bearings1
Oil Hole Dia.3/32
Oil Hole Location1/4
Overall Length1 21/32 in
Recom. Bore.4375
Recom. Torque (lbs-in)350
Roller Dia.1.125 in
Roller Dia. (In.)1.1250
Roller Diameter1 1/8 in
Roller Head TypeFlat
Roller MaterialAlloy Steel
Roller Material Grade52100
Roller O.D.1.125
Roller O.D. Tolerance+.000/-.001
Roller ShapeFlat
Roller StyleStud
Roller TypeHex Socket Head
Roller Width.625, 0.625 in, 5/8 in
Roller Width (In.)0.6250
Roller Width Tolerance+.000/-.005
Rolling Element Rows1
Seal TypeNot Applicable
SKUZO-G4098534
SMITH Bearing NumberCR-1-1/8-B
StandardsABMA
Static Load Capacity (L.3,100 lb
Static Radial Load Capa.3,100 lbf
Stud Dia..4375, 0.4375 in
Stud Dia. (In.)0.4375
Stud Dia. Tolerance+.001/-.000
Stud Diameter7/16 in
Stud Length1, 1.0 in, 1 in
Stud Length (In.)1.000
Stud MaterialCarbon Steel
Stud Thread Length1/2 in
Stud Thread Size7/16"-20
Stud TypeConcentric
SubCategoryPower Transmission
System of MeasurementInch
Thread Length (In.)0.5 in
Thread Size7/16-20
Thread U.N.F. Class 2A7/16-20
TypeStud

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomMRO Supply278853117.233In StockSmith Bearings17.23 @ 3
thumbzoomZoroG409853435.24145Smith Bearing0.235.24 @ 1
grainger.caWWG13W71036.370138661In StockSMITH BEARING0.236.37013866 @ 1
thumbzoomsimsupply.comZO-G409853437.381In StockSmith Bearing37.38 @ 1
thumbzoomRaptor SuppliesAA6FUQ49.6550341In StockSMITH BEARING49.655034 @ 1
