- mpnCR-1-1/8-X
- brandname: Smith Bearings
- manufacturername: Smith Bearings

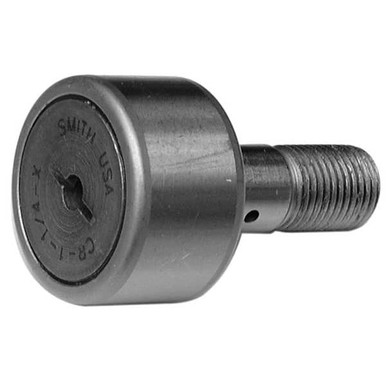

Cam Follower, Stud, Screwdriver Slot, Seal
- PartNumber: CR-1-1/8-X
- Manufacturer: SMITH BEARING
Attributes
| Key | Value |
|---|
| Agency Compliance | ABMA |
| Basic Dynamic Rating (l. | 3030 |
| Bearing Material | Alloy Steel |
| Bearing Material Grade | AISI 52100, 52100 |
| Bearing Type | Needle Roller,Sealed, N. |
| Brand | Smith Bearing |
| Brand & Part Number Com. | SMITH BEARING CR-1-1/8-X |
| Closure | Double Sealed |
| Country of Origin (subj. | Multiple |
| Current Stock | 13 |
| Drive Location | Stud |
| Drive Type | Slotted |
| Duty Type | Standard |
| Dynamic Load Capacity (. | 3,030 lb |
| Dynamic Radial Load Cap. | 3,030 lbf |
| Eff. Thread Min. | 1/2 |
| Face Design | Screwdriver Slot |
| Features | Screwdriver Slot Stud T. |
| Flange Diameter | Not Applicable |
| Flange Thickness | Not Applicable |
| International Shipping | No |
| Item | Cam Follower |
| Load Direction | Radial |
| Lube Fitting Size | 3/16 |
| Lubrication Openings | Oiler Hole |
| Max. Static Capacity (l. | 3100 |
| Maximum Temperature | 250 Degrees F |
| Min. Boss Dia. | 5/8 |
| Minimum Temperature | -30 Degrees F |
| Mpn | CR-1-1/8-X |
| Number of Bearings | 1 |
| Oil Hole Dia. | 3/32 |
| Oil Hole Location | 1/4 |
| Overall Length | 1 21/32 in |
| Recom. Bore | .4375 |
| Recom. Torque (lbs-in) | 350 |
| Roller Dia. | 1.125 in |
| Roller Dia. (In.) | 1.1250 |
| Roller Diameter | 1 1/8 in |
| Roller Head Type | Flat |
| Roller Material | Alloy Steel |
| Roller Material Grade | 52100 |
| Roller O.D. | 1.125 |
| Roller O.D. Tolerance | +.000/-.001 |
| Roller Shape | Flat |
| Roller Style | Stud |
| Roller Type | Screwdriver Slot Head |
| Roller Width | .625, 0.625 in, 5/8 in |
| Roller Width (In.) | 0.6250 |
| Roller Width Tolerance | +.000/-.005 |
| Rolling Element Rows | 1 |
| Seal Material | Molded Acetyl |
| Seal Type | Contact |
| SKU | ZO-G4083755 |
| SMITH Bearing Number | CR-1-1/8-X |
| Standards | ABMA |
| Static Load Capacity (L. | 3,100 lb |
| Static Radial Load Capa. | 3,100 lbf |
| Stud Dia. | .4375, 0.4375 in |
| Stud Dia. (In.) | 0.4375 |
| Stud Dia. Tolerance | +.001/-.000 |
| Stud Diameter | 7/16 in |
| Stud Length | 1, 1.0 in, 1 in |
| Stud Length (In.) | 1.000 |
| Stud Material | Carbon Steel |
| Stud Thread Length | 1/2 in |
| Stud Thread Size | 7/16"-20 |
| Stud Type | Concentric |
| SubCategory | Power Transmission |
| System of Measurement | Inch |
| Thread Length (In.) | 0.5 in |
| Thread Size | 7/16-20 |
| Thread U.N.F. Class 2A | 7/16-20 |
| Type | Stud |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| MRO Supply | 2788555 | 16.25 | 3 | In Stock | | Smith Bearings | | 16.25 @ 3 |
 | Zoro | G4083755 | 16.89 | 1 | 32 | | Smith Bearing | 0.2 | 16.89 @ 1 |
 | sustainablesupply.com | C1658241 | 20.13 | 1 | In Stock | | Smith Bearing | 0.2 | 20.13 @ 1 |
 | simsupply.com | ZO-G4083755 | 25.96 | 1 | 13 | | Smith Bearing | | 25.96 @ 1 |
| motionindustries.com | 00096112 | 30.65 | 1 | In Stock | | Smith Bearing Company | | 30.65 @ 1 |
| grainger.ca | GUS13W688 | 37.27739616 | 1 | In Stock | | SMITH BEARING | 0.2 | 37.27739616 @ 1 |
 | Raptor Supplies | AA6FTT | 53.163513 | 1 | In Stock | | SMITH BEARING | | 53.163513 @ 1 |
