Smith Bearing HR-1-XBC

B00MHS1XKY

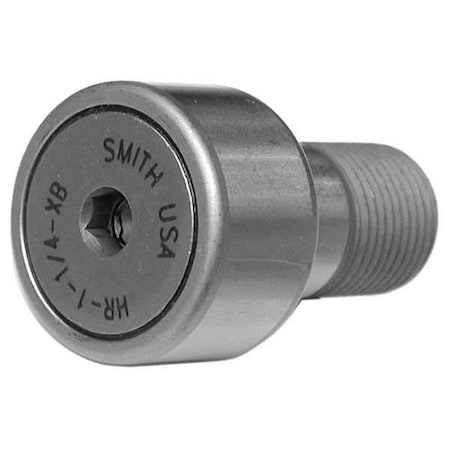

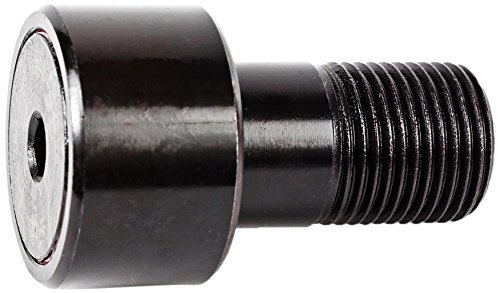

Smith Bearing HR-1-XBC Cam Follower Needle Roller Bearing, Crowned-Heavy Stud with Hex-Drive Socket, Sealed, 1.000"

Smith Bearing HR-1-XBC Cam Follower Needle Roller Bearing, Crowned-Heavy Stud with Hex-Drive Socket, Sealed, 1.000"zoom

Attributes

Key Value
Basic Dynamic Rating (l.2850
Bearing MaterialAlloy Steel
Bearing Material GradeAISI 52100
Bearing TypeNeedle Roller,Sealed, N.
BrandSmith Bearing
ClosureDouble Sealed
Crown Radius (Inches)12
Current Stock22
Drive LocationStud
Drive TypeHex Socket
Duty TypeHeavy
Dynamic Radial Load Cap.2,850 lbf
Eff. Thread Min.1/2
Face DesignHex Socket
Flange DiameterNot Applicable
Flange ThicknessNot Applicable
Hex Drive Size1/4 in
HEX Size1/4
International ShippingNo
ItemCam Follower
Lead TimeExpected to ship in 1-2.
Load DirectionRadial
Lube Fitting Size3/16
Lubrication OpeningsOiler Hole
Max. Static Capacity (l.6200
Maximum Temperature250 Degrees F
Min. Boss Dia.3/4
Minimum Temperature-30 Degrees F
MpnHR-1-XBC
Oil Hole Dia.3/32
Oil Hole Location1/4
Overall Length1 21/32 in
Recom. Bore.6250
Recom. Bore Tolerance+.0005/-.0000
Recom. Torque (lbs-in)500
Roller Dia.1.0 in
Roller Dia. (In.)1.0000
Roller Diameter1 in
Roller Head TypeCrowned
Roller MaterialAlloy Steel
Roller Material Grade52100
Roller O.D.1.000
Roller O.D. Tolerance+.000/-.001
Roller ShapeCrowned
Roller StyleHeavy Stud
Roller Width.625, 0.625 in, 5/8 in
Roller Width (In.)0.6250
Roller Width Tolerance+.000/-.005
Rolling Element Rows1
Seal MaterialMolded Acetyl
Seal TypeContact
SKUZO-G3947221
SMITH Bearing NumberHR-1-XBC
StandardsABMA
Static Radial Load Capa.6,200 lbf
Stud Dia..6250, 0.625 in
Stud Dia. (In.)0.6250
Stud Dia. Tolerance+.001/-.000
Stud Diameter5/8 in
Stud Length1, 1.0 in, 1 in
Stud Length (In.)1.000
Stud MaterialCarbon Steel
Stud Thread Length1/2 in
Stud Thread Size5/8"-18
Stud TypeConcentric
SubCategoryPower Transmission
System of MeasurementInch
Thread Length (In.)0.5 in
Thread Size5/8-18
Thread U.N.F. Class 2A5/8-18

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomMRO Supply278887522.492In StockSmith Bearings22.49 @ 2
thumbzoomZoroG394722123.59158Smith Bearing0.2223.59 @ 1
thumbzoomsimsupply.comZO-G394722134.48122Smith Bearing34.48 @ 1
motionindustries.com0594219842.41In StockSmith Bearing Company42.4 @ 1
grainger.caGUS11Y15147.279002841In StockSMITH BEARING0.2247.27900284 @ 1
thumbzoomRaptor SuppliesAA3XMW68.79523951In StockSMITH BEARING68.7952395 @ 1
