- mpnSLS12068T
- brandname: Sola Hd
- manufacturername: Sola Hd

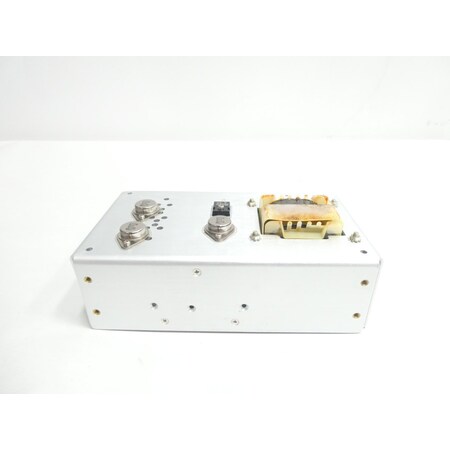

Silver LINE Series - Single and Multi-Output LINEARS
- Brand: SOLA-HD
- PartNumber: SLS-12-068T
- Size: One Size
- Manufacturer: SOLA HD
- Label: SOLA HD
Attributes
| Key | Value |
|---|
| Application | Industrial control circ. |
| Applications | ITE (Commercial) |
| Approval Agency | CSA, cURus |
| Approvals | CE, CSA, UL |
| Base Product Number | SLS-12 |
| Category | Power Supplies - Extern. |
| Configuration | Open Frame |
| Country of Origin (subj. | Unknown |
| Current - Output 1 | 6.8 A |
| Current Rating | 6.8 A |
| Description | AC/DC CONVERTER 12V 82W |
| Detailed Description | Open Frame AC DC Conver. |
| Digi-Key Part Number | 2106-SLS-12-068T-ND |
| Efficiency | - |
| Efficiency % | 50 % |
| Encapsulated | No |
| Enclosure | No |
| Family Series | SolaHD Power Supplies, . |
| Features | Adjustable Output, Remo. |
| Frequency | 47 to 63 Hz |
| Gross Weight | 7.4 lbs |
| In. Voltage | 100-240 |
| Input Frequency | 47-63 Hz |
| Input Voltage | 100 VAC ; 110 VAC ; 115. |
| Input Voltage (AC) | 100-240 VAC |
| Input Voltage Range | 100-240 VAC |
| Input Volts-Autoranging | No |
| Item Number | SLS-12-068T |
| Line Regulation | 0.05 % |
| Load Regulation | 0.05 % |
| Manufacturer | SolaHD |
| Manufacturer Part Number | SLS12068T |
| Manufacturer Product Nu. | SLS-12-068T |
| Mfr | SolaHD |
| Minimum Load Required | - |
| Mounting | Panel |
| Mounting Type | Panel Mount, Chassis Mo. |
| Net Weight | 1.31 lbs |
| Nominal Input Voltage (. | 120 VAC, 240 VAC |
| Nominal Output VDC | 12 VDC |
| Number of Outputs | 1 |
| Operating Temperature | 32-122 ?F, 0 to +50 ?C,. |
| Operation | Linear |
| Out. Voltage | 12 VDC |
| Output Current | 6.8 A |
| Output Power | 81.6 W |
| Output VDC | 12 VDC |
| Output Voltage | 12 VDC |
| Output Voltage Adj. | Yes |
| Overload Protection | Yes |
| Overvoltage Protection | No |
| Package | Bulk |
| Package Quantity | 1 |
| Parallel Operation | No |
| Phase (Input) | 1 |
| Power | 81.6 W |
| Power (Watts) | 82W |
| Power Factor Correction | No |
| Primary Type | AC-DC |
| Product Header | Silver Line Series Line. |
| Product Series | Silver Line |
| Product Status | Not For New Designs |
| Remote On/Off Control | No |
| Remote Sensing | Yes |
| Series | Silver Line, Silverline. |
| Short Circuit Protection | Yes |
| Size / Dimension | 9.00" L x 4.87" W x 2.7. |
| Special Features | Remote Sense |
| Standard Number | - |
| Standards | UL Recognized, CS Certi. |
| Temperature Coefficient | 0.01% (Typ.) |
| Type | DC Power Supply, Open F. |
| Voltage - Input | 100 ~ 240 VAC |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Mouser | 663-SLS12068T | 189.89 | 1 | 3 | | Sola/Hevi-Duty | | 189.89 @ 1 |
 | Carlton Bates Company | 78347260042 | 198.98 | 1 | In Stock | | SOLAHD | | 198.98 @ 1 |
 | Zoro | G509922855 | 198.99 | 1 | 1 | | Sola | | 198.99 @ 1 |
| Onlinecomponents.com | SLS-12-068T | 208.69 | 1 | 1 | | Sola/Hevi-Duty | | 208.69 @ 1 |
 | sustainablesupply.com | C1195336 | 226.61 | 1 | In Stock | | Sola | 7.8 | 226.61 @ 1 |
| Hawk Electronics | SLS12068T | 228.9 | 1 | In Stock | | Sola HD | | 228.9 @ 1 |
 | Walker Industrial | SLS12068T | 232.02 | 1 | In Stock | 17 | SolaHD | | 232.02 @ 1 |
| Grainger | 3TA30 | 232.5 | 1 | 8 | 0 | SOLA/HEVI-DUTY | | 232.5 @ 1 |
 | Digi-Key | 10071954 | 238.94 | 1 | 1 | | SolaHD | | 238.94 @ 1 |
 | MRO Supply | 1011941 | 247.49 | 2 | In Stock | | SolaHD | | 247.49 @ 2 |
| us.rs-online.com | 70211583 | 288.67 | 1 | In Stock | | SolaHD | | 288.67 @ 1 |
 | Platt.com | 0811515 | 292.92 | 1 | In Stock | | Sola Hevi-Duty | | 292.92 @ 1 |
| RS Delivers | 891-3446 | 330.204 | 1 | In Stock | | SolaHD | | 330.204 @ 1 |
 | Galco | SLS-12-068T-SOLA | 337.49 | 1 | In Stock | | SolaHD | 7.4 | 337.49 @ 1 |
 | Raptor Supplies | AD2NRX | 343.205226 | 1 | In Stock | | SOLA/HEVI-DUTY | | 343.205226 @ 1 |
| kirbyrisk.com | 517817 | 344.72 | 1 | In Stock | | Solahd | | 344.72 @ 1 |
