- mpnSTFV02510N
- brandname: Sola Hd
- manufacturername: Sola Hd

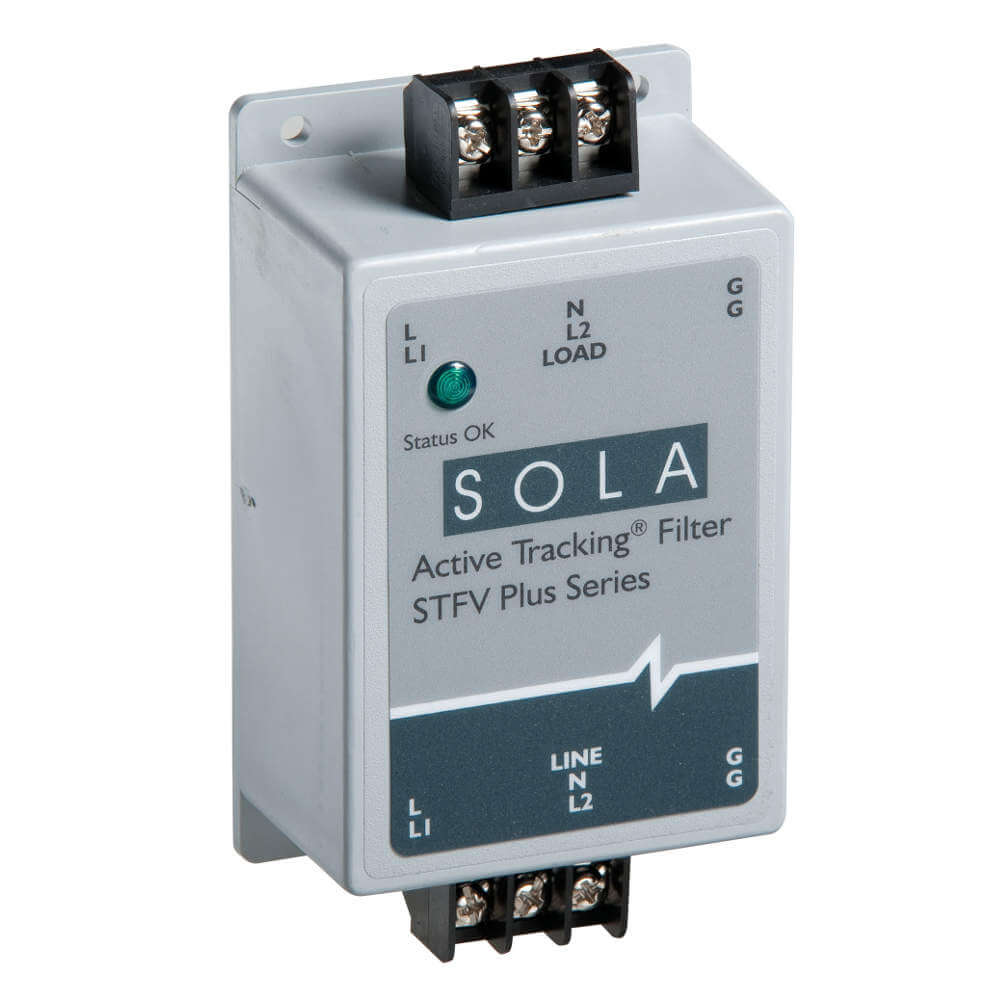

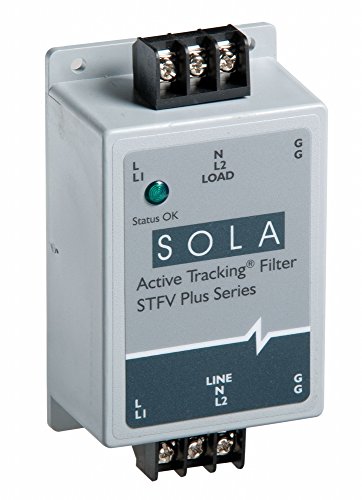

SOLA/HEVI-Duty 1 Phase Surge Protection Device, 120VAC
- Brand: Sola/Hevi-Duty
- PartNumber: STFV02510N
- Model: STFV02510N
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: SOLA/HEVI-DUTY
- Label: SOLA/HEVI-DUTY
Attributes
| Key | Value |
|---|
| Amps | 2.5 A |
| Basic Material | Nonmetallic |
| Brand | Solahd |
| Country of Origin (subj. | Unknown, Mexico |
| Current Stock | 37 |
| Depth | 1.81 in |
| Enclosure Material | Epoxy Encapsulated Plas. |
| Filtering | Yes |
| Filtering / Nonfiltering | Filtering |
| Green Certification or . | ENERGY STAR |
| Green Environmental Att. | Does not Contain Reprod. |
| Includes | LED Status Indicator |
| International Shipping | No |
| Item | Surge Protection Device |
| Length | 4.0 in |
| Length (Straight Wirewa. | 4.0 in |
| Max. Continuing Operati. | 150V AC |
| Max. Operating Temp. | 140 Degrees F |
| Max. Surge Current per . | 12.5kA (L-N, L-G, N-G) |
| Max. Surge Current Per . | 12.5kA (L-N, L-G, N-G) |
| Max. Surge Current per . | 25 kA |
| Max. Surge Current Per . | 25kA |
| Min. Operating Temp. | -40 Degrees F |
| Modes of Protection | L-G, L-N, N-G |
| Modular | Yes |
| Modular / Nonmodular | Modular |
| Mounting Style | Surface |
| Mpn | STFV02510N |
| Noise Attenuation | 90dB @ 100kHz to 50 MHz |
| Nominal Discharge Curre. | 2.5 A |
| Number of Poles | 1 |
| Number of Wires | 2 Wires + Ground |
| Phase | Single |
| Short Circuit Current R. | Not Rated |
| SKU | ZO-G4407654 |
| Standards | CE, CSA, cULus Listed, . |
| SubCategory | Electrical |
| System Connection | Series |
| UPC | 783472700325 |
| Voltage | 120V AC |
| Width | 2.88 in |
| Wire Gauge | 26 AWG |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Hawk Electronics | STFV02510N | 140.7 | 1 | In Stock | | Sola HD | | 140.7 @ 1 |
 | Zoro | G4407654 | 150.18 | 1 | In Stock | | Solahd | 1.4 | 150.18 @ 1 |
 | Walker Industrial | STFV02510N | 151.32 | 1 | In Stock | 17 | SolaHD | | 151.32 @ 1 |
 | sustainablesupply.com | C1163357 | 153.33 | 1 | In Stock | | Sola | 1.4 | 153.33 @ 1 |
 | simsupply.com | ZO-G4407654 | 179.54 | 1 | In Stock | | Solahd | | 179.54 @ 1 |
| kirbyrisk.com | 2193364 | 210.84 | 1 | 2 | | Solahd | | 210.84 @ 1 |
 | Raptor Supplies | AA8QBP | 297.3380085 | 1 | In Stock | | SOLA/HEVI-DUTY | | 297.3380085 @ 1 |
