- mpnSTFV07524L
- brandname: Sola Hd
- manufacturername: Sola Hd

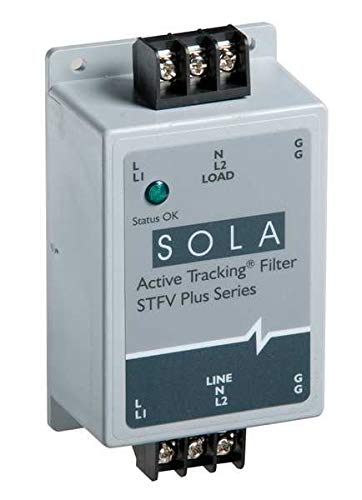

Surge Protection Device, 1 Phase, 240V
- Brand: Sola/Hevi-Duty
- PartNumber: STFV07524L
- Model: STFV07524L
- Manufacturer: SOLA/HEVI-DUTY
- Label: SOLA/HEVI-DUTY
Attributes
| Key | Value |
|---|
| Amps | 7.5 A |
| Basic Material | Nonmetallic |
| Country of Origin (subj. | Unknown, Mexico |
| Depth | 2.35 in |
| Enclosure Material | Epoxy Encapsulated Plas. |
| Filtering | Yes |
| Filtering / Nonfiltering | Filtering |
| Green Certification or . | ENERGY STAR |
| Green Environmental Att. | Does not Contain Reprod. |
| Includes | LED Status Indicator |
| Item | Surge Protection Device |
| Length | 4.75 in |
| Length (Straight Wirewa. | 4.75 in |
| Max. Continuing Operati. | 275V AC |
| Max. Operating Temp. | 140 Degrees F |
| Max. Surge Current per . | 12.5kA (L-N, L-G, N-G) |
| Max. Surge Current Per . | 12.5kA (L-N, L-G, N-G) |
| Max. Surge Current per . | 25 kA |
| Max. Surge Current Per . | 25kA |
| Min. Operating Temp. | -40 Degrees F |
| Modes of Protection | L-G, L-L, L-N, N-G |
| Modular | Yes |
| Modular / Nonmodular | Modular |
| Mounting Style | Surface |
| Noise Attenuation | 90dB @ 100kHz to 50 MHz |
| Nominal Discharge Curre. | 7.5 A |
| Number of Poles | 2 |
| Number of Wires | 2 Wires + Ground |
| Phase | Single |
| Short Circuit Current R. | Not Rated |
| Standards | CE, CSA, cULus Listed, . |
| System Connection | Series |
| Voltage | 240V AC |
| Width | 4.75 in |
| Wire Gauge | 18 AWG |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Hawk Electronics | STFV07524L | 396.6 | 1 | In Stock | | Sola HD | | 396.6 @ 1 |
 | Walker Industrial | STFV07524L | 413.28 | 1 | In Stock | 10 | SolaHD | | 413.28 @ 1 |
 | Zoro | G4407593 | 449.84 | 1 | In Stock | 20 | Solahd | 3.55 | 449.84 @ 1 |
 | sustainablesupply.com | C1163362 | 493.66 | 1 | In Stock | | Sola | 3.55 | 493.66 @ 1 |
| us.rs-online.com | 71715511 | 505.79 | 1 | In Stock | | SolaHD | | 505.79 @ 1 |
| kirbyrisk.com | 2201013 | 512.93 | 1 | In Stock | | Solahd | | 512.93 @ 1 |
 | Raptor Supplies | AA8QBV | 864.6836445 | 1 | In Stock | | SOLA/HEVI-DUTY | | 864.6836445 @ 1 |
