Solid State 1N3309B

mpn1N3309B
brandname: Solid State Manufacturing
manufacturername: Solid State Manufacturing

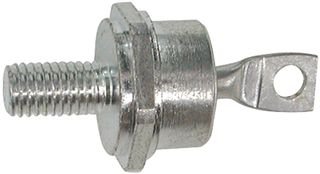

SOLID STATE 1N3309B ZENER DIODE, 50W, 10V, DO-5

SOLID STATE 1N3309B ZENER DIODE, 50W, 10V, DO-5

zoom

Brand: Solid State
PartNumber: 1N3309B
Model: 1N3309B
PackageQuantity: 1
Manufacturer: SOLID STATE
Label: SOLID STATE

Attributes

Key	Value
Base Product Number	1N3309
Category	Discrete Semiconductor .
Current - Reverse Leaka.	10 ?A @ 6.7 V
Description	DO5 50 WATT ZENER DIOD.
Detailed Description	Zener Diode 10 V 50 W ?.
Digi-Key Part Number	2383-1N3309B-ND
Impedance (Max) (Zzt)	0.6 Ohms
Manufacturer	Solid State Inc.
Manufacturer Product Nu.	1N3309B
Mfr	Solid State Inc.
Mounting Type	Stud Mount
Operating Temperature	-65?C ~ 175?C (TJ)
Package	Box
Package / Case	DO-203AB, DO-5, Stud
Power - Max	50 W
Product Status	Active
Series	1N3309 Series, -
Supplier Device Package	DO-5
Tolerance	?5%
Voltage - Forward (Vf) .	1.5 V @ 10 A
Voltage - Zener (Nom) (.	10 V

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Digi-Key	14546833	9.35	5	In Stock		Solid State Inc.		9.35 @ 5
	us.rs-online.com	70314345	9.96	25	In Stock		Solid State Manufacturing		9.96 @ 25
	Newark	10P4792	10.36	1	8		SOLID STATE		10.36 @ 1
	Radwell	1N3309B	16.0	1	In Stock		SOLID STATE INC		16.0 @ 1
