| Air Cylinder Bore Dia. | 40 mm |
| Air Cylinder Mount | Double End |
| Air Cylinder Type | ISO |
| Body Material | Stainless steel |
| Bore Dia. | 40 mm |
| Country of Origin (subject to change) | Japan |
| Cushion Type | Rubber Bumper |
| Cylinder Action | Double Acting |
| Cylinder Type | ISO Round |
| Dimension A | 150mm + stroke |
| Dimension B | 24mm |
| Dimension C | M12 x 1.75 in |
| Dimension D | M38 x 1.5 in |
| Dimension E | 1/4 in G |
| End Cap Material | Aluminum |
| Features | Rubber Bumpers |
| Finish | Hard Coat Anodized |

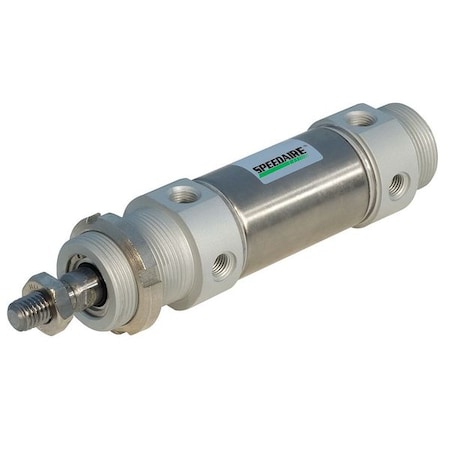

| Item | Air Cylinder |
| Magnetic Piston | Yes |
| Max. Pressure | 145 psi |
| Mount | Double End |
| Nose Mount Thread | M38 x 1.5 in |
| Overall Length | 199 mm |
| Piston Material | Magnetic |
| Piston Rod Material | Chrome Plated Carbon Steel |
| Port Size | 1/4 in G |
| Rod Dia. | 14 mm |
| Rod Thread Length | 24 mm |
| Rod Thread Size | M12 x 1.75 in |
| Single Acting/Double Acting | Double Acting |
| Standards | CETOP RP52P, ISO 6432 |
| Stroke | 25 mm |
| Temp. Range | 14 Degrees to 140 Degrees F |
| Tie Rod Material | N |
| Tube Material | Stainless steel |
