| Air Cylinder Bore Dia., Bore Dia. | 9/16 in |
| Air Cylinder Mount, Mount | Double End |
| Air Cylinder Type | Round Body |
| Body Material, Tube Material | Stainless steel |
| Country of Origin (subject to change) | United States |
| Cushion Type | None |
| Cylinder Action, Single Acting/Double Acting | Double Acting |
| Cylinder Type | Round |
| Dimension A | 6 1/4 in |
| Dimension B | 0.654 in |
| Dimension C | 6.06 in |
| Dimension D, Nose Mount Thread | 7/16"-20 UNF |
| Dimension E | 10-32 UNF |
| End Cap Material | Aluminum |
| Features | Switched |
| Finish | Hard Coat Anodized |

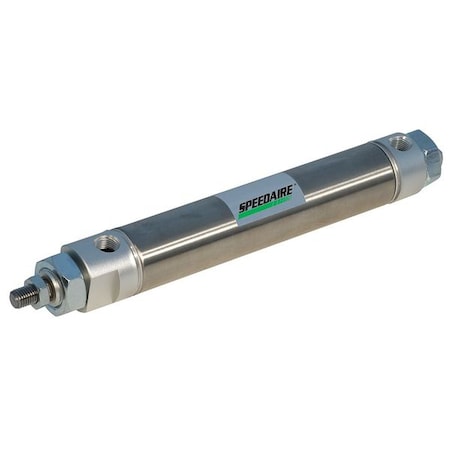

| Item | Air Cylinder |
| Magnetic Piston | Yes |
| Max. Pressure | 250 psi |
| Overall Length | 6.25 in |
| Piston Material | Magnetic |
| Piston Rod Material | Chrome Plated Carbon Steel |
| Pivot Hole Dia. | 0.157 in |
| Port Size, Rod Thread Size | #10-32 UNF |
| Rod Dia. | 0.197 in |
| Rod Thread Length | 0.5 in |
| Stroke | 3 in |
| Temp. Range | 40 Degrees to 140 Degrees F |
| Tie Rod Material | N |
