Attributes
| Key ^ | Value |
|---|---|
| Actual Dia. (Min.-Max) | 0.194" to 0.199" |
| Basic Material | Stainless Steel |
| Double Shear Strength (Lbs.) | 2425 lbs |
| Fastener Finish | Passivated |
| Fastener Length | 13/16 in |
| Fits Hole Dia. (Min.-Max.) | .187" - .192" |
| Material Grade | 302/304 |
| Outside Dia. | .188" (3/16) |
| Overall Length | .813" (13/16) |

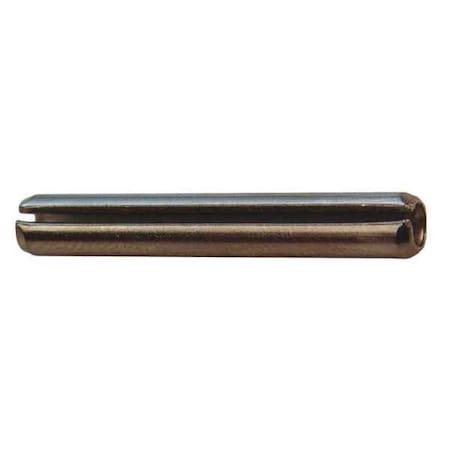

| Pin Item | Spring Pin |
| Rockwell Hardness | Work Hardened |
| Spring Pin Type | Slotted Spring Pin |
| Standards | ASME B18.8.2 |
| System of Measurement | Inch |
| Wall Thickness | .040" |
