Attributes
| Key ^ | Value |
|---|---|
| Actual Dia. (Min.-Max) | 0.083" to 0.086" |
| Basic Material | Stainless Steel |
| Double Shear Strength (Lbs.) | 800 lbs |
| Fastener Finish | Passivated |
| Fastener Length | 1 1/8 in |
| Fits Hole Dia. (Min.-Max.) | .078" - .081" |
| Material Grade | 420 |
| Outside Dia. | .078" (5/64) |
| Overall Length | 1.125" (1-1/8) |

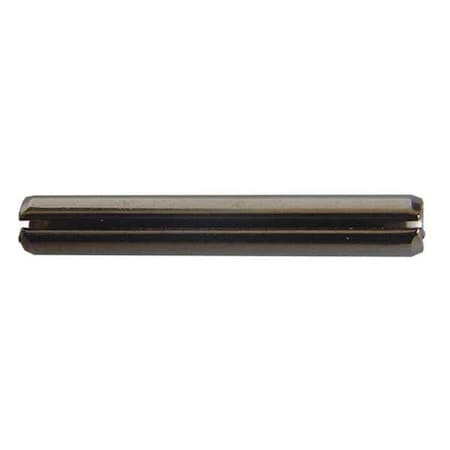

| Pin Item | Spring Pin |
| Rockwell Hardness | HV 423-544 |
| Spring Pin Type | Slotted Spring Pin |
| Standards | ASME B18.8.2 |
| System of Measurement | Inch |
| Wall Thickness | .018" |
