mpn:
brand:
manufacturer:
MPN:
Description:
Relay
Weight:
0.044
Weight:
0.044 LB
Preferred Price:
42.62
Price:
42.62
Min Simple Price:
23.29
Absolute Min Price:
33.07
Min Price:
33.07
Dimensions:
[2.0, 2.0, 1.0]
qty:
21
simpleSku:
jM2NTM:::70S201A05N
sku:
jM2NTM::3A:70S201A05N@y0
condition:
11
seller:
gordonelectricsupply.com
amzMan:
schneider electric/magnecraft
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| Alternate Mfr Part Number | PS714261E |
| Application | Ideal for tight designs, wide choice of design options, input isolated from output, reduced current surged for most loads, excellent transient protection |
| Auxiliary Switch, Integral Heat Sink, MOV, Status Indicator | No |
| Circuit | 1NO |
| Contact Current Rating, Current Rating | 5 A |
| Contact Form | SPST-NO |
| Control Voltage | 30 VDC |
| Dielectric Strength | 2500 V (RMS) |
| Dimensions | 2.2 L x 1 W x 0.864 D in |
| Family Series | Schneider Relays, 70S2 Series |
| Function | General Purpose |
| Gross Weight, Net Weight | 0.0022 lbs |
| Input Polarity, Switching Type | DC |
| Input Signal | 3-15 VDC |
| Item Number | 70S2-01-A-05-N |
| Manufacturer | Schneider |
| Manufacturer Part Number | PS714261EM |
| Mounting | Surface |
| Mounting Type | Panel Mount |
| Nominal Output Voltage | 12 VDC, 3.3 VDC, 6 VDC, 60 VDC, 24 VDC, 48 VDC |
| Number of Circuits | 1 |
| Output Voltage | 3-60 VDC |
| Primary Type | Solid State Relays |
| Product Description | The 70S2 Series relays have excellent thermal performance and are designed for medium-power loads. Its compact size makes it ideal for designs where space is limited. The design incorporates a triac output for AC loads and MOSFETs for DC loads. Optical isolation protects the control from transients. |

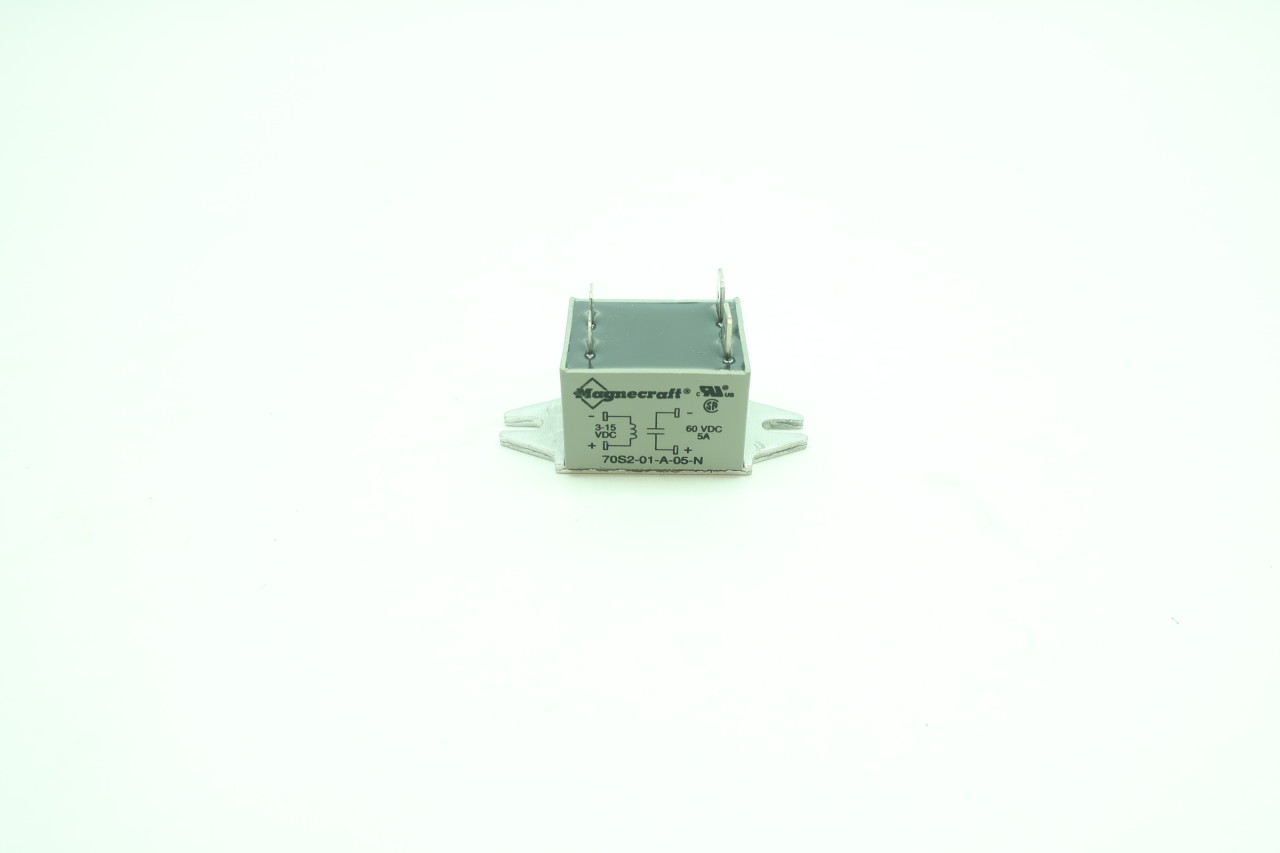

| Product Header | N Style 70S2 Series Solid State Relay |
| Product Series | 70S2 |
| Relay Type | Solid State |
| Series | 70S2 Series |
| Snubber | Yes |
| Standards | UL, CSA |
| Surge Current | 7 A |
| Termination | Screw, Solder Terminal |
| Voltage Rating | 60 V |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| gordonelectricsupply.com | 70S201A05N | 23.29 | 23.29 | 1 | In Stock | 10 | SQUARE D | 23.29 @ Qty: 1+ | ||
| Mouser | 528-70S2-01-A-05-N | 28.7 | 28.7 | 1 | 16 | Schneider Electric | 28.7 @ Qty: 1+ | |||
| RS Delivers | 814-8217 | 29.94 | 29.94 | 1 | 3 | Schneider Electric | 29.94 @ Qty: 1+ | |||
| Verical | 70S2-01-A-05-N | 31.61 | 44.254 | 2 | 155 | Schneider Electric | 31.61 @ Qty: 2+ | |||
| AmazonTP | B00HKHTO3A | 34.31 | 34.31 | 1 | In Stock | 2 | Magnecraft / Schneider Electric | 34.31 @ Qty: 1+ | ||
| AmazonSC | B005S3LVOS | 40.98 | 40.98 | 1 | In Stock | MAGNECRAFT | 40.98 @ Qty: 1+ | |||
 | NRI Industrial | D617870 | 41.95 | 41.95 | 1 | In Stock | MAGNECRAFT | 41.95 @ Qty: 1+ | ||
| us.rs-online.com | 70184943 | 43.63 | 43.63 | 1 | 104 | Schneider Electric/Legacy Relays | 43.63 @ Qty: 1+ | |||
 | Galco | 70S2-01-A-05-N-MGCR | 47.49 | 218.454 | 10 | In Stock | Schneider | 0.0022 | 47.49 @ Qty: 10+ | |
| Future Electronics | 4060579 | 62.856 | 540.5616 | 20 | In Stock | Schneider Electric | 62.856 @ Qty: 20+ |
