mpn:
brand:
manufacturer:
MPN:
Description:

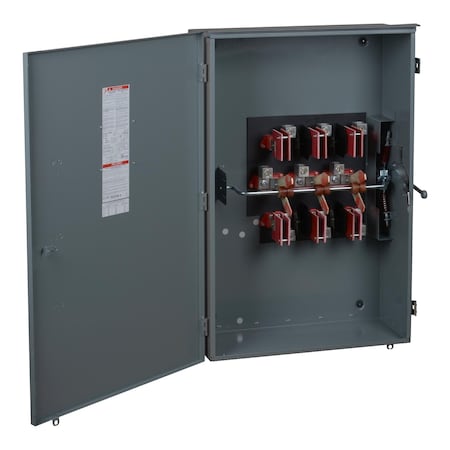

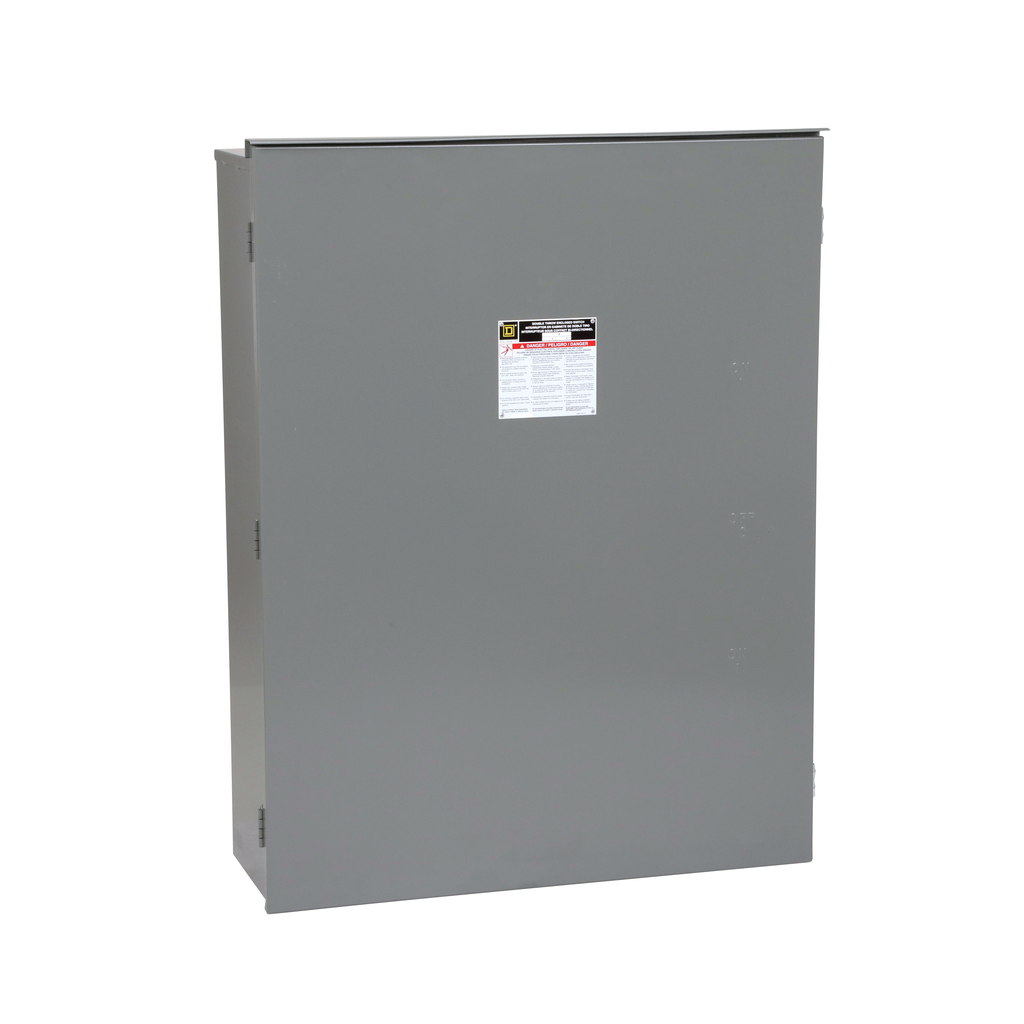

200A DT 600V 4P NOT-FUSIBLE T-3R ENCD SW
Weight:
105.0
Weight:
105.0 LB
Preferred Price:
9636.11
Price:
9636.11
Min Simple Price:
5447.21
Absolute Min Price:
7729.59
Min Price:
7729.59
Dimensions:
[10.0, 10.0, 10.0]
qty:
21
simpleSku:
MTUyMQ:::82444R
sku:
MTUyMQ::YQ:82444R@y0
condition:
11
seller:
mayerelectric.com
amzMan:
schneider electric
HazMat:
False
DropShip:
True
Attributes
| Key | Value |
|---|---|
| [Ue] Rated Operational Voltage | 600 V AC || 600 V DC |
| Amperage Rating | 200A |
| Amperage Rating, Short Circuit Current Rating (kA) | 200 |
| Amps AC, Line Rated Current, Maximum Current | 200 A |
| Application | DOUBLE THORW SAFETY SWITCH USED FOR MANUAL TRANSFER OF ONE LOAD BETWEEN TWO POWER SOURCES |
| Awg Gauge, Connection | AWG 6...300 kcmil copper or aluminium |
| Brand | Square D |
| California Proposition 65 : WARNING: This product can expose you to chemicals including | Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Catalog Number | 82444R |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Contact Configuration, Number of Poles, Number Of Poles | 4 |
| Contact Form | 4PDT, 4NO |
| Contact Rating | N |
| Country of Origin | United States, US - United States |
| Country of Origin (subject to change) | Mexico |
| Depth | 10.63 in |
| Device Composition | none |
| Device Mounting, Mounting, Mounting type | surface |
| Dimensions | 38 in H x 33.02 in W x 10.63 in D |
| Disconnector Device Type | non-fusible disconnect |
| Duty | Heavy |
| ECCN | EAR99 |
| Enclosure, Enclosure Type, Nema Degree Of Protection | NEMA 3R |
| Environmental Conditions | RAINPROOF AND SLEET/ICE PROOF (INDOOR/OUTDOOR) |
| Environmental Disclosure | ENVPEP1307076EN |
| Eu Rohs Directive | Compliant |
| Finish | Galvannealed |
| Fuse Type | H or J |
| GTIN | 00785901501701 |
| Height | 38 in |
| Item Type | Non-fusible disconnect;Double Throw Safety Switch |
| Item, Product Or Component Type | Double Throw Safety Switch |
| Made in USA, Mercury Free, Reach Free Of Svhc, Rohs Exemption Information, Toxic Heavy Metal Free | Yes |
| Manufacturer | Schneider Electric |
| Material | Steel |
| NEMA Enclosure Type, Wattage | 3R |
| Net Weight | 47.6 kg |
| Number of Wires | 1 |
| Phase | 2/3 |
| Product Certifications | UL Listed |
| Protection Method | Nonfusible |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Series | 824 Series, E3 |
| Series Name, Sub Brand | general duty |
| Short-Circuit Current | 10 kA H or J |
| Size | 10.63 |
| Special Features | DOUBLE THROW |
| Sustainable Offer Status | Green Premium product |
| Tightening Torque | 340-340 lbf.in (AWG 6...300 kcmil) |
| Type | Double Throw General Purpose Non-Fusible |
| UNSPSC | 39122205 |
| UPC, UPC Code | 785901501701 |
| Voltage | 600V AC/DC |
| Voltage Rating | 600 VAC, 250 VDC, 600 V, 600 V AC;600 V DC |
| Warranty | 18 months |
| Warranty Description | Contractual Warranty:18 months |
| Width | 33.02 in |
All Prices
| Img | Seller | Supplier SKU | Requested Price | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | mayerelectric.com | SQD82444R | 5447.21 | 5447.21 | 1 | In Stock | SQUARE D | 104.72 | 5447.21 @ Qty: 1+ | |
 | standardelectricsupply.com | 2267565 | 5853.6 | 5853.6 | 1 | In Stock | Square D (Schneider Electric) | 5853.6 @ Qty: 1+ | ||
| us.rs-online.com | 70060875 | 7599.22 | 7599.22 | 1 | In Stock | Square D | 7599.22 @ Qty: 1+ | |||
 | Zoro | G700428194 | 7752.77 | 7752.77 | 1 | In Stock | 60 | Square D | 10.0 | 7752.77 @ Qty: 1+ |
 | United Electric | 742782 | 8048.7 | 8048.7 | 1 | In Stock | SQUARE D | 8048.7 @ Qty: 1+ | ||
| Graybar | 25144437 | 8113.7504 | 8113.7504 | 1 | In Stock | Square D (Schneider Electric) | 8113.7504 @ Qty: 1+ | |||
 | crescentelectric.com | 144078 | 9536.04 | 9536.04 | 1 | In Stock | Square D | 9536.04 @ Qty: 1+ |
