Square D 8736SFO3V02H30S

B007IB1XKK

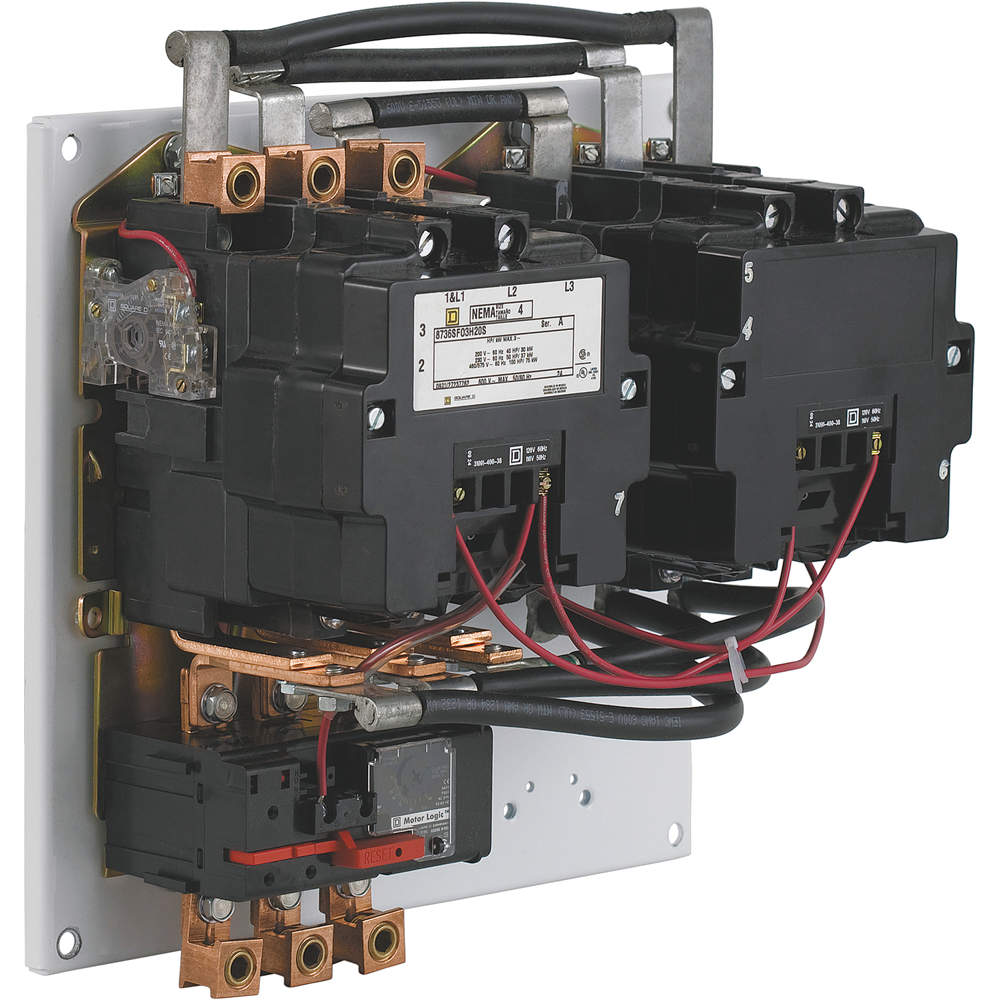

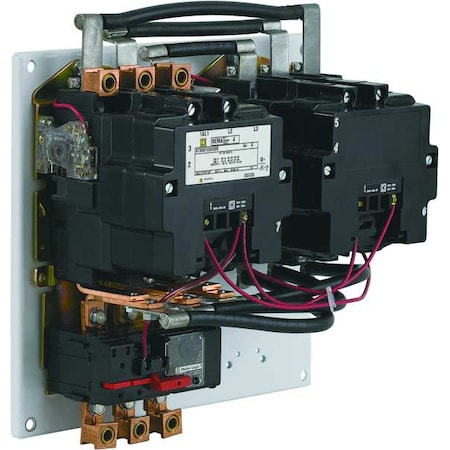

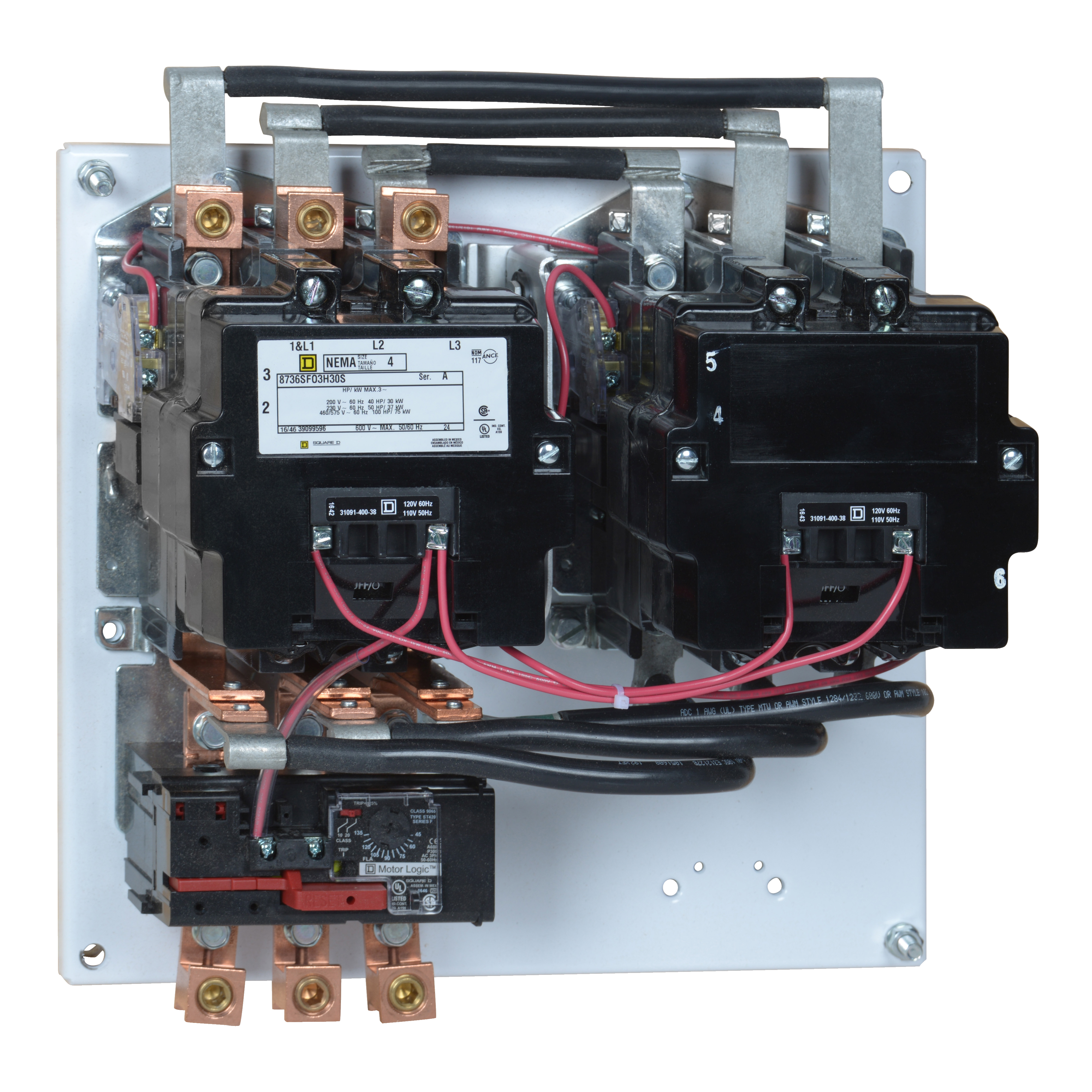

H5197 NEMA Magnetic Motor Starter

H5197 NEMA Magnetic Motor Starterzoom

Attributes

Key Value
[Uc] Control Circuit Vo.110 V AC 50 Hz || 120 V.
[Ue] Rated Operational .600 V AC
ActionReversing
Amperage Rating135
Amps AC135
Auxiliary Contact Compo.without
Auxiliary Contact Form1NO
BrandSquare D
California Proposition .Lead and lead compounds.
Catalog Number8736SFO3V02H30S
China Rohs RegulationProduct out of China Ro.
Coil Voltage110 V AC 50 Hz;120 V AC.
Coil Volts120V AC
ComponentNEMA Starter
Connectionscrew clamp terminals
Connection typeScrew Clamp
Control Circuitseparate control circuit
Control Unitsno control units
Country of OriginMexico
Country of Origin (subj.Mexico
Depth7 in, 177.80 mm
Dimensions14.61 in H x 14.25 in W.
Electrical Connectionscrew clamp terminals
Enclosure NEMA RatingNo Enclosure
Enclosure TypeNEMA 4
Eu Rohs DirectiveNot compliant
FeaturesClass 20 Solid State Am.
Frequency Rating50/60
GTIN00785901476412
Height11.69 in, 370.59 mm
HP @ 3 Phase - 208V40 hp
HP @ 3 Phase - 240V50 hp
HP @ 3 Phase - 480V100 hp
HP @ 3 Phase - 575V100 hp
Hz50/60
IncludesClass 20 Solid State Am.
Installation Directionhorizontal
ItemNEMA Magnetic Motor Sta.
Item Typestarter
Line Rated Current135 A
Local Signallingwithout pilot light
Made in USANo
ManufacturerSchneider Electric
Motor Power40 hp, 50 hp, 100 hp
Motor Starter TypeReversing
Nema Degree Of Protecti.not rated (open device)
Nema Size4
NEMA Size4
Number of Poles3
Overload RelaySolid State
Overload Relay Amp Sett.45 to 135A
Phase3, 3 phase
Poles Description3P
Product CertificationsUL Listed || CSA
Product Or Component Ty.starter
Product TypeNEMA Magnetic Motor Sta.
Range Of ProductS
Rated Power In Hp40 HP 200 V AC || 50 HP.
Reset Typesolid state Motor Logic.
Size178 MM,362 MM,371 MM
Special Featuresscrew clamp terminals
StandardUL LISTED-CSA-NEMA
StandardsCSA, UL
Starter Amperage135 Amp
Starter Coil Voltage120 VAC, 110 VAC
Starter Enclosure TypeOpen
Starter HP100 HP @ 575 VAC, 50 HP.
Starter Nema Size4
Starter Overload TypeElectonic Overload
Starter PolesThree Pole
Starter TypeNEMA Style
Starter Voltage3 phase
Sub BrandS
Sub ComponentReversing Starter
Thermal Overload Typesolid state Motor Logic.
TypeType S Reversing
UPC785901476412
Voltage Rating600 V AC, 600
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Width14.25 in, 361.95 mm
Wiring Mode3 wires

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Grainger2MMG76638.01In Stock19SQUARE D6638.0 @ 1
thumbzoomZoroG63556328082.671In Stock26Square D54.08082.67 @ 1
thumbzoomsustainablesupply.comC28167788698.081In StockSquare D54.08698.08 @ 1
thumbzoomstandardelectricsupply.com23243638802.251In StockSquare D (Schneider Electric)8802.25 @ 1
AmazonTPB007IB1XKK9549.731In Stock30SQUARE D9549.73 @ 1
thumbzoommayerelectric.comSQD8736SFO3V02H30S9993.941In StockSQUARE D9993.94 @ 1
rspsupply.comSCHNEIDER 8736SFO3V02H30S10643.951In StockSchneider Electric10643.95 @ 1
thumbzoomcrescentelectric.com48323710778.271In StockSquare D10778.27 @ 1
thumbzoomRaptor SuppliesAF9HWZ13425.21724051In StockSQUARE D13425.2172405 @ 1
