Eaton Cutler-Hammer C25DNJ350A

B00WN4TOU8

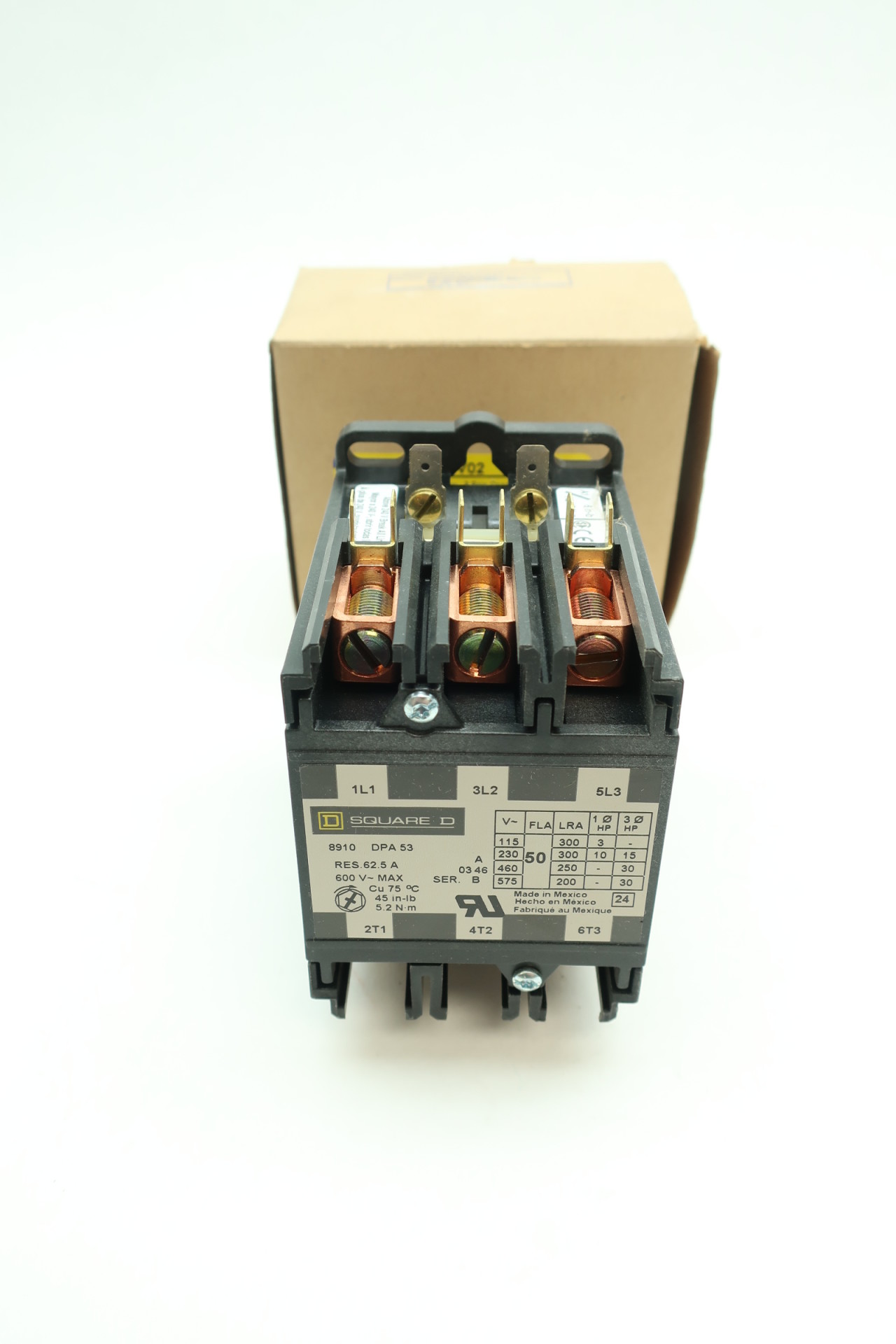

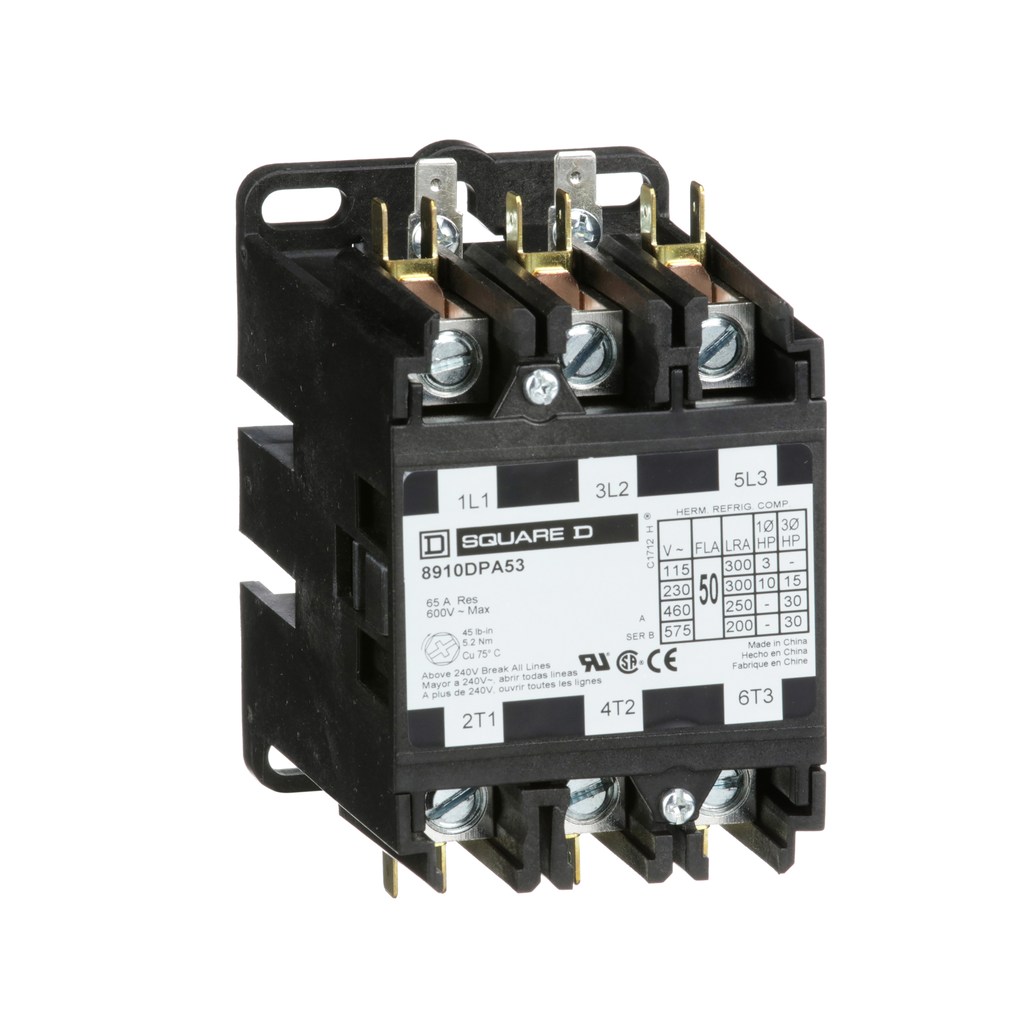

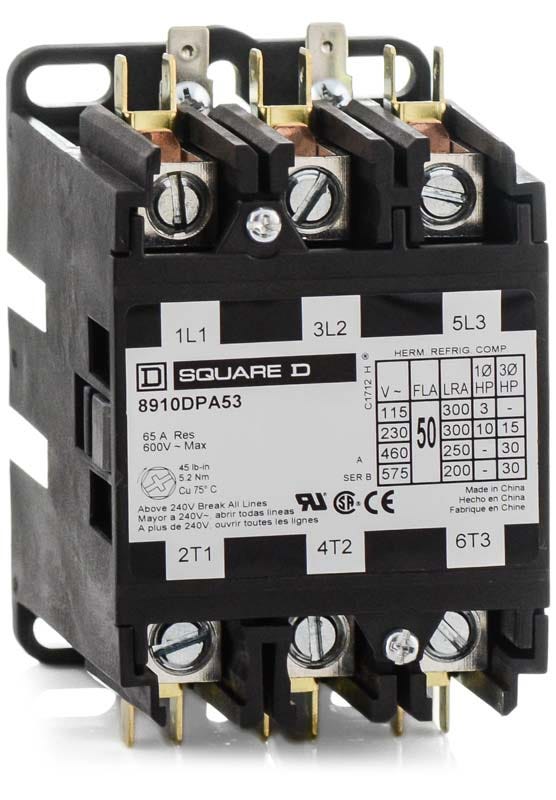

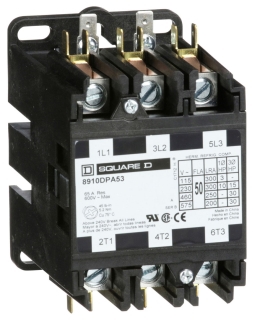

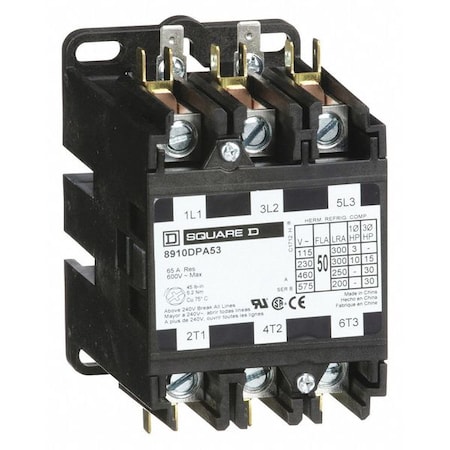

Replacement for Square D 8910DPA53V02 - Replaced by Eaton/Cutler Hammer C25DNJ350A 50mm DP Contactor, 3-Pole, 50 Amp, 120 VAC Coil Voltage

Replacement for Square D 8910DPA53V02 - Replaced by Eaton/Cutler Hammer C25DNJ350A 50mm DP Contactor, 3-Pole, 50 Amp, 120 VAC Coil Voltagezoom

Attributes

Key Value
[Uc] Control Circuit Vo.120 V AC 60 Hz || 110 V.
[Ue] Rated Operational .600 V AC
ActionNon-Reversing
Amperage50A
Amperage Rating50A
ApplicationIDEAL FOR HEATING, AIR .
ApprovalsCSA, UL
Batteries Included?No
Batteries Required?No
Best Sellers Rank#265,116 in Industrial .
BrandSquare D, Square D by S.
Catalog Number8910DPA53V02
CertificationCSA, CE, UL, NEMA
China Rohs RegulationProduct out of China Ro.
Coil TypeMagnetic
Coil Voltage120 V AC 60 Hz;110 V AC.
Coil Volts120V AC
ColorBlack
ConditionNew
ConnectionBox lugs;quick connect .
Contact Configuration3 NO
Contact Current Rating50 A
Contact Form3PST-NO
Contact Rating50 A
Contactor TypeDefinite Purpose
Control Voltage120 V
Country of OriginCN - China, China
Customer Reviews5.0 out of 5 stars2 rat.
Date First AvailableMay 7, 2013
Depth0.157 in, 3.67 in, 3.67.
Dimensions60.2 x 76 x 82.5 mm
DIN MountingYes
ECCNEAR99
Electrical Connectionbox lugs || quick conne.
Enclosure NEMA RatingNo Enclosure
Estimated Lead Time (in.11
Eu Rohs DirectiveCompliant
Family SeriesSquare D Contactors
For Use WithDP and DPA Series
Frame SizeNot Applicable
Full Load Amps-Inductive50 A
Full Load Amps-Resistive65 A
Gross Weight1.495 lbs
GTIN785901080756
Gtin785901080756
Height4.13 in || 105 mm, 4.06.
Horsepower Rating5 HP
HP @ 1 Phase - 120V3 hp
HP @ 1 Phase - 230V10
HP @ 1 Phase - 240V10 hp
HP @ 3 Phase - 230V15
HP @ 3 Phase - 240V15 hp
HP @ 3 Phase - 480V30 hp
HP @ 3 Phase - 575V30 hp
Hz50/60
Included Components8910DPA53V02
IncludesQuick Connect Terminal
Inductive Current Rating50 A
ItemDefinite Purpose Magnet.
Item model number8910DPA53V02
Item Number8910DPA53V02
Item Package Quantity1
Item TypeDefinite Purpose Contac.
Item Weight1.44 pounds
Length2.37 in
Line Rated Current50 A
Locked Rotor 240/277V300 A
Locked Rotor 480V250 A
Locked Rotor 600V200 A
Locked Rotor Rated Curr.300 A 277 V AC || 250 A.
Made in USANo
ManufacturerSquare D, SCHNEIDER ELE.
Manufacturer Part Number155222
MaterialHAWA
Max HP 120V 1PH3 hp
Max HP 230/240V 1PH10 hp
Max HP 230/240V 3PH15 hp
Max HP 460/480V 3PH30 hp
Max HP 575/600V 3PH30 hp
Maximum Horse Power Rat.3-3 hp 115 V AC, 1 phas.
Maximum Operating Tempe.65 C
Mercury FreeYes
Minimum Operating Tempe.0 C
MountingPanel Mount
Mounting Hole Diameter0.2 in
Mounting Hole Distance .3.25 in
Mounting Hole Distance .2.11 in
Mounting TypePanel Mount, Panel
Mpn8910DPA53V02
Net Weight.68 kg || 1.5 lb(US), 1.
Nominal Coil Voltage120 VAC
Number Of Pieces1
Number of Poles3
Overall Depth3.67 in
Overall Height4.13 in
Overall Width2.56 in
Part Number8910DPA53V02
Phase3, 3 phase
Pole Contact Composition3 NO
Poles3, 3 NO
Poles Description3P
Product CertificationsUL Recognized || CSA
Product Dimensions4.3 x 3.8 x 2.7 inches
Product Or Component Ty.Definite Purpose Contac.
Product with faster shi.true
Range Of ProductDPA
Reach RegulationReference contains Subs.
ReversingNo
Rohs Exemption Informat.Yes
Series8910DP Series, DPA, Sta.
Shippingundefined (Fixed Shippi.
Size3.67
Special Features3-3 HP 115 V AC, 1 PHAS.
StandardUL RECOGNIZED-CSA
StandardsCE, CSA, UL, UL Recogni.
Sub BrandDPA
Temperature Operating R.0 to 65 C
Terminal TypeQuick Connect
TerminationBox Lug, Quick Connect,.
TypeContactor
UNSPSC39121529
Upc785901080756
UPC785901080756
UPC Code785901080756
Voltage120V
Voltage Rating600 V
Warranty18 months
Warranty Description1 year manufacturer, Co.
Weight2.000000
Width2.56 in, 0 in, 2.56 in .

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomNRI IndustrialD64525375.71In StockSQUARE D75.7 @ 1
thumbzoomTask SurplusA3029-2C6180.01In StockSQUARE D80.0 @ 1
AmazonB00CONJRVO81.321In Stock42SCHNEIDER ELECTRIC81.32 @ 1
AmazonTPB005T8J1JY91.01In Stock1Square D91.0 @ 1
simplybreakers.com8910DPA53V02129.991In StockSchneider129.99 @ 1
thumbzoomAllfuses8910DPA53V02144.14164Square D144.14 @ 1
thumbzoomZoroG2469494165.991499Square D1.6165.99 @ 1
thumbzoomsuperbreakers.com8910DPA53V02172.2120Square D172.2 @ 1
thumbzoomblackhawksupply.com8910DPA53V02184.951In StockSquare D184.95 @ 1
thumbzoomindustrialrefrigerationparts.com8910DPA53V02196.791In StockSquare D2.0196.79 @ 1
hvacdiscountstore.comSCH--8910DPA53V02203.9711SCHNEIDER ELECTRIC (SQUARE D)203.97 @ 1
thumbzoomNational Supply Network69524262211.381In StockSquare D211.38 @ 1
thumbzoomRaptor SuppliesAG7CFG211.68195751In StockSQUARE D211.6819575 @ 1
Graybar90059585216.820815Square D (Schneider Electric)216.8208 @ 1
thumbzoomgordonelectricsupply.com8910DPA53V02220.01In StockSQUARE D220.0 @ 1
thumbzoommidwestapplianceparts.com8910DPA53V02-SQ-P225.671In StockSquared225.67 @ 1
thumbzoomgsistore.com8910DPA53V02229.5615Schneider Electric229.56 @ 1
thumbzoomhomeessentialsdirect.com8910DPA53V02229.81In StockSCHNEIDER ELECTRIC1.44229.8 @ 1
standardelectricsupply.com2209099230.111In StockSquare D230.11 @ 1
thumbzoomGalco8910DPA53V02-SQD234.231In StockSquare D1.495234.23 @ 1
thumbzoommayerelectric.comSQD8910DPA53V02237.311SQUARE D0.68237.3 @ 1
grainger.caSQD8910DPA53V02244.611138121In StockSQUARE D1.6244.61113812 @ 1
thumbzoomVoomi Supply8910DPA53V02245.121In StockSchneider Electric245.12 @ 1
thumbzoomwilliamsautomation.com8910-DPA53V02250.015SQUARE D250.0 @ 1
us.rs-online.com70060225257.89116Square D257.89 @ 1
steinerelectric.com32011273.041In StockSquare D?273.04 @ 1
thumbzoomptacsolutions.com8910DPA53V02276.2515Schneider Electric (Square D)276.25 @ 1
thumbzoomcrescentelectric.com135382281.4614Square D by Schneider Electric281.46 @ 1
thumbzoomNewark50F4317303.1218SQUARE D BY SCHNEIDER ELECTRIC303.12 @ 1
