Square D/Telemecanique ARALL-70060416

B00DEEBCZQ

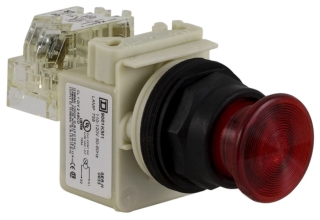

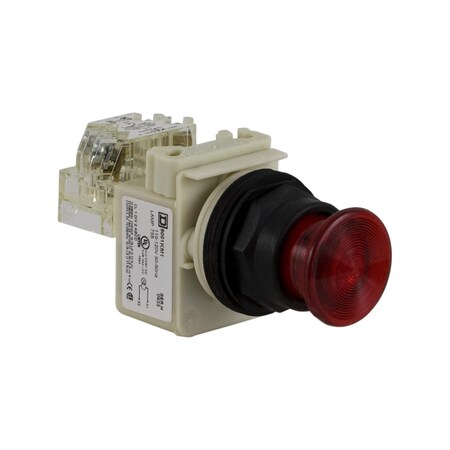

Square D 9001Sk2L1R20H13 Ill Red Pb Oper

Square D 9001Sk2L1R20H13 Ill Red Pb Operzoom

Attributes

Key Value
[Icm] Rated Short-Circu.0.1 kA 240 V DC-13, 720.
[Ie] Rated Operational .3 A 240 V, AC-15, A600-.
[Ith] Conventional Free.10 A
[Ui] Rated Insulation V.250 V 3)EN/IEC 60947-1
[Uimp] Rated Impulse Wi.2.5 kV EN/IEC 60947-1
[Us] Rated Supply Volta.110...120 V AC 50/60 Hz.
Actionstandard
Actuatorspring return;Red mushr.
Actuator Colorred
Actuator TypeMushroom 30 mm Push-Pull
Ambient Air Temperature.-25-70?C, -25-70 ?C
Ambient Air Temperature.-40-70 ?C, -40-70?C
Bezelplastic
Bezel Materialplastic
Body Stylestandard
BrandSquare D by Schneider E.
Bulb BaseBA 9s
California Proposition .Lead and lead compounds.
Cap/Operator Or Lens Co.red
Catalog Number9001SK2L1R20H13
China Rohs RegulationX
Connectionscrew clamp terminals 1.
Connections - Terminalsscrew clamp terminals 1.
Contact Configuration1 C/O
Contact Form1 NC + 1 NO
Contact Operationstandard
Contact RatingAC15 - DC13
ContactsSilver Alloy
Contacts Materialsilver alloy contacts
Contacts Type And Compo.1 C/O
Country of OriginMexico
Current Rating10 A
Device Presentationcomplete product
Device Short Name9001SK
Electrical Shock Protec.class II IEC 61140
EnclosureNEMA 1-NEMA 12-NEMA 13-.
Environmental ConditionsWATER TIGHT, DUST TIGHT.
Environmental DisclosureENVPEP121005EN
Eu Rohs DirectivePro-active compliance (.
IndicatorBA 9s
Insulation250 V 3)EN/IEC 60947-1
Ip Degree Of ProtectionIP66 IEC 60529
ItemPUSHBUTTON 600VAC 10AMP.
Item Typeilluminated push-button
Light Block Supplyvia integral transformer
Light Sourceincandescent
Made in USANo
ManufacturerSchneider Electric
Materialplastic
Mechanical Durability5000000 cycles
Mercury FreeYes
Module TypeTransformer
MountingPanel Mount
Mounting Diameter30 mm
Mounting Hole Size30 mm
Mounting TypePanel Mount
Nema Degree Of Protecti.NEMA 1 || NEMA 12 || NE.
Net Weight0.181 kg
Operating Positionany position
Operating Temperature-25-70 A Degrees C
OperationMomentary
Operator Additional Inf.screw-on plastic
Operator Profilered mushroom ? 35 mm, m.
Product CertificationsNEMA || UL 508
Product Or Component Ty.illuminated push-button
Protective TreatmentTC
Range Of ProductHarmony 9001SK
Rated Breaking Capacity1.2 kA 600 V AC-15, 720.
Reach Free Of SvhcYes
Reach RegulationFree of Substances of V.
Rohs Exemption Informat.Yes
Series9001SK Series
Shape Of Screw Headcross slotted
Shock Resistance50 gn IEC 60068-2-27
Short-Circuit Protection10 A cartridge fuse EN/.
Size1.18
Special FeaturesWITHOUT GUARD
Standard50 GN IEC 60068-2-27,7 .
StandardsEN/IEC 60947-5-1 || JIS.
Sub Brand9001SK
Supply Voltage110/120 VAC
Sustainable Offer StatusGreen Premium product
Tightening Torque0.8-0.8 N.m EN/IEC 6094.
Toxic Heavy Metal FreeYes
TypePush Button
Type Of Operatorspring return
UPC785901040941
UPC Code785901040941
Vibration Resistance7 gn 2-500 Hz)IEC 60068.
Voltage Rating110...120 V;110...120 V.
Warranty18 months
Warranty DescriptionContractual Warranty:18.
WeeeThe product must be dis.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG3298422161.991In StockSquare D10.0161.99 @ 1
thumbzoomgordonelectricsupply.com9001SK2L1R20H13201.01In Stock10SQUARE D201.0 @ 1
thumbzoommostelectric.com9001SK2L1R20H13215.78118SQUARE D/TELEMECANIQUE215.78 @ 1
thumbzoommayerelectric.comSQD9001SK2L1R20H13233.021In StockSQUARE D0.3982233.02 @ 1
steinerelectric.com300006251.451In StockSquare D?251.45 @ 1
standardelectricsupply.com2388325340.441In StockSquare D340.44 @ 1
us.rs-online.com70060416349.951In StockSquare D349.95 @ 1
Newark17B684360.081In StockSQUARE D BY SCHNEIDER ELECTRIC360.08 @ 1
thumbzoomcrescentelectric.com180443562.41In StockSquare D by Schneider Electric562.4 @ 1
