mpn:
brand:
manufacturer:
MPN:
Weight:
0.396
Weight:
0.396 LB
Preferred Price:
184.06
Price:
184.06
Min Simple Price:
103.99
Absolute Min Price:
147.66
Min Price:
147.66
Dimensions:
[3.0, 3.0, 2.0]
qty:
21
simpleSku:
NDQ4OA:::9007H
sku:
NDQ4OA::NM:9007H@y0
condition:
11
seller:
Zoro
amzMan:
schneider electric
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| Accessory Type, Detailed Description | Operating Head |
| Actuator Length | 0.5 in |
| Actuator Location | Side |
| Actuator Style | Push Rod Plunger |
| Ambient Air Temperature For Operation, Ambient Air Temperature For Storage | 0-185 ?F |
| Amps, Contact Form, Voltage Rating | Not Applicable |
| Associated Body, Associated Lever, Device Short Name, Product Compatibility | 9007C |
| California Proposition 65 : WARNING: This product can expose you to chemicals including | Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Category | Switches |

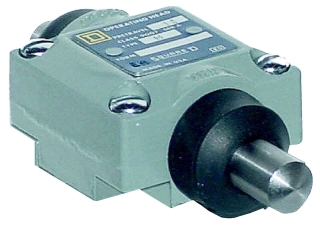

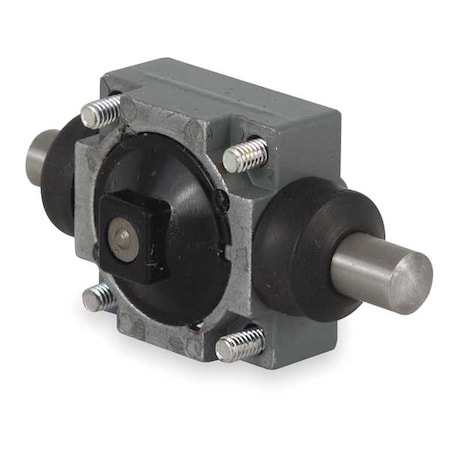

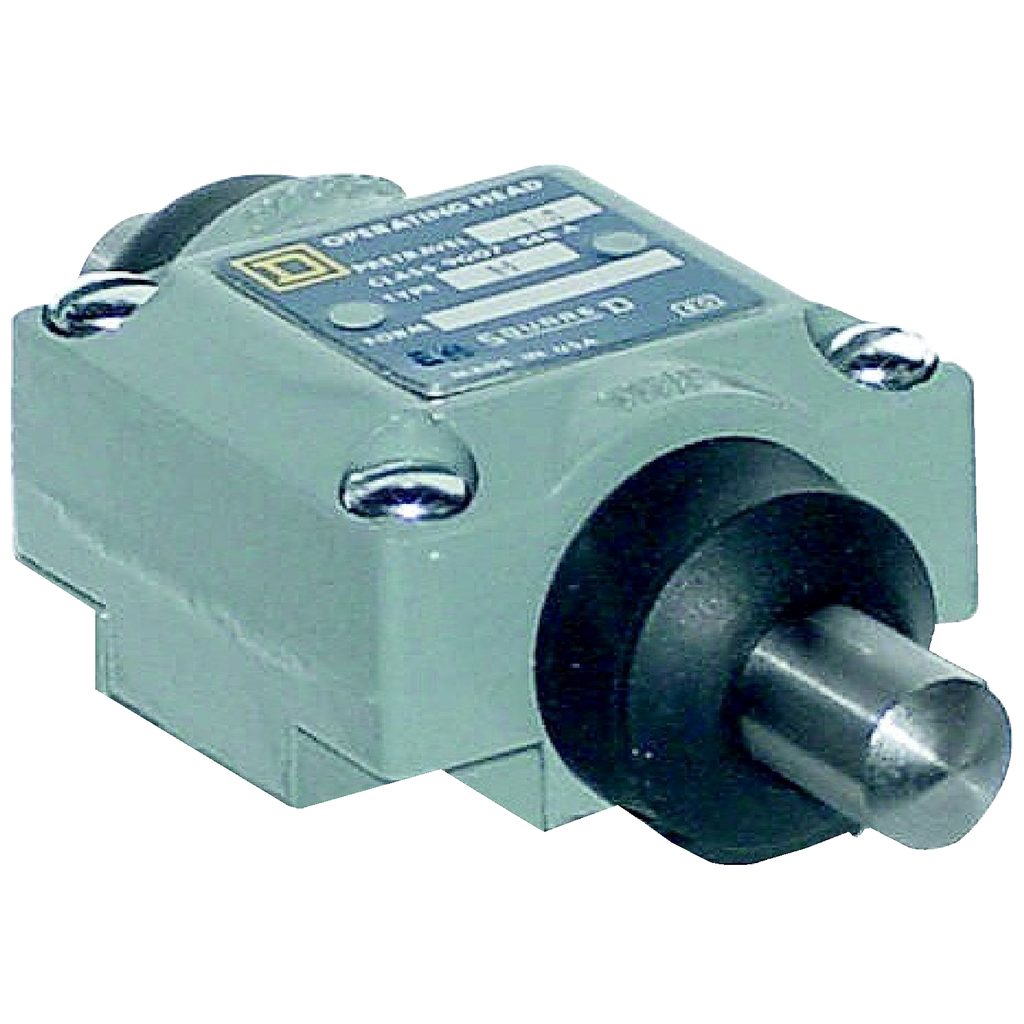

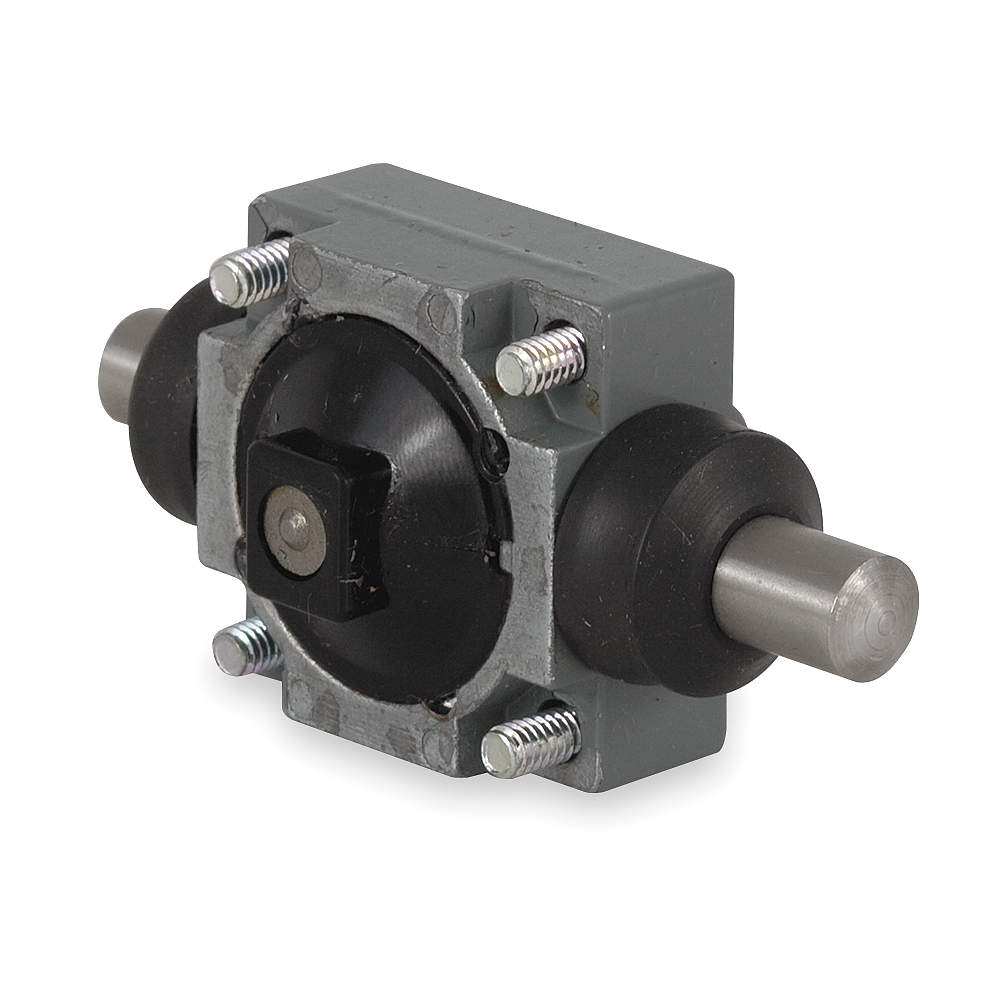

| Description | LIMIT SWITCH HEAD, 9007, C |
| Description/Special Features | Adjustable Spring Return, Maintained |
| Digi-Key Part Number | 4008-9007H-ND |
| Environmental Characteristic | standard environment |
| Environmental Disclosure | ENVPEP111160EN |
| Eu Rohs Directive | Not applicable, out of EU RoHS legal scope |
| For Use With | 9007 Type C |
| For Use With/Related Products | 9007C Series |
| Head Type | plunger head |
| IP Rating | Not Rated |
| Item, Product Or Component Type, Product Type | Limit Switch Head |
| Manufacturer Product Number | 9007H |
| Manufacturer Standard Lead Time | 1 Weeks |
| Manufacturer, Mfr | Schneider Electric |
| Movement | CW and CCW |
| Movement Of Operating Head | linear |
| NEMA Rating | 13, 4, 6P |
| Net Weight | 0.4 lb(US) |
| Operating Force | 7.0 in-lb |
| Operating Temp. | 0 Degrees to 185 Degrees F |
| Package | Box |
| Positive Opening | without |
| Product Status | Active |
| Range Of Product | 9007 |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Series | - |
| Series Name | heavy duty |
| Standards | CE, CSA, UL |
| Switch Actuation | on end |
| Travel | 0.25 in |
| Type Of Approach | lateral approach, 1 direction |
| Type Of Operator | stay put side plunger stainless steel - |
| Warranty | 18 months |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | Zoro | G3343322 | 103.99 | 103.99 | 1 | In Stock | Square D | 0.35 | 103.99 @ Qty: 1+ | |
 | gordonelectricsupply.com | 9007H | 123.59 | 123.59 | 1 | In Stock | 10 | SQUARE D | 123.59 @ Qty: 1+ | |
 | mostelectric.com | 9007H | 145.31 | 145.31 | 1 | 1 | SQUARE D/TELEMECANIQUE | 145.31 @ Qty: 1+ | ||
 | mayerelectric.com | SQD9007H | 161.01 | 161.01 | 1 | In Stock | SQUARE D | 0.4 | 161.01 @ Qty: 1+ | |
| grainger.ca | SQD9007H | 172.31360246 | 172.31360246 | 1 | In Stock | SQUARE D | 0.35 | 172.31360246 @ Qty: 1+ | ||
 | sustainablesupply.com | C1183717 | 179.19 | 179.19 | 1 | In Stock | Square D | 0.35 | 179.19 @ Qty: 1+ | |
 | Digi-Key | 16567656 | 212.91 | 212.91 | 1 | In Stock | Schneider Electric | 212.91 @ Qty: 1+ | ||
 | Raptor Supplies | AF9JXM | 259.426323 | 259.426323 | 1 | In Stock | SQUARE D | 259.426323 @ Qty: 1+ |
