Square D 9013FHG22J27X

B00G5LYQ8K

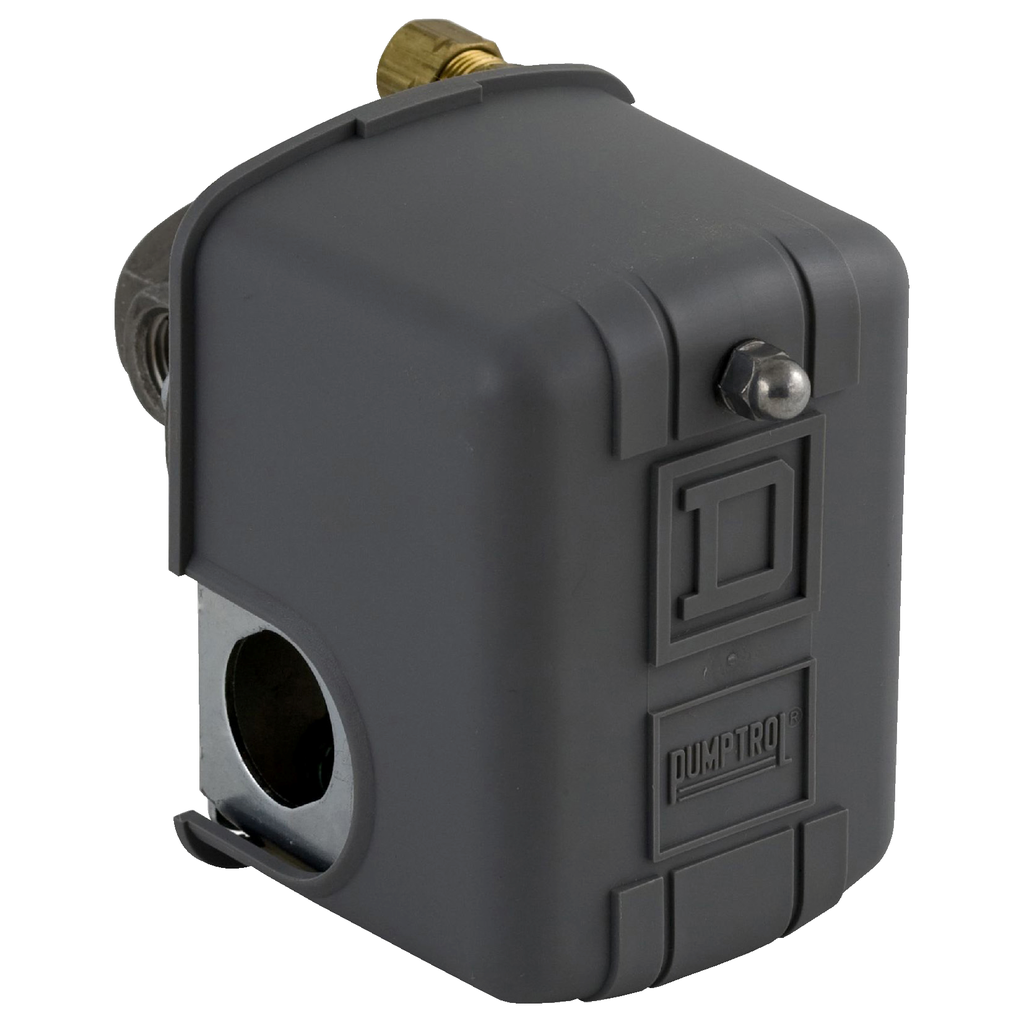

Pressure Switch, DPST, 80x2f;100psi, 1x2f;4" FNPS 9013FHG22J27X

Pressure Switch, DPST, 80x2f;100psi, 1x2f;4" FNPS 9013FHG22J27Xzoom

Attributes

Key Value
[Ui] Rated Insulation V.575 V UL 508
AC Contact Rating10A @ 575V, 10 A @ 575V
Adjustable Range On Ris.40-100 psi
Ambient Air Temperature.-33-257 ?F
Ambient Air Temperature.-33-257 ?F
Approximate Fixed Diffe.20 psi
ASINB000LDBVRW
Batteries Required?No
Best Sellers RankSee Top 100 in Industri.
BrandSquare D by Schneider E.
Burst Pressure220 psi
Cable Entry Number2 0.88 in cable entries.
California Proposition .Diisononyl phthalate (D.
Circularity ProfileENVEOLI111210EN
ConditionNew
Contacts Type And Compo.2 NC, snap action, DPST.
Controlled Fluidair -22-257 ?F)
Date First AvailableAugust 12, 2015
Depth3.76 in
Destruction Pressure220 psi
DifferentialFixed Differential Scale
Electrical Circuit Typepower circuit
Electrical ConnectionScrew-Clamp Terminals, .
Electrical Durability100000 cycles 10 cyc/mn
Environmental DisclosureENVPEP111211EN
Estimated Lead Time (in.6
Eu Rohs DirectiveNot applicable, out of .
Factory Modification2-way pressure release .
Fluid Connection Type0.25 inch NPSF internal.
GTIN785901744788
Height3.71 in
HP @ 1 Phase - 120V2 hp
HP @ 1 Phase - 240V3 hp
HP @ 3 Phase - 240V5 hp
HP @ 3 Phase - 480V1 hp
Ip Degree Of ProtectionIP20 conforming to IEC .
IP RatingIP20 (IEC 60529)
ItemPressure Switch
Item model number9013FHG22J27X
Item Package Quantity1
Local Displaywithout
Manual Switch ActionNone
ManufacturerSquare D, Schneider Ele.
Materialpolypropylene Cover || .
Materials In Contact Wi.zinc plated steel or eq.
Maximum Operating Rate10 cyc/mn
Mechanical Durability300000 cycles
Motor Power Kw1.5 kW 2 hp)115 V AC, 1.
Nema Degree Of Protecti.NEMA 1 UL 50
NEMA Rating1
Net Weight1 lb(US)
Operating Positionany position
Package Dimensions4.02 x 4.02 x 2.99 inch.
Part Number9013FHG22J27X
Pressure Actuatordiaphragm
Pressure Sensor Name9013FH
Pressure Sensor Size100 psi
Pressure Sensor Typeelectromechanical press.
Pressure Switch ActionStandard
Pressure Switch Applica.Air Compressor and Wate.
Pressure Switch Differe.20 psi
Pressure Switch Electri.DPST
Pressure Switch Factory.80/100 psi
Pressure Switch Port Ty.(1) Port, 1/4 in FNPS
Pressure Switch Range20 to 100 psi
Pressure Switch Type Of.regulation between 2 th.
Pressure Switch Unloader1/4 in Compression
Product CertificationsCSA file LR25490 || UL .
Product Specific Applic.control small electrica.
Product with faster shi.true
Protective TreatmentNone
Quantity Per Set1
Range Of ProductSquare D Pumptrol
Repeat Accuracy+/- 3 %
Scale Typefixed differential
Series9013FHG
Settinginternal
Shippingundefined (Fixed Shippi.
Short-Circuit Protection20 A cartridge fuse gG
Special FeaturesNitrile (Buna-N) Diaphr.
StandardsANSI /NSF Standard 61, .
Temp. Range-22 Degrees to 257 Deg.
Terminal Block Type4 terminals
Terminals Description I.L1-T1 || L2-T2
Type Of Packingindividual
Value Of Settingoff at 100 psi
Warranty18 months
Weight2.000000
Width2.78 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonB000LDBVRW39.751In StockSquare D1.0239.75 @ 1
thumbzoomindustrialrefrigerationparts.com9013FHG22J27X40.321In StockSquare D2.040.32 @ 1
hvacdiscountstore.comSCH--9013FHG22J27X41.8613SCHNEIDER ELECTRIC (SQUARE D)41.86 @ 1
thumbzoomcappusa.com96503943.111In StockSquare D43.11 @ 1
thumbzoomZoroG200831643.551144Square D0.943.55 @ 1
Onlinecomponents.com9013FHG22J27X47.431In StockSquare D47.43 @ 1
thumbzoommidwestapplianceparts.com9013FHG22J27X-SQ-P51.8913Squared51.89 @ 1
thumbzoomsustainablesupply.comC117922952.271In StockSquare D0.952.27 @ 1
thumbzoomVoomi Supply9013FHG22J27X56.991In StockSchneider Electric (Square D)56.99 @ 1
thumbzoommayerelectric.comSQD9013FHG22J27X58.861In StockSQUARE D1.058.86 @ 1
thumbzoommostelectric.com9013FHG22J27X59.2912SQUARE D/TELEMECANIQUE59.29 @ 1
grainger.caSQD9013FHG22J27X80.16527271In StockSQUARE D0.980.1652727 @ 1
thumbzoomhomeessentialsdirect.com9013FHG22J27X108.371In StockSchneider Electric108.37 @ 1
thumbzoomRaptor SuppliesAH2NTT109.04218651In StockSQUARE D109.0421865 @ 1
