Square D by Schneider Electric 9013FRG22J19

B00CON7XT2

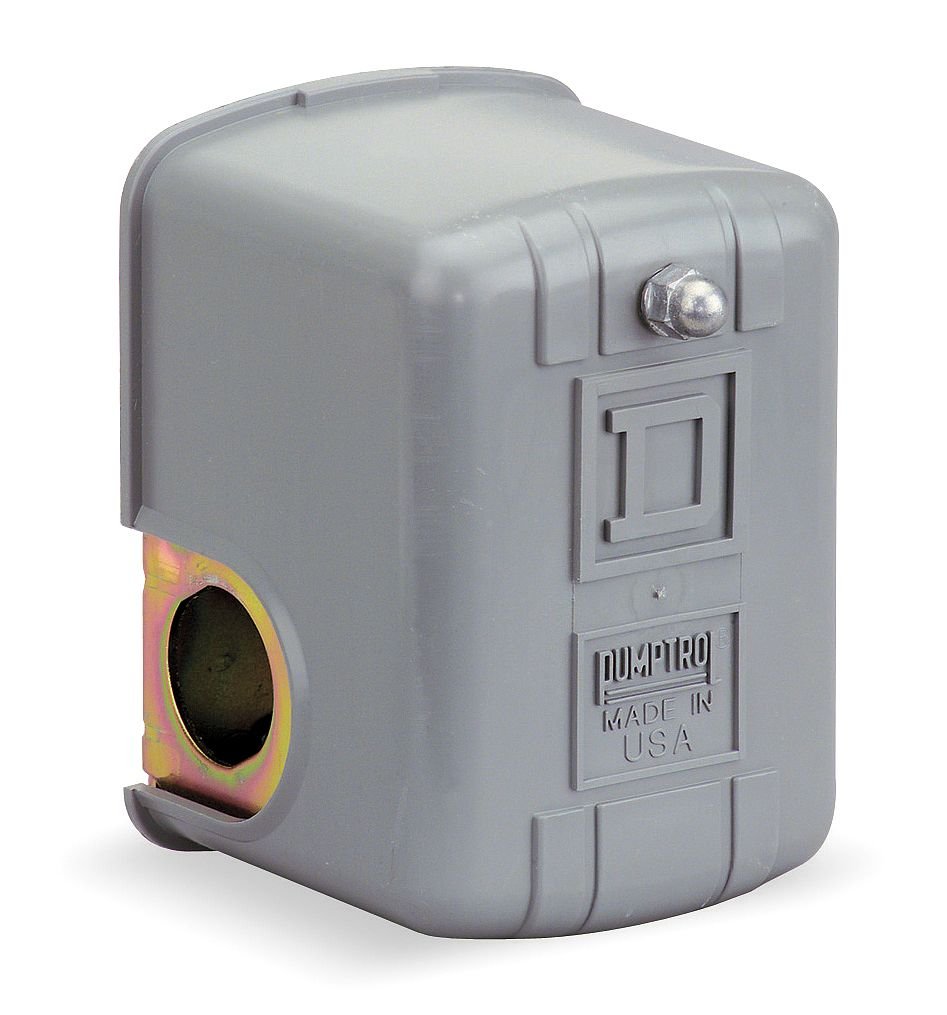

Square D by Schneider Electric 9013FRG22J19 Air-Pump Pressure Switch, NEMA 1, 22-16 psi Pressure Setting, 20-50 psi Cut-Out, 15-30 psi Reverse-Acting Adjustable Differential

Square D by Schneider Electric 9013FRG22J19 Air-Pump Pressure Switch, NEMA 1, 22-16 psi Pressure Setting, 20-50 psi Cut-Out, 15-30 psi Reverse-Acting Adjustable Differentialzoom

Attributes

Key Value
[Ui] Rated Insulation V.575 V UL 508
AC Contact Rating10A @ 230V, 10 A @ 230V
Actuation TypeDiaphragm
Adjustable Range On Ris.4-25 psi
Ambient Air Temperature.-33-257 ?F
Ambient Air Temperature.-33-257 ?F
ApplicationControl electrically dr.
Approximate Adjustable .6-20 psi
BrandSquare D, Square D by S.
Burst Pressure220 psi
Cable Entry Number2 0.88 in cable entries.
California Proposition .Diisononyl phthalate (D.
Catalog Number9013FRG22J19
Circularity ProfileENVEOLI111210EN
ColorGrey
ConditionNew
Contact Configuration2 NO, snap action, DPST.
Contacts Type And Compo.2 NO, snap action, DPST.
Controlled Fluidfresh water -22-120 ?F)
Country of OriginMexico
Current Stock3
Depth3.76 in
Destruction Pressure220 psi
DifferentialAdjustable Differential.
Electrical Circuit Typepower circuit
Electrical ConnectionScrew-Clamp Terminals, .
Electrical Durability100000 cycles 10 cyc/mn
EnclosureNEMA 1 UL 50
Environmental ConditionsGENERAL PURPOSE (INDOOR)
Environmental DisclosureENVPEP111211EN
Estimated Lead Time (in.6
Eu Rohs DirectivePro-active compliance (.
Fluid Connection Type0.25 inch NPSF internal.
GTIN785901000853
Height3.71 in
HP @ 1 Phase - 120V1, 1 hp
HP @ 1 Phase - 230V1
HP @ 1 Phase - 240V1, 1 hp
HP @ 3 Phase - 240V1, 1 hp
International ShippingNo
Ip Degree Of ProtectionIP20 conforming to IEC .
ItemPressure Switch
Item TypeElectromechanical press.
Lead TimeExpected to ship in 1-2.
Local Displaywithout
Made in USANo
Manual Switch ActionNone
ManufacturerSquare D, Schneider Ele.
Materialpolypropylene Cover || .
Materials In Contact Wi.nitrile (Buna-N) or equ.
Maximum Operating Rate10 cyc/mn
Mechanical Durability300000 cycles
Mercury FreeYes
Motor Power Kw0.75 kW 1 hp)115 V AC, .
Mpn9013FRG22J19
Nema Degree Of Protecti.NEMA 1 UL 50
NEMA Rating1
Net Weight1 lb(US)
Operating Cycles10 cyc/mn
Operating Positionany position
Operating Temperature-33-257 A Degrees F
Pressure ActuatorDiaphragm
Pressure Sensor Name9013FR
Pressure Sensor Size45 psi 10-45 psi)
Pressure Sensor Typeelectromechanical press.
Pressure Switch ActionReverse
Pressure Switch Applica.Water Pump
Pressure Switch Differe.6 to 20 psi, 6 - 20 PSI
Pressure Switch Electri.DPST
Pressure Switch Factory.22/16 psi
Pressure Switch Port Ty.(1) Port, 1/4 in FNPS, .
Pressure Switch Range4 - 45 PSI, 4 to 45 psi
Pressure Switch Type Of.regulation between 2 th.
Pressure Switch UnloaderNo
Process Connection0.25 inch NPSF internal.
Product CertificationsUL listed file E12158 |.
Product Specific Applic.control electrically dr.
Protective TreatmentNone
Quantity Per Set1
Range Of ProductSquare D Pumptrol
Reach RegulationReference contains Subs.
Repeat Accuracy+/- 3 %
Rohs Exemption Informat.Yes
Scale Typeadjustable differential
Series9013FRG
Settinginternal
Short-Circuit Protection20 A cartridge fuse gG
SKUZO-G3260381
Special FeaturesMercury Free; Green Pre.
StandardCE-UL 508-NSF ANSI 61 A.
StandardsUL 508, NEC Article 430.
Sub Brand9013FR
SubCategoryElectrical
Sustainable Offer StatusGreen Premium product
System Pressure45 psi 10-45 psi)
Temp. Range-22 Degrees to 257 Deg.
Terminal Block Type4 terminals
Terminals Description I.L2-T2 || L1-T1
Type Of Packingindividual
UPC785901000853
Value Of Setting22...16 psi
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Weight2.000000
Width2.78 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomindustrialrefrigerationparts.com9013FRG22J1944.241In StockSquare D2.044.24 @ 1
thumbzoomZoroG326038146.35151Square D0.846.35 @ 1
thumbzoomcappusa.com481018047.271In StockSquare D47.27 @ 1
thumbzoommidwestapplianceparts.com9013FRG22J19-SQ-P56.931In StockSquared56.93 @ 1
thumbzoomsustainablesupply.comC268185357.581In StockSquare D0.857.58 @ 1
thumbzoomAmazonSCB0078S4C8S60.251In StockSquare D60.25 @ 1
thumbzoomsimsupply.comZO-G326038160.8313Square D60.83 @ 1
thumbzoommayerelectric.comSQD9013FRG22J1961.091In StockSQUARE D1.061.09 @ 1
grainger.caGUS2FG9380.869304521In StockSQUARE D0.880.86930452 @ 1
thumbzoomcrescentelectric.com44453382.711In StockSquare D by Schneider Electric82.71 @ 1
thumbzoomkempstoncontrols.co.uk9013FRG22J19106.2823321In StockSchneider106.282332 @ 1
thumbzoomRaptor SuppliesAH2NUA115.63455151In StockSQUARE D115.6345515 @ 1
