mpn:
brand:
manufacturer:
MPN:
Description:
3.38 Inch W X 3.34 Inch D X 2.89 Inch H Size; 50/60 Hz Frequency Rating; UL, CUL, CSA, CE, NOM Approval; En 61558/01.89 Applicable Standard; 0.48 Inch L X 0.2 Inch W Slot Mounting; 100 VA (Ul/Csa/Nom/Ce) Power Rating; Screw Terminal Type
Weight:
6.75
Weight:
6.75 LB
Preferred Price:
251.18
Price:
251.18
Min Simple Price:
141.91
Absolute Min Price:
201.51
Min Price:
201.51
Dimensions:
[1.0, 1.0, 1.0]
qty:
1
simpleSku:
DA4NjE:::9070T100D5
sku:
DA4NjE::XF:9070T100D5@y0
condition:
11
seller:
mostelectric.com
amzMan:
square d
HazMat:
False
DropShip:
True
Attributes
| Key ^ | Value |
|---|---|
| Application | FSC1 |
| Approvals | CSA, UL |
| Brand, Manufacturer | Square D |
| Catalog Number, Item Number | 9070T100D5 |
| Condition | New |
| Country of Origin | Mexico |
| Depth | 3.34 in |
| Enclosed, Made in USA | No |
| Enclosure | OPEN |
| Enclosure Type | Open Device (Not Rated) |
| Estimated Lead Time (in days) | 4 |
| Family Series | Square D Transformers |
| Green Environmental Attribute | Mercury Free; Pvc Free |
| Gross Weight, Net Weight | 0 lbs |
| GTIN | 00785901905370 |
| GTIN, UPC | 785901905370 |
| Height | 2.89 in |
| Insulation Class | 55 |
| Insulation Max. Temp. | 105?C |

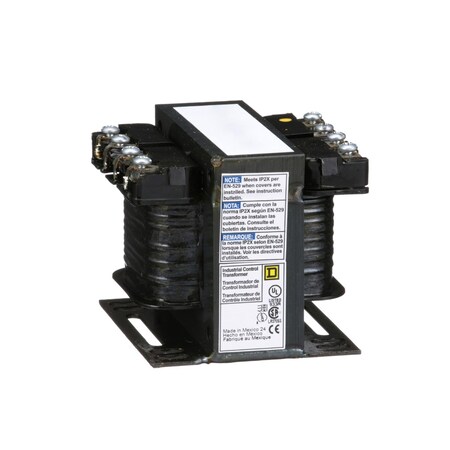

| Item | Transformer Control 100Va 600V120V |
| Item - Transformer | Control Transformer |
| Item Type, Transformer Type | Industrial Control Transformer |
| Manufacturer | Schneider Electric |
| Manufacturers Warranty Length | 1 yr |
| Mounting | Panel |
| Package Quantity, Phase, Phase - Electrical | 1 |
| Primary Connection, Secondary Connection | Screw clamp terminals |
| Primary Voltage | 600V OR 575V OR 550V, 550 V, 575 V, 600 V |
| RoHS | Yes |
| Secondary Voltage | 120V OR 115V OR 110V, 110 V, 115 V, 120 V |
| Special Features | INDUSTRIAL CONTROL TRANSFORMER,COPPER WINDING,SCREW CLAMP TERMINALS |
| Standard | UL LISTED, CSA, CE MARKED |
| Standards | CSA file LR37055 guide 184-N-90; UL listed file E61239 |
| Temp. Rise | 55?C |
| Temperature Rating | 55 DEGREES C |
| Temperature Rise (F) | 176 ?F |
| Termination | Screw Clamp |
| VA Rating, VA Rating - Transformer | 100 VA |
| Warranty Description | Contractual Warranty:18 months |
| Weight | 2.000000 |
| Width | 3.38 in |
| Winding Material - Transformer | Copper |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | mostelectric.com | 9070T100D5 | 141.91 | 141.91 | 1 | 1 | SQUARE D/TELEMECANIQUE | 141.91 @ Qty: 1+ | ||
 | sustainablesupply.com | C3045512 | 180.57 | 180.57 | 1 | In Stock | Square D | 3.89 | 180.57 @ Qty: 1+ | |
 | Zoro | G0851560 | 184.26 | 184.26 | 1 | In Stock | Square D | 3.89 | 184.26 @ Qty: 1+ | |
 | blackhawksupply.com | 9070T100D5 | 189.0 | 189.0 | 1 | In Stock | Square D | 189.0 @ Qty: 1+ | ||
 | industrialrefrigerationparts.com | 9070T100D5 | 201.1 | 201.1 | 1 | In Stock | Square D | 2.0 | 201.1 @ Qty: 1+ | |
 | Galco | 9070T100D5-SQD | 215.07 | 215.07 | 1 | In Stock | Square D | 215.07 @ Qty: 1+ | ||
 | Radwell | 9070T100D5 | 220.0 | 220.0 | 1 | 1 | SCHNEIDER ELECTRIC SQUARE D | 220.0 @ Qty: 1+ | ||
 | midwestapplianceparts.com | 9070T100D5-SQ-P | 230.61 | 230.61 | 1 | In Stock | Squared | 230.61 @ Qty: 1+ | ||
 | gordonelectricsupply.com | 9070T100D5 | 251.0 | 251.0 | 1 | In Stock | 10 | SQUARE D | 251.0 @ Qty: 1+ | |
| us.rs-online.com | 72196403 | 254.12 | 254.12 | 1 | In Stock | Square D | 254.12 @ Qty: 1+ | |||
 | crescentelectric.com | 80747 | 268.01 | 268.01 | 1 | In Stock | Square D | 268.01 @ Qty: 1+ | ||
 | Newark | 17B3000 | 277.5 | 277.5 | 1 | 1 | SQUARE D BY SCHNEIDER ELECTRIC | 277.5 @ Qty: 1+ |
