mpn:
brand:
manufacturer:
MPN:
Weight:
1.096875
Weight:
1.096875 LB
Preferred Price:
289.45
Price:
289.45
Min Simple Price:
163.63
Absolute Min Price:
232.19
Min Price:
232.19
Dimensions:
[9.0, 9.0, 7.0]
qty:
21
simpleSku:
jQzMDg:::9070T200D4
sku:
jQzMDg::M0:9070T200D4@y0
condition:
11
seller:
Zoro
amzMan:
square d/telemecanique
HazMat:
False
DropShip:
True
Attributes
| Key ^ | Value |
|---|---|
| Application, Product Compatibility | FSC1 |
| Brand | Square D |
| California Proposition 65 : WARNING: This product can expose you to chemicals including | Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Catalog Number | 9070T200D4 |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Country of Origin, Country of Origin (subject to change) | United States |
| Depth | 3.59 in, 4.0 in |
| Electrical Connection | screw clamp terminals |
| Enclosure Finish | Epoxy Resin Varnish |
| Enclosure, Enclosure Style - Transformer | Open |
| Environmental Disclosure | ENVPEP1308008EN |
| Eu Rohs Directive | Compliant |
| Fused | No |
| GTIN | 00785901322313 |
| Height | 3.7 in, 3.2 in |
| Hz | 50/60 |
| Hz - Electrical | 50 Hz, 60 Hz |
| Input Voltage | 277VAC |
| Input Voltage - Transformer | 277V AC |
| Insulation Class | 80 |
| Insulation Temperature | 130 ?C |

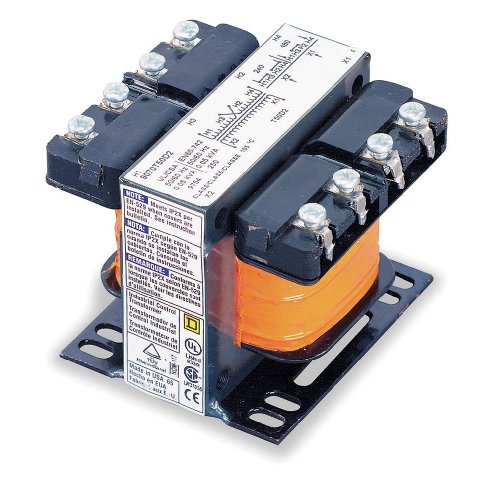

| Item Type, Product Or Component Type | Industrial Control Transformer |
| Item, Item - Transformer | Control Transformer |
| Made in USA, Mercury Free, Pvc Free, Rohs Exemption Information | Yes |
| Manufacturer | Schneider Electric |
| Manufacturers Warranty Length | 1 yr |
| Material | copper winding |
| Mounting | Panel |
| Mounting - Transformer | Foot |
| Nema Degree Of Protection | not rated (open device) |
| Output Voltage | 120VAC |
| Output Voltage - Transformer | 120V AC |
| Phase | 1 phase |
| Phase, Phase - Electrical | 1 |
| Primary Voltage | 277V |
| Product Certifications | CSA file LR37055 guide 184-N-90 || UL listed file E61239 |
| Protective Device | None |
| Range Of Product | T |
| Rated Power In Va, VA Rating - Transformer | 200 VA |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Secondary Voltage | 120V |
| Special Features | INDUSTRIAL CONTROL TRANSFORMER,COPPER WINDING,SCREW CLAMP TERMINALS |
| Standard | UL LISTED, CSA, CE MARKED |
| Standards | CE Marked, CSA Certified, NOM Certified, UL Listed |
| Sustainable Offer Status | Green Premium product |
| Temp. Rise, Temperature Rating | 80 Degrees C |
| Temperature Rise | 80 ?C |
| Transformer Type | Wire-Wound |
| UPC | 785901322313 |
| VA Rating | 200VA |
| Warranty | 10 Years |
| Warranty Description | Contractual Warranty:10 Years |
| Width | 4.1 in, 3.75 in |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | Zoro | G6380184 | 163.63 | 163.63 | 1 | In Stock | 26 | Square D | 17.55 | 163.63 @ Qty: 1+ |
| Grainger | 22LR67 | 263.5 | 263.5 | 1 | 13 | 0 | SQUARE D | 263.5 @ Qty: 1+ | ||
 | sustainablesupply.com | C2682059 | 318.9 | 318.9 | 1 | In Stock | Square D | 17.55 | 318.9 @ Qty: 1+ | |
| us.rs-online.com | 72195472 | 350.69 | 350.69 | 1 | In Stock | Square D | 350.69 @ Qty: 1+ | |||
 | Newark | 18C0077 | 402.62 | 402.62 | 1 | In Stock | SQUARE D BY SCHNEIDER ELECTRIC | 402.62 @ Qty: 1+ | ||
 | mayerelectric.com | SQD9070T200D4 | 427.68 | 427.68 | 1 | In Stock | SQUARE D | 427.68 @ Qty: 1+ | ||
 | crescentelectric.com | 332915 | 430.77 | 430.77 | 1 | In Stock | Square D | 430.77 @ Qty: 1+ | ||
 | Raptor Supplies | AF7RZQ | 500.5728 | 500.5728 | 1 | In Stock | SQUARE D | 500.5728 @ Qty: 1+ |
