CAI - SQUARE D 9080LBA162104

B07GTH9ZMV

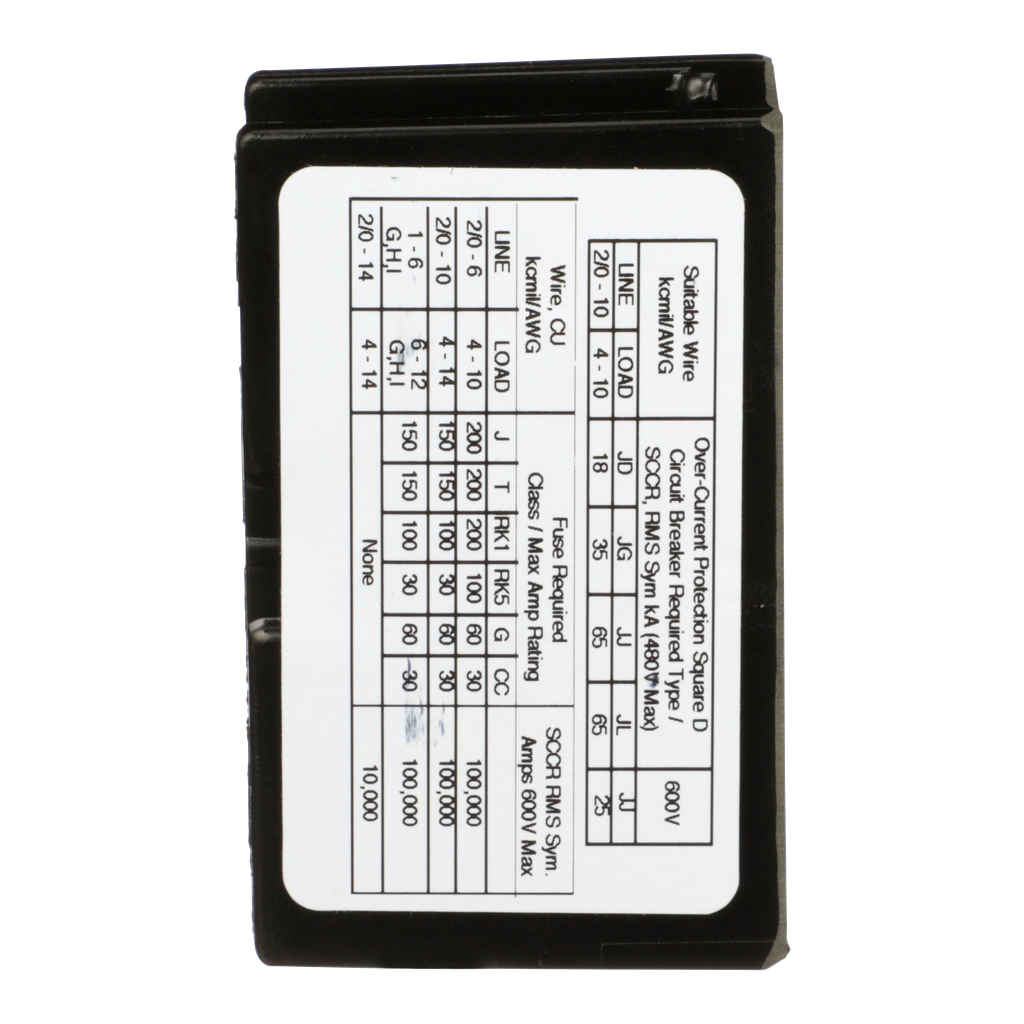

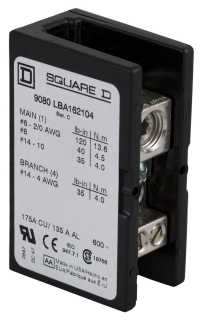

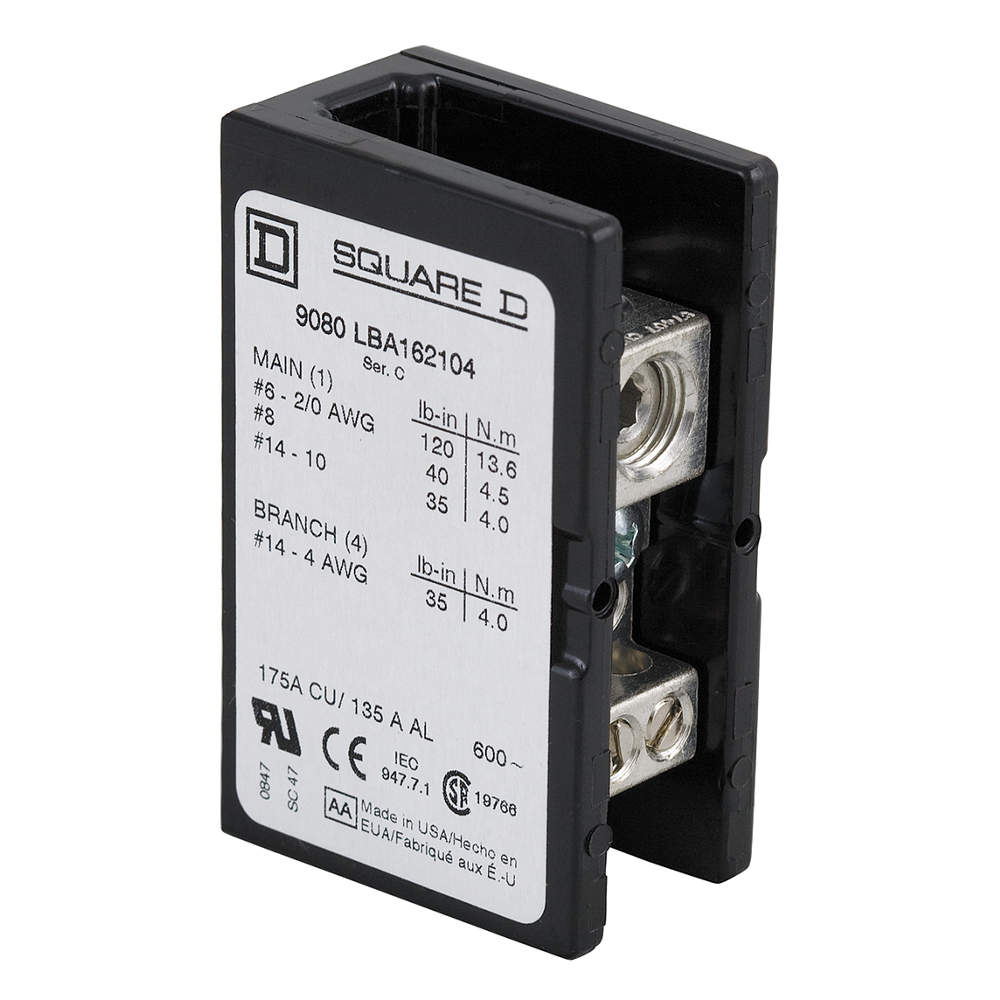

Power Distribution Block, 175 Max. Amps, Number of Poles: 1, Primary Wire Range (AWG): 14 to 2/0 AWG

Power Distribution Block, 175 Max. Amps, Number of Poles: 1, Primary Wire Range (AWG): 14 to 2/0 AWGzoom

Attributes

Key Value
[Ics] Rated Service Bre.100 kA UL 508 A
[Ue] Rated Operational .600 V AC/DC
Ambient Air Temperature.-40-302 ?F
Amperage Rating175A
Application9080LB,9080LB21
BrandSquare D, Square D by S.
California Proposition .Lead and lead compounds.
Catalog Number9080LBA162104
CategoryConnectors, Interconnec.
China Rohs RegulationPro-active China RoHS d.
ConnectionTin plated aluminium lu.
Connections - Terminalsline lug 40 lbf.in AWG .
Country of OriginUnited States, US - Uni.
Current Rating175 A
Current Rating (Amps)175 A
Current Stock7
Depth1.78 in
DescriptionPWR DISTR BLK 600V 175A
Detailed Description1 Pole Power Distributi.
Digi-Key Part Number4008-9080LBA162104-ND
ECCNEAR99
Electrical Connectiontin plated aluminium lu.
Eu Rohs DirectiveCompliant
For Conductor MaterialAluminum, Copper
For Line Aluminum Wire .2/0 AWG
For Line Aluminum Wire .14 AWG
For Line Copper Wire Si.2/0 AWG
For Line Copper Wire Si.14 AWG
For Load Aluminum Wire .4 AWG
For Load Aluminum Wire .14 AWG
For Load Copper Wire Si.4 AWG
For Load Copper Wire Si.14 AWG
Height2.88 in
Housing MaterialPhenolic
International ShippingNo
ItemPower Distribution Block
Item TypePower Distribution Bloc.
Length2.88 in
Length (Straight Wirewa.2.88 in
Line Connections/Pole1
Line Rated Current175-175 A copper || 135.
Line Side Connection Ty.Screw Connection, Lug
Line Side Connections P.1
Line Side Wire Size Ran.14 AWG - 2/0 AWG
Line Side Wire/Stud Size2/0-14 AWG
Load Connections/Pole4
Load Side Connection Ty.Screw Connection, Lug
Load Side Connections P.4
Load Side Wire/Stud Size4-14 AWG
Made in USAYes
ManufacturerSchneider Electric
Manufacturer Product Nu.9080LBA162104
Manufacturer Standard L.1 Weeks
MaterialPhenolic block
Material : phenolicblock
Max. Amps175 A
Maximum Current - Alumi.135 A
Maximum Current - Coppe.175 A
Maximum Operating Tempe.302 Degrees F
Maximum Voltage600V AC/DC
Mercury FreeYes
MfrSchneider Electric
Minimum Operating Tempe.-40 Degrees F
MountingSurface
Mounting Supportsurface mount
Mounting Typesurface mount
Mpn9080LBA162104
Number Of Cablesline 2 , AWG 14...AWG 2.
Number of Circuits1
Number of Poles1
Number Of Poles1
Number Of Terminals1 line || 4 load
Overall Depth1.78 in
Overall Length2.88 in
Overall Width1.13 in
PackageBox
Power Distribution Bloc.Open
Primary Connections/Pole1
Primary TypePower Distribution
Primary Wire Range14 to 2/0 AWG
Primary Wire Range (AWG)14 to 2/0 AWG
Product CertificationsUL recognized E60616 CC.
Product Compatibility9080LB21
Product Or Component Ty.Power Distribution Block
Product StatusActive
Range Of Product9080LB
Reach Free Of SvhcYes
Reach RegulationFree of Substances of V.
RoHS CompliantYes
Rohs Exemption Informat.Yes
Secondary Connection/Po.4
Secondary Wire Range14 to 4 AWG
Secondary Wire Range (A.14 to 4 AWG
SeriesSquare D, 9080 Series
Short-Circuit Current65 kA
Size1.13 IN,1.78 IN,2.88 IN
SKUZO-G3546776
Special Features18 Months Warranty, Sur.
StandardUL RECOGNIZED E60616 CC.
StandardsCE Marked, CSA File 703.
SubCategoryElectrical
Terminal MaterialAluminum
Toxic Heavy Metal FreeYes
TypePower Distribution Block
UNSPSC39121410
UPC785901097303
UPC Code785901097303
Voltage - Rated600 V
Voltage Rating600 V AC/DC
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Width1.13 in
Wire SizeLine 2, AWG 14...AWG 2/.
Wire Strip LengthLine 0.5 in; Load 0.44 .
Wire Stripping Length :.0.75 in for bottom conn.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomgordonelectricsupply.com9080LBA16210429.091In Stock10SQUARE D29.09 @ 1
thumbzoomDigi-Key1715739330.321In StockSchneider Electric30.32 @ 1
thumbzoommayerelectric.comSQD9080LBA16210430.481In StockSQUARE D30.48 @ 1
thumbzoomZoroG354677630.95154Square D0.2230.95 @ 1
Graybar9009524335.761611Square D (Schneider Electric)35.7616 @ 1
thumbzoomsustainablesupply.comC121275436.821In StockSquare D0.2236.82 @ 1
thumbzoomNewark17B334537.121In StockSQUARE D BY SCHNEIDER ELECTRIC37.12 @ 1
thumbzoommostelectric.com9080LBA16210438.111In StockSQUARE D/TELEMECANIQUE38.11 @ 1
grainger.caSQD9080LBA16210440.39110391In StockSQUARE D0.2240.3911039 @ 1
thumbzoomcrescentelectric.com3658243.1113Square D by Schneider Electric43.11 @ 1
us.rs-online.com7040569844.0718Square D44.07 @ 1
thumbzoomsimsupply.comZO-G354677646.781In StockSquare D46.78 @ 1
thumbzoomRaptor SuppliesAG7FWC55.3535191In StockSQUARE D55.353519 @ 1
thumbzoomNational Supply Network6952830556.861In StockSquare D56.86 @ 1
