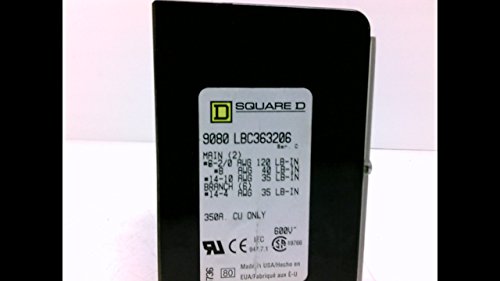

Square D B251804-9080 LBC363206

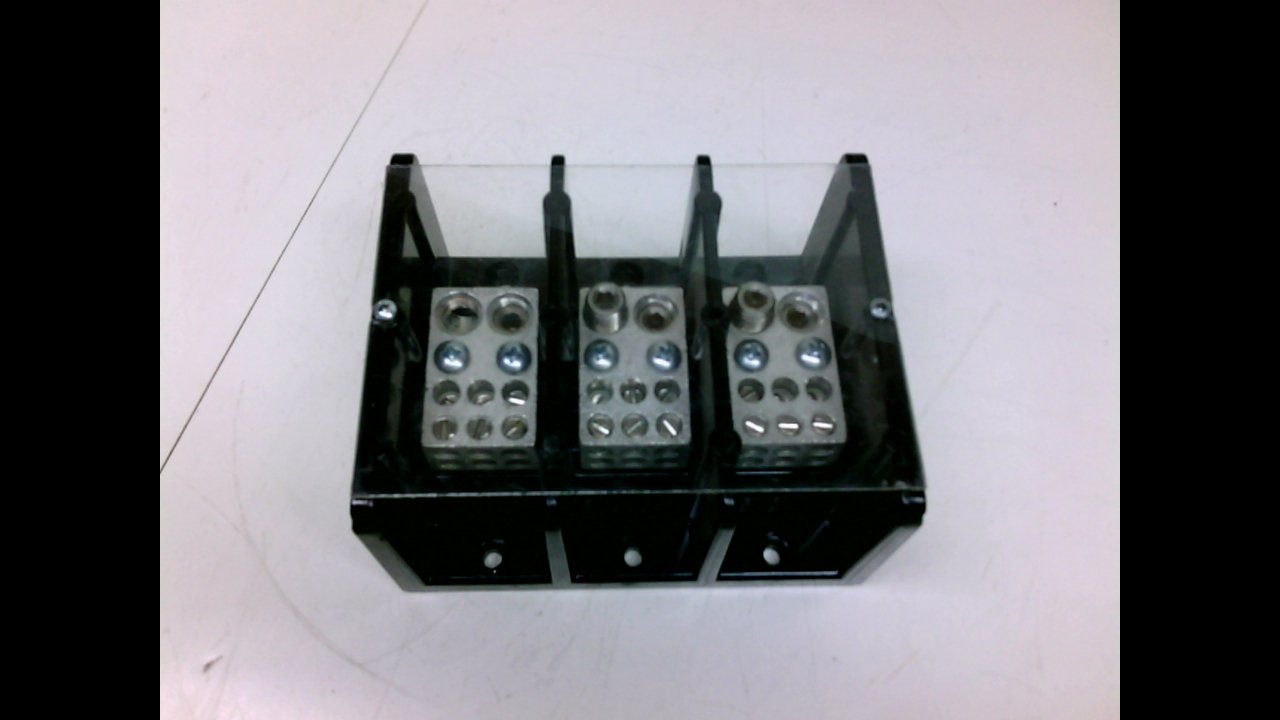

Square D by Schneider Electric 9080 open power distribution blocks available in a wide variety of sizes, these NEMA open power distribution blocks are available in one, two, and three pole versions with either aluminum or copper lugs. Many blocks have been tested to achieve SCCR up to 100 kA. They are UL component recognized, CSA certified, RoHS compliant, and CE marked. A selection of covers completes this family. Product Specification Amperage Rating 350-350 A COPPER Application 9080LB, 9080LB33 Brand 9080LB Catalog Description Square D, POWER DISTRIBUTION BLOCK 600V 350A, (2)#14 to #2/0 AWG (6)#14 to #4 AWG, 3-Pole, 350A Copper Only, 600 V AC, 9080LB, 9080LB33, General Purpose Phenolic, Lugs Tin Plated Copper, Power Distribution Block Connection LINE LUG 40 AWG 8 COPPER-LINE LUG 35 AWG 14...AWG 10 COPPER-LINE LUG 120 AWG 6...AWG 2/0 COPPER-LOAD LUG 35 AWG 14...AWG 4 COPPER, TIN PLATED COPPER LUGS 00785901097549 Height 3.1000 Height Unit IN Item Status A Length 5.3000 Length UOM IN Material PHENOLIC BLOCK Mfr. # 9080LBC363206 Mounting SURFACE MOUNT Number Of Terminals 2 LOAD-6 LINE Size 2.61 IN, 4 IN, 5 IN Special Features LUGS TIN PLATED COPPER, PHENOLIC BLOCK Standard CE-CSA FILE 70361 CLASS 6228 01-UL RECOGNIZED E60616 CCN XCFR2 Type 9080LB33, POWER DISTRIBUTION BLOCK Voltage Rating 600 Width 4.3000 Width UOM IN Wire Size LINE 2 , AWG 14...AWG 2/0, COPPER-LOAD 6 , AWG 14...AWG 4, COPPER
