CAI - SQUARE D EDB14020SA

B07J2VR2KN

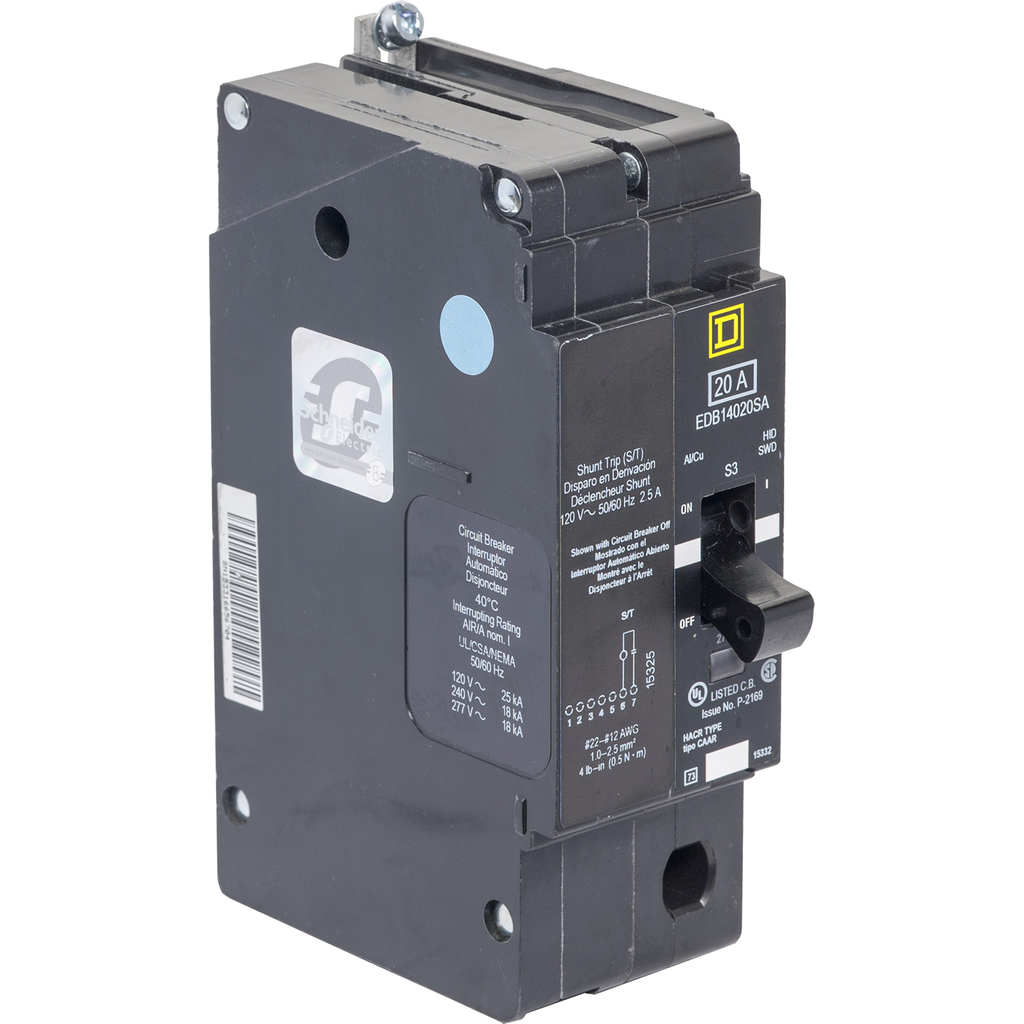

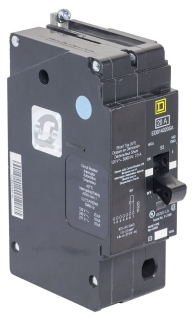

Square D Bolt On Circuit Breaker, 20 Amps, Number of Poles: 1, 277VAC AC Voltage Rating

Square D Bolt On Circuit Breaker, 20 Amps, Number of Poles: 1, 277VAC AC Voltage Ratingzoom

Attributes

Key Value
[Ue] Rated Operational .277 V AC
AC Voltage Rating277V AC
Actuator TypeToggle
Ambient Air Temperature.40 ?C
Amperage20
Amperage Rating20
Amps20 A
ApplicationHID rated;HACR rated;Sw.
ApprovalCULus, IEC, UL, CSA
Awg GaugeAWG 12...AWG 6 aluminiu.
AWG RangeAWG 12...AWG 6 aluminiu.
BrandSquare D, Square D by S.
Breaking Capacity18 kA 277 V AC || 18 kA.
Breaking Capacity CodeD
Catalog NumberEDB14020SA
China Rohs RegulationProduct out of China Ro.
Circuit Breaker ActuatorToggle
Circuit Breaker Applica.HID rated || HACR rated.
Circuit Breaker Mountin.Bolt On
Circuit Breaker TypeShunt Trip
ConnectionLugs aluminium;AWG 12...
Connection TypeBolt-On
Country of Origin00 - Unknown, Mexico
Current Rating20A, 20 A
DC Voltage RatingNot Rated
Depth4.05 in., 4.05 in
Device CompositionShunt Trip
Device Short NameEDB
ECCNEAR99
Electrical Connectionlugs aluminium
Eu Rohs DirectiveCompliant
FeaturesMercury Free
For Use WithSquare D NF Panelboard,.
FrameE-Frame
Frame Size125A/EDB
FunctionsLong Time and Instantan.
Gtin785901335115
Height5.66 in, 5.66 in., 5.66
Height UOMInch
Holding Current270 A
Interrupt Rating18 kA at 277/240/120V A.
Interrupting Rating18kA at 120/240VAC
ItemMiniature Circuit Break.
Item Typeminiature circuit-break.
Length5.66 in, 4.05
Length (Straight Wirewa.5.66 in
Length UOMInch
Line Rated Current20 A
Local Signallingtrip indicator
Made in USANo
ManufacturerSchneider Electric
Max. AIR Rating18kA at 120/240V AC
Max. Wire Size6 AWG
Mercury FreeYes
Min. Wire Size12 AWG (Al), 14 AWG (Cu)
Module TypeE-Frame
MountingBolt On
Mounting ModeBolt-On
Mounting TypeBolt-On
MpnEDB14020SA
Net Weight2 lb(US)
No. of Spaces2
Number of Poles1
Number Of Poles1
Number Of Spaces2
Number Of Spaces Requir.2
Operating Temperature40 A Degrees C
Phase1
Poles1
Product CertificationscULus || IEC
Product DestinationNF panelboard
Product Or Component Ty.miniature circuit-break.
ProtectionThermal Magnetic
Protection Typeshort-circuit || overlo.
Range Of Product125 A Frame EDB-EGB-EJB
Rated Voltage277V AC
Reach RegulationReference contains Subs.
Rohs Exemption Informat.Yes
SeriesEDB
Special Featurestrip indicator
StandardCULUS-IEC
StandardscULus, IEC, RoHS
Sub BrandEDB
Temperature Rating104?F (40?C)
Terminal ConnectionLug
Tightening Torque3.4-3.4 N.m 2.5-16 mm? .
Torque3.4-3.4 N.m 2.5-16 mm? .
Trip Range875 AMPS
Trip Typethermal-magnetic
Trip Unit Rating875-875 A
Trip Unit Technologythermal-magnetic
UNSPSC39121603
UPC785901335115
Voltage277VAC
Voltage Rating277 V AC
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Width1.96, 1.96 mm, 1.96 in
Width UOMInch
Wire GaugeAWG 12 to AWG 6 Aluminu.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomsuperbreakers.comEDB14020SA570.01In StockSquare D570.0 @ 1
thumbzoomZoroG2238826743.771In Stock55Square D1.78743.77 @ 1
thumbzoomgordonelectricsupply.comEDB14020SA795.01In Stock10SQUARE D795.0 @ 1
thumbzoommayerelectric.comSQDEDB14020SA875.71In StockSQUARE D2.0875.7 @ 1
us.rs-online.com71536516883.9711Square D883.97 @ 1
Newark17C7571884.871In StockSQUARE D BY SCHNEIDER ELECTRIC884.87 @ 1
thumbzoomcrescentelectric.com44154946.281In StockSquare D by Schneider Electric946.28 @ 1
Grainger2JWC8958.01In Stock16SQUARE D958.0 @ 1
thumbzoomsustainablesupply.comC11808851006.331In StockSquare D1.781006.33 @ 1
Graybar971903521230.19681In StockSquare D (Schneider Electric)1230.1968 @ 1
