Schneider Electric EDB14030

B007IA4Z7E

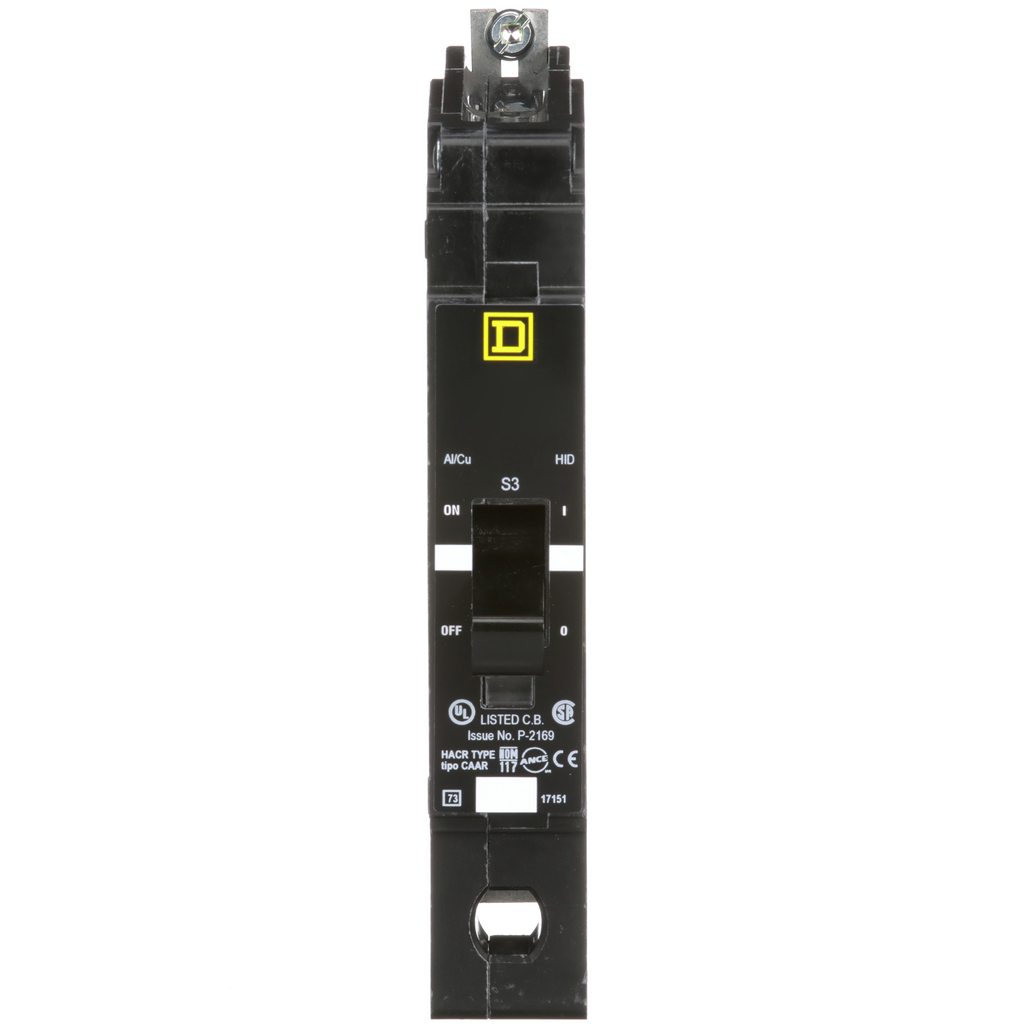

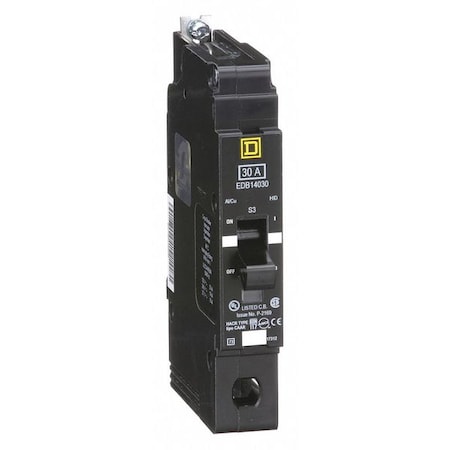

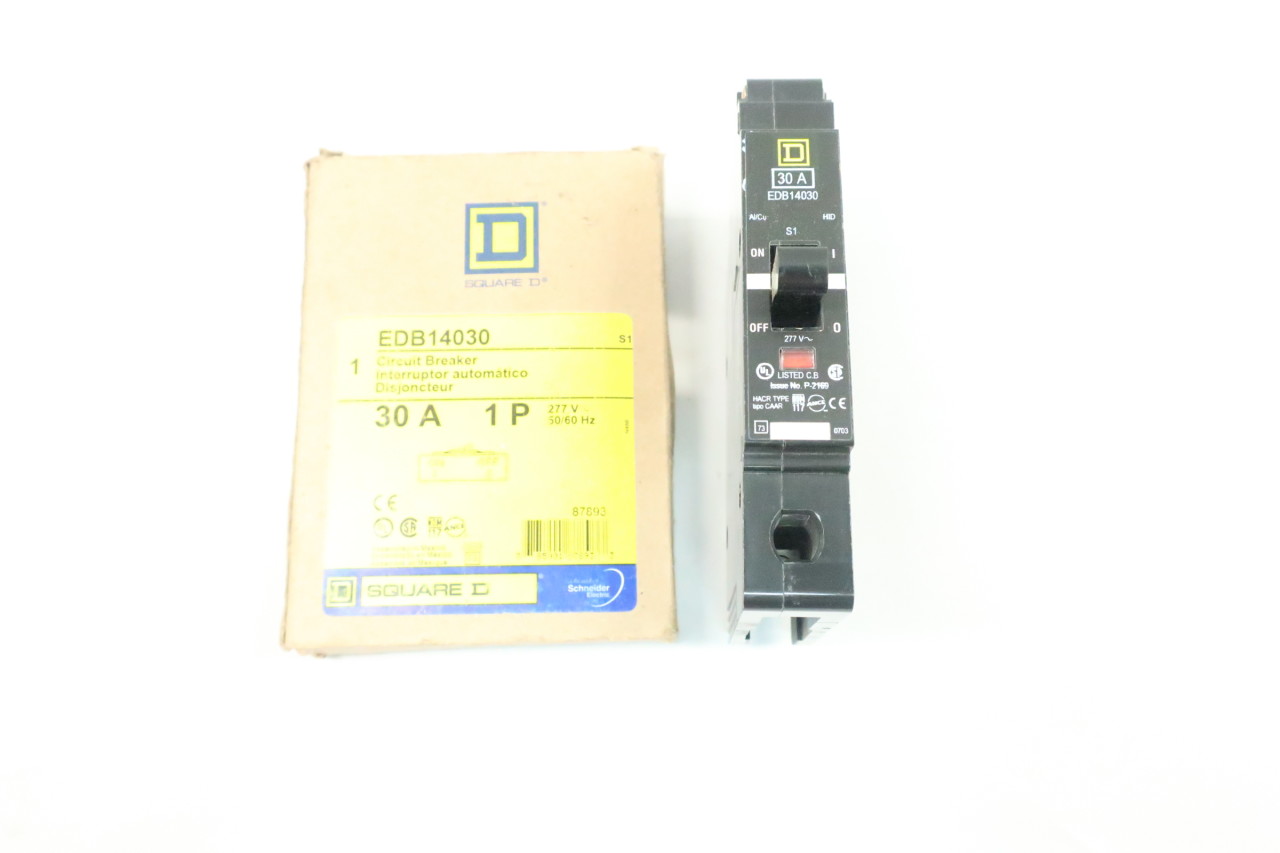

SCHNEIDER ELECTRIC 277-VOLT 30-AMP EDB14030 Miniature Circuit Breaker 277V 30A, Black

SCHNEIDER ELECTRIC 277-VOLT 30-AMP EDB14030 Miniature Circuit Breaker 277V 30A, Blackzoom

Attributes

Key Value
[Ue] Rated Operational .277 V AC
AC Voltage Rating277V AC
Ambient Air Temperature.40 ?C
Amperage30A
Amperage Rating30
Amps30 A
ApplicationHID rated;HACR rated; N.
ApprovalUL Listed, CSA Certifie.
Awg GaugeAWG 12...AWG 6 aluminiu.
AWG RangeAWG 12...AWG 6 aluminiu.
BrandSquare D, Square D by S.
Breaking Capacity18 kA 277 V AC || 18 kA.
Breaking Capacity CodeD
Catalog NumberEDB14030
China Rohs RegulationProduct out of China Ro.
Circuit Breaker ActuatorToggle
Circuit Breaker Applica.HID rated || HACR rated
Circuit Breaker Mountin.Bolt On, Bolt-On
Circuit Breaker TypeStandard
ColorBlack
Compatible Panelboard/L.NF
ConnectionLugs aluminium;AWG 12...
Country of OriginMX - Mexico, Mexico
Current Rating30A, 30 A
Current Stock9
DC Voltage RatingNot Rated
Depth4.05 in., 4.05 in
Device Short NameEDB
ECCNEAR99
Electrical Connectionlugs aluminium
Eu Rohs DirectivePro-active compliance (.
For Use WithSquare D NF Panelboards
FrameE-Frame
Frame Size125A/EDB
Frame TypeE-Frame
Gtin785901878933
Height5.66 in, 5.66 in., 5.66
Height UOMInch
Holding Current270 A
International ShippingNo
Interrupt Rating18KA, 18 kA
ItemMiniature Circuit Break.
Item Typeminiature circuit-break.
Lead TimeExpected to ship in 1-2.
Length5.66 in, 4.05
Length (Straight Wirewa.5.66 in
Length UOMInch
Line Rated Current30 A
Local Signallingtrip indicator
Made in USANo
ManufacturerSchneider Electric
Max. AIR Rating18 kA at 120/240V AC, 1.
Max. Operating Temp.104 Degrees F
Max. Wire Size6 AWG
Mercury FreeYes
Min. Wire Size12 AWG (Al), 14 AWG (Cu)
Module TypeE-Frame
MountingBolt On
Mounting ModeBolt-On
Mounting TypeBolt-On
MpnEDB14030
Net Weight2 lb(US)
No. of Spaces1
Number of Poles1
Number Of Poles1
Number Of Spaces1
Number Of Spaces Requir.1
Operating Temperature40 A Degrees C
Phase1, Single
Poles1
Product CertificationsIEC || cULus
Product DestinationNF panelboard
Product Or Component Ty.miniature circuit-break.
Protection Typeoverload || short-circu.
Range Of Product125 A Frame EDB-EGB-EJB
Rated Voltage277V AC
Reach RegulationReference contains Subs.
Rohs Exemption Informat.Yes
SeriesEDB, EDB Series
SKUZO-G1131636
Special Featurestrip indicator
StandardUL LISTED - CSA CERTIFI.
StandardsIEC, cULus, cULus, IEC
Sub BrandEDB
SubCategoryElectrical
Terminal ConnectionLug
Tightening Torque3.4-3.4 N.m 2.5-16 mm? .
Torque3.4-3.4 N.m 2.5-16 mm? .
Trip Range875 AMPS
Trip Typethermal-magnetic, Therm.
Trip Unit Rating875-875 A
Trip Unit Technologythermal-magnetic
UNSPSC39121603
Upc785901878933
UPC785901878933
UPC Code785901878933
Voltage277VAC, 277
Voltage Rating277 V AC
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Width0.98 in, 0.98, 0.98 mm
Width UOMInch

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomNRI IndustrialD62680629.941In StockSQUARE D29.94 @ 1
simplybreakers.comEDB1403079.991In StockSchneider Electric79.99 @ 1
thumbzoomsuperbreakers.comEDB14030104.41In StockSquare D104.4 @ 1
thumbzoomZoroG1131636115.99143Square D1.05115.99 @ 1
thumbzoomRaptor SuppliesAG6QBK116.86363651In StockSQUARE D116.8636365 @ 1
standardelectricsupply.com2262321123.041In StockSquare D123.04 @ 1
thumbzoomgordonelectricsupply.comEDB14030123.091In Stock10SQUARE D123.09 @ 1
Graybar96058948125.081616Square D (Schneider Electric)125.0816 @ 1
thumbzoomsimsupply.comZO-G1131636137.3719Square D137.37 @ 1
thumbzoomsustainablesupply.comC1195361144.441In StockSquare D1.05144.44 @ 1
thumbzoommayerelectric.comSQDEDB14030145.14124SQUARE D2.0145.14 @ 1
thumbzoomcrescentelectric.com95215156.841In StockSquare D by Schneider Electric156.84 @ 1
us.rs-online.com70405624160.8811Square D160.88 @ 1
Newark15B7689174.741In StockSQUARE D BY SCHNEIDER ELECTRIC174.74 @ 1
thumbzoommostelectric.comEDB14030175.681In StockSQUARE D/TELEMECANIQUE175.68 @ 1
thumbzoomNational Supply Network69660892210.611In StockSquare D210.61 @ 1
grainger.caSQDEDB14030231.198243241In StockSQUARE D1.05231.19824324 @ 1
