Schneider Electric EDB14035

B00CONPN08

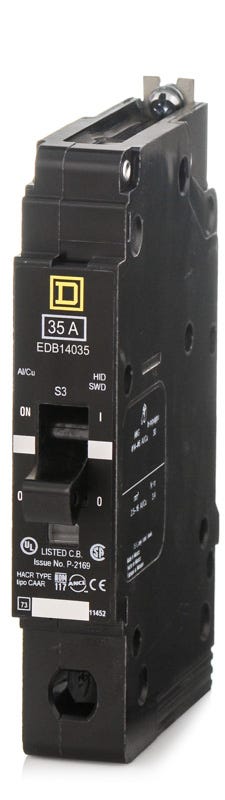

SCHNEIDER ELECTRIC 277-VOLT 35-AMP EDB14035 Miniature Circuit Breaker 277V 35A

SCHNEIDER ELECTRIC 277-VOLT 35-AMP EDB14035 Miniature Circuit Breaker 277V 35Azoom

Attributes

Key Value
AC Voltage Rating277V AC
Amperage Rating35
Amps35 A
ApplicationHID rated Applications,.
AWG RangeAWG 12...AWG 2/0 alumin.
BrandSchneider Electric, Squ.
Catalog NumberEDB14035
Circuit Breaker ActuatorToggle
Circuit Breaker Mountin.Bolt On, Bolt-On
Circuit Breaker TypeStandard
Compatible Panelboard/L.NF
ConnectionLugs aluminium;AWG 12...
Contactor TypeMagnetic
Country of OriginMX - Mexico, Mexico
Current Rating35 A, 35A
DC Voltage RatingNot Rated
Depth4.05 in., 4.05 in
ECCNEAR99
FeaturesMercury Free
For Use WithSquare D NF Panelboards
FrameE-Frame
Frame Size125A/EDB
Frame TypeE-Frame
Gtin785901335122
Height5.66 in, 5.66 in., 5.66
Height UOMInch
Interrupt Rating18 KA 277 V AC-18 KA 24.
ItemMiniature Circuit Break.
Item TypeMiniature circuit-break.
Length5.66 in, 4.05
Length (Straight Wirewa.5.66 in
Length UOMInch
Made in USANo
ManufacturerSchneider Electric
Max. AIR Rating18 kA at 120/240V AC, 1.
Max. Operating Temp.104 Degrees F
Max. Wire Size2 AWG
Min. Wire Size12 AWG (Al), 14 AWG (Cu)
MountingBolt On
Mounting TypeBolt-On
MpnEDB14035
No. of Spaces1
Number of Poles1
Operating Temperature40 A Degrees C
Phase1, Single
Poles1
Rated Voltage277V AC
SeriesEDB, EDB Series
Special FeaturesTrip indicator
StandardCULUS-IEC
StandardscULus, IEC
Sub BrandEDB
Terminal ConnectionLug
Torque3.9-3.9 N.m 2.5-6 mm? (.
Trip Range1800 AMPS
Trip TypeThermal-magnetic
UNSPSC39121603
UPC785901335122
Upc785901335122
UPC Code785901335122
Voltage277
Voltage Rating277 V AC
Warranty DescriptionContractual Warranty:18.
Width0.98 in, 0.98, 0.98 mm
Width UOMInch

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomsuperbreakers.comEDB1403543.911In StockSchneider Electric43.91 @ 1
simplybreakers.comEDB1403563.991In StockSchneider Electric63.99 @ 1
Graybar97273053125.08161In StockSquare D (Schneider Electric)125.0816 @ 1
thumbzoomRaptor SuppliesAF9HKZ131.0875021In StockSQUARE D131.087502 @ 1
thumbzoomZoroG1818966131.991In StockSquare D1.08131.99 @ 1
thumbzoomgordonelectricsupply.comEDB14035132.091In Stock10SQUARE D132.09 @ 1
thumbzoomcrescentelectric.com8965156.841In StockSquare D by Schneider Electric156.84 @ 1
us.rs-online.com70405715163.5212Square D163.52 @ 1
thumbzoomsustainablesupply.comC1180938172.221In StockSquare D1.08172.22 @ 1
thumbzoommostelectric.comEDB14035175.6811SQUARE D/TELEMECANIQUE175.68 @ 1
Newark17C7572179.291In StockSQUARE D BY SCHNEIDER ELECTRIC179.29 @ 1
grainger.caSQDEDB14035273.527249161In StockSQUARE D1.08273.52724916 @ 1
